Part Number # XT1HU3007MFF000XXX
SKU # 2358901
Image Disclaimers Message
XT1HU3007MFF000XXX

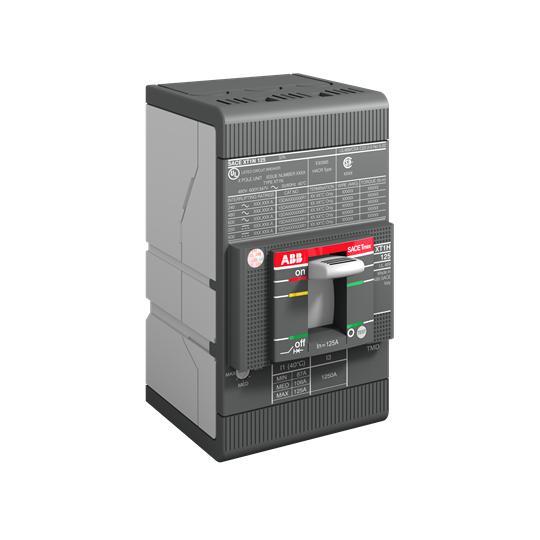

ABB XT1HU3007MFF000XXX Molded Case Circuit Breaker
Part Number # XT1HU3007MFF000XXX
SKU # 2358901
$332.58 / Each
Typical price:$1094.43 / Each
ABB XT1HU3007MFF000XXX Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | XT1HU3007MFF000XXX |
| SKU #: | 2358901 |
| Amperage Rating: | 7, 7 A |
| Dimensions: | 5.12 in H x 3 in W x 2.75 in D |
| Frame: | XT1 125 A, XT1 125A |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 25, 25 kA |
| Number of Poles: | 3 |
| Series: | Tmax XT |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Trip Range: | 21 to 77, 21 to 77 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Low Voltage |
| Connection type: | Front Line/Load Side |
| Country of origin: | IT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121616 |
| UPC: | 08015644787028 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$332.58 / Each
Typical price:$1094.43 / Each
Quantity:
- ABB, XT1HU3007MFF000XXX, Molded Case Circuit Breaker, Low Voltage, Series: Tmax XT, 600Y/347/690 VAC, 7 A, 50/60 Hz Frequency, 25 kA Interrupt, XT1 125A Frame, Thermal Magnetic Trip, 21 to 77 A Trip, 3 Pole, Front Line/Load Side Connection, Double Insulated Insulation, -13 to 158 deg F, 5.12 in H x 3 in W x 2.75 in D Dimensions
XT1HU3007MFF000XXX Application
For all distribution levels from the main low voltage switchboard to the sub-switchboards in the installationXT1HU3007MFF000XXX Item Features
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
- Frame XT1 to 125A, 600Y/347 V (UL)/160 A, 690 V (IEC) thermal magnetic protection
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
- Motor circuit protector trip unit
XT1HU3007MFF000XXX Standards
RoHs, CSA, cUL, CE, GOSTSKU #2358901Part Number #XT1HU3007MFF000XXXUNSPSC39121616UPC08015644787028
