ABB XT1NU3025AFF000XXX Molded Case Circuit Breaker
Part Number # XT1NU3025AFF000XXX
SKU # 2322772
ABB XT1NU3025AFF000XXX Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | XT1NU3025AFF000XXX |
| SKU #: | 2322772 |
| UNSPSC: | 39121616 |
| UPC: | 08015644785031 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB XT1NU3025AFF000XXX Molded Case Circuit Breaker
Brand: ABB
Part Number: XT1NU3025AFF000XXX
ABB, XT1NU3025AFF000XXX, Molded Case Circuit Breaker, Low Voltage, Series: Tmax XT, 600Y/347/690 VAC, 25 A, 50/60 Hz Frequency, 18 kA Interrupt, XT1 125A Frame, Thermal Magnetic Trip, 25 to 500 A Trip, 3 Pole, Front Line/Load Side Connection, Double Insulated Insulation, -13 to 158 deg F, 5.12 in H x 3 in W x 2.75 in D Dimensions
Additional Description: ABB -XT1NU3025AFF000XXX XT1N 125 TMF 25-500 3P F F UL/CSA
Catalog Description: XT1N 125 TMF 25-500 3p F F UL/CSA
XT1NU3025AFF000XXX Application
For all distribution levels from the main low voltage switchboard to the sub-switchboards in the installationXT1NU3025AFF000XXX Item Features
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
- 18 kA normal breaking capacity
- Frame XT1 to 125A, 600Y/347 V (UL)/160 A, 690 V (IEC) thermal magnetic protection
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
XT1NU3025AFF000XXX Standards
RoHs, CSA, cUL, CE, GOSTSKU #2322772Part Number #XT1NU3025AFF000XXXUNSPSC39121616UPC08015644785031

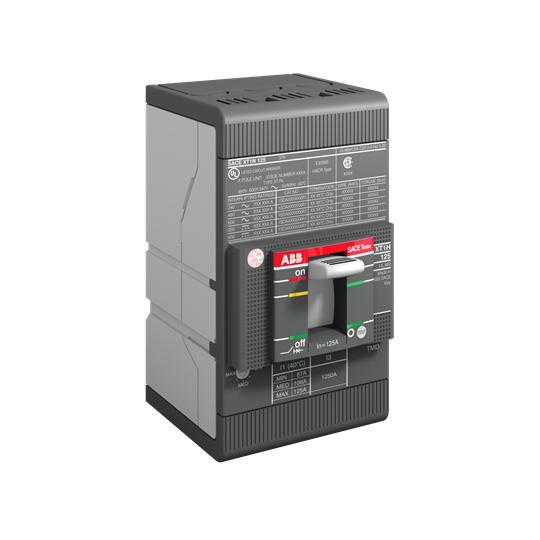

Image provided may only be a representation of final product and may include optional equipment
