Part Number # XT2LU3050AFF000XXX
SKU # 2450315
XT2LU3050AFF000XXX
ABB XT2LU3050AFF000XXX
Part Number # XT2LU3050AFF000XXX
SKU # 2450315
ABB XT2LU3050AFF000XXX Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | XT2LU3050AFF000XXX |
| SKU #: | 2450315 |
| UNSPSC: | 39121616 |
| UPC: | 08015644788001 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB XT2LU3050AFF000XXX
Brand: ABB
Part Number: XT2LU3050AFF000XXX
ABB Molded Case Circuit Breaker, Low Voltage, Series: Tmax XT, 600/690 VAC, 50 A, 50/60 Hz Frequency, 35 kA Interrupt, XT2 125A Frame, Electronic/Fixed Thermal Magnetic Trip, 50 to 500 A Trip, 3 Pole, Front Line/Load Side Connection, Double Insulated Insulation, -13 to 158 deg F, 5.12 in H x 3.54 in W x 3.25 in D Dimensions
Additional Description: ABB -XT2LU3050AFF000XXX XT2L 125 TMF 50-500 3P F F UL/CSA
Catalog Description: C.BREAKER TMAX XT2L 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 50-500 A
XT2LU3050AFF000XXX Application
For all distribution levels from the main low voltage switchboard to the sub-switchboards in the installationXT2LU3050AFF000XXX Item Features
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- Frame XT2 to 125 A, 600 V (UL)/160 A (IEC), 690 V thermal magnetic and electronic protection
- F front terminals, no lugs installed on line and load side termination (top/bottom)
XT2LU3050AFF000XXX Standards
UL Listed|CSA Certified|IEC CertifiedSKU #2450315Part Number #XT2LU3050AFF000XXXUNSPSC39121616UPC08015644788001

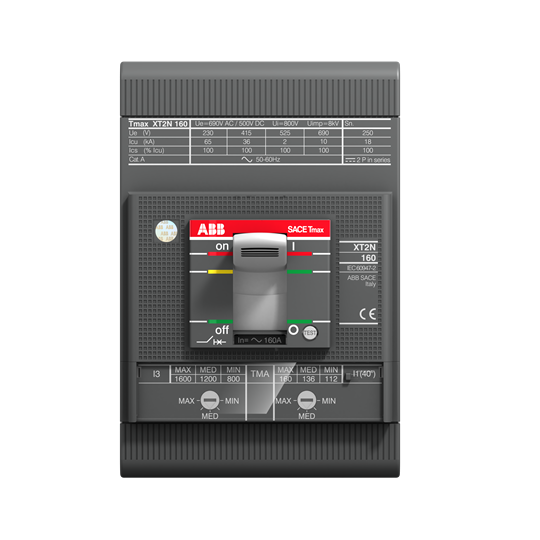

Image provided may only be a representation of final product and may include optional equipment
