XT3NU4200AFF000XXX

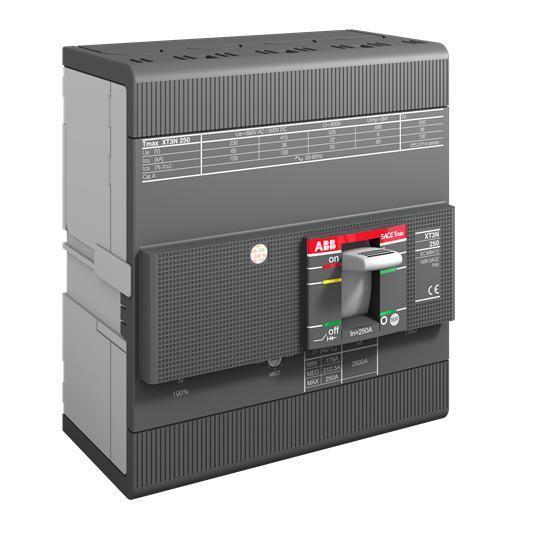

ABB XT3NU4200AFF000XXX Molded Case Circuit Breaker
Part Number # XT3NU4200AFF000XXX
SKU # 2418786
$1124.15 / Each
Typical price:$3699.33 / Each
ABB XT3NU4200AFF000XXX Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | XT3NU4200AFF000XXX |
| SKU #: | 2418786 |
| Amperage Rating: | 200 A |
| Dimensions: | 5.9 in H x 5.51 in W x 2.75 in D |
| Frame: | XT3 225A |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 4 |
| Series: | Tmax XT |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Trip Range: | 200 to 2000 A |
| Trip Type: | Fixed Thermal/Fixed Magnetic, Thermal Magnetic |
| Type: | Low Voltage |
| Connection type: | Front Line/Load Side |
| Country of origin: | IT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121616 |
| UPC: | 08015644791049 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1124.15 / Each
Typical price:$3699.33 / Each
Quantity:
- ABB, XT3NU4200AFF000XXX, Molded Case Circuit Breaker, Low Voltage, Series: Tmax XT, 600Y/347/690 VAC, 200 A, 50/60 Hz Frequency, 10 kA Interrupt, XT3 225A Frame, Thermal Magnetic Trip, 200 to 2000 A Trip, 4 Pole, Front Line/Load Side Connection, Double Insulated Insulation, -13 to 158 deg F, 5.9 in H x 5.51 in W x 2.75 in D Dimensions
XT3NU4200AFF000XXX Application
For all distribution levels from the main low voltage switchboard to the sub-switchboards in the installationXT3NU4200AFF000XXX Item Features
- Frame XT3 to 225 A, 600Y/347 V (UL) /250 A, 690 V (IEC) thermal magnetic protection
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
- Poles 100% neutral
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
XT3NU4200AFF000XXX Standards
UL Listed|CSA Certified|IEC CertifiedSKU #2418786Part Number #XT3NU4200AFF000XXXUNSPSC39121616UPC08015644791049
