Part Number # XT4HU3225GFF000XXX
SKU # 2448837
Image Disclaimers Message
XT4HU3225GFF000XXX

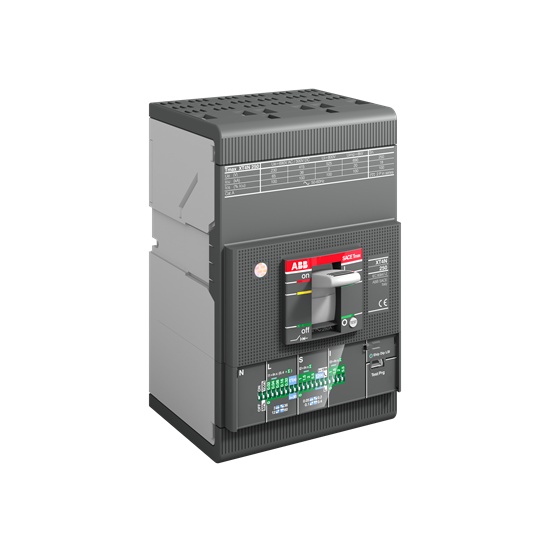

ABB XT4HU3225GFF000XXX
Part Number # XT4HU3225GFF000XXX
SKU # 2448837
$2518.84 / Each
Typical price:$8288.90 / Each
ABB XT4HU3225GFF000XXX Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | XT4HU3225GFF000XXX |
| SKU #: | 2448837 |
| Amperage Rating: | 225 A |
| Dimensions: | 6.3 in H x 4.13 in W x 3.25 in D |
| Frame: | XT4 250A |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 25 kA |
| Number of Poles: | 3 |
| Series: | Tmax XT |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Trip Type: | Electronic, Thermal Magnetic/Electronic/Ekip LSIG |
| Type: | Low Voltage |
| Connection type: | Front Line/Load Side |
| Country of origin: | IT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121616 |
| UPC: | 08015644794835 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2518.84 / Each
Typical price:$8288.90 / Each
Quantity:
- ABB, XT4HU3225GFF000XXX, Molded Case Circuit Breaker, Low Voltage, Series: Tmax XT, 600/690 VAC, 225 A, 50/60 Hz Frequency, 25 kA Interrupt, XT4 250A Frame, Electronic Trip, 3 Pole, Front Line/Load Side Connection, Double Insulated Insulation, -13 to 158 deg F, 6.3 in H x 4.13 in W x 3.25 in D Dimensions
XT4HU3225GFF000XXX Application
For all distribution levels from the main low voltage switchboard to the sub-switchboards in the installationXT4HU3225GFF000XXX Item Features
- Frame XT4 to 250 A, 600 V (UL)/250 A, 690 V (IEC) thermal magnetic and electronic protection
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
XT4HU3225GFF000XXX Standards
UL Listed|CSA Certified|IEC CertifiedSKU #2448837Part Number #XT4HU3225GFF000XXXUNSPSC39121616UPC08015644794835
