ABB XT4LU3225BFF000XXX Molded Case Circuit Breaker
Part Number # XT4LU3225BFF000XXX
SKU # 2365360

XT4LU3225BFF000XXX
ABB XT4LU3225BFF000XXX Molded Case Circuit Breaker
Part Number # XT4LU3225BFF000XXX
SKU # 2365360
$2481.34 / Each
Typical price:$7135.19 / Each
ABB XT4LU3225BFF000XXX Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | XT4LU3225BFF000XXX |
| SKU #: | 2365360 |
| Amperage Rating: | 225 A |
| Dimensions: | 6.3 in H x 4.13 in W x 3.25 in D |
| Frame: | XT4 250A |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 50 kA |
| Number of Poles: | 3 |
| Series: | Tmax XT |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Trip Range: | 1125 to 2250 A |
| Trip Type: | Electronic |
| Type: | Low Voltage |
| Connection type: | Front Line/Load Side |
| Country of origin: | IT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121616 |
| UPC: | 08015644792497 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$2481.34 / Each
Typical price:$7135.19 / Each
Quantity:
- ABB Molded Case Circuit Breaker, Low Voltage, Series: Tmax XT, 600/690 V AC, 225 A, 50/60 Hz Frequency, 50 kA Interrupt, XT4 250A Frame, Electronic Trip, 1125 to 2250 A Trip, 3 Pole, Front Line/Load Side Connection, Double Insulated Insulation, -13 to 158 deg F, 6.3 in H x 4.13 in W x 3.25 in D Dimensions
XT4LU3225BFF000XXX Application
For all distribution levels from the main low voltage switchboard to the sub-switchboards in the installationXT4LU3225BFF000XXX Item Features
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- Frame XT4 to 250 A, 600 V (UL)/250 A, 690 V (IEC) thermal magnetic and electronic protection
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
XT4LU3225BFF000XXX Standards
RoHs, CSA, cUL, CE, GOSTSKU #2365360Part Number #XT4LU3225BFF000XXXUNSPSC39121616UPC08015644792497

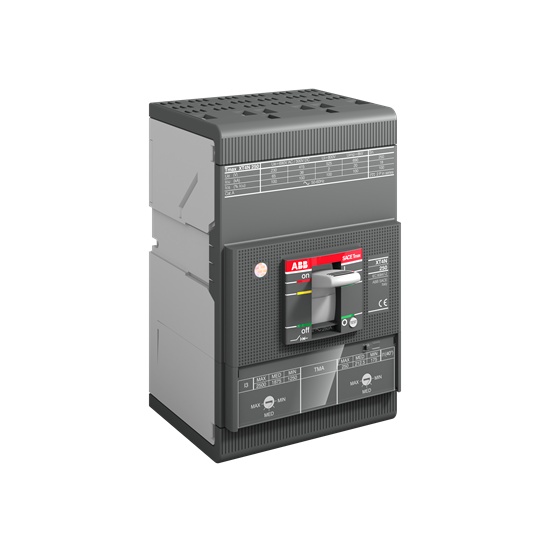

Image provided may only be a representation of final product and may include optional equipment
