Part Number # XT4LU3250EFF000XXX
SKU # 2387961
XT4LU3250EFF000XXX
ABB XT4LU3250EFF000XXX Tmax XT Low Voltage Molded Case Circuit Breaker
Part Number # XT4LU3250EFF000XXX
SKU # 2387961
ABB XT4LU3250EFF000XXX Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | XT4LU3250EFF000XXX |
| SKU #: | 2387961 |
| UNSPSC: | 39121616 |
| UPC: | 08015644793647 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB XT4LU3250EFF000XXX Tmax XT Low Voltage Molded Case Circuit Breaker
Brand: ABB
Part Number: XT4LU3250EFF000XXX
ABB, XT4LU3250EFF000XXX, Molded Case Circuit Breaker, Low Voltage, Series: Tmax XT, 600/690 VAC, 250 A, 50/60 Hz Frequency, 50 kA Interrupt, XT4 250A Frame, Electronic Trip, 3 Pole, Front Line/Load Side Connection, Double Insulated Insulation, -13 to 158 deg F, 6.3 in H x 4.13 in W x 3.25 in D Dimensions
Additional Description: ABB -XT4LU3250EFF000XXX XT4L 250 EKIPLS/I IN=250A3PFFUL/CSA UL/CSA
Catalog Description: XT4L 250 Ekip LS/I In=250A 3p F F UL/CSA
XT4LU3250EFF000XXX Application
For all distribution levels from the main low voltage switchboard to the sub-switchboards in the installationXT4LU3250EFF000XXX Item Features
- Frame XT4 to 250 A, 600 V (UL)/250 A, 690 V (IEC) thermal magnetic and electronic protection
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
XT4LU3250EFF000XXX Standards
RoHs, CSA, cUL, CE, GOSTSKU #2387961Part Number #XT4LU3250EFF000XXXUNSPSC39121616UPC08015644793647

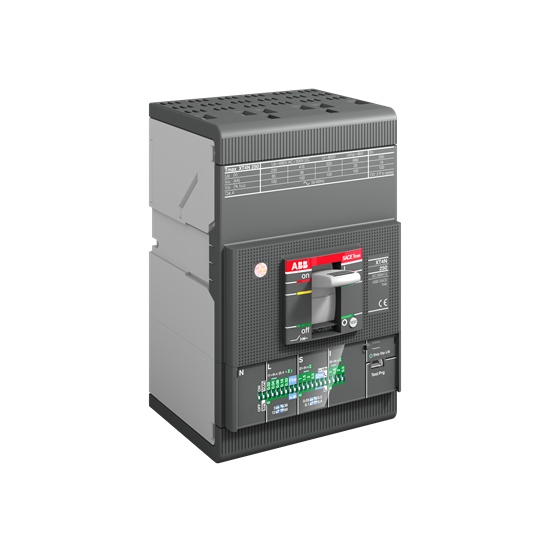

Image provided may only be a representation of final product and may include optional equipment
