ABB XT4NQ3150GFF000XXX Molded Case Circuit Breaker
Part Number # XT4NQ3150GFF000XXX
SKU # 2366646

XT4NQ3150GFF000XXX
ABB XT4NQ3150GFF000XXX Molded Case Circuit Breaker
Part Number # XT4NQ3150GFF000XXX
SKU # 2366646
ABB XT4NQ3150GFF000XXX Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | XT4NQ3150GFF000XXX |
| SKU #: | 2366646 |
| Frame: | XT4N 250A |
| UNSPSC: | 39121616 |
| UPC: | 08057558504377 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ABB XT4NQ3150GFF000XXX Molded Case Circuit Breaker
Brand: ABB
Part Number: XT4NQ3150GFF000XXX
ABB Molded Case Circuit Breaker, Low Voltage, Series, 600, Amperage Rating V AC, A 150, Frequency Rating, Hz 50/60, 18 Interrupt, Frame kA, Electronic Trip, Trip Range, 3 Pole, Phase, Connection Type, Wire Size, Enclosure Type, Temperature Rating, deg F 104, 6.3 in H x 4.13 in W x 3.25 in D, Material, Finish
Additional Description: ABB -XT4NQ3150GFF000XXX (N) XT4N 250 EKIPLSIG IN=150A3PFFUL/CSA UL/CSA NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Tmax Breaker Frame Size XT4N 250 EkipLSIG In=150 Amps Three-Pole FF Underwriters Laboratory/Canadian Standards Association
XT4NQ3150GFF000XXX Application
For all distribution levels from the main low voltage switchboard to the sub-switchboards in the installationXT4NQ3150GFF000XXX Item Features
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
- High breaking capacity in compact dimensions, XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions
- Ease of use and installation flexibility, a dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios
- Customized protection and information availability, specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- Increased safety for operators - wide range of keylocks and padlocking options, plug in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Frame XT4 to 250 A UL/250 A IEC, thermal magnetic and electronic protection
- 250 A frame rating
XT4NQ3150GFF000XXX Standards
UL Listed|IEC Dual Rated|CSA CertifiedSKU #2366646Part Number #XT4NQ3150GFF000XXXUNSPSC39121616UPC08057558504377

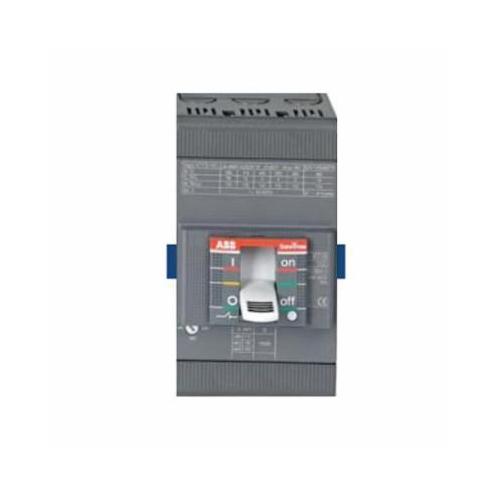

Image provided may only be a representation of final product and may include optional equipment
