CE500N007

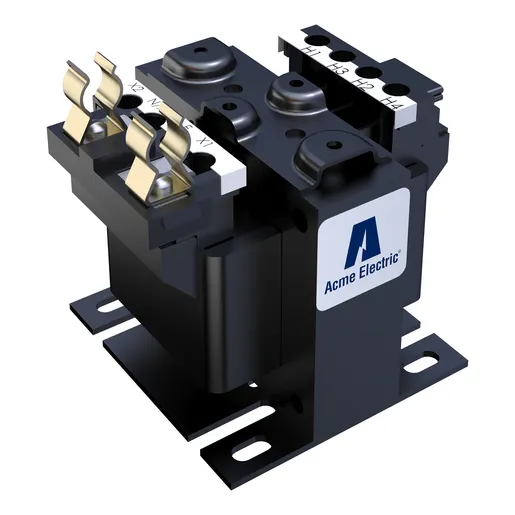

Acme Electric CE500N007 Control Power Transformer
Part Number # CE500N007
SKU # 2386820
$482.63 / Each
Typical price:$978.85 / Each
Acme Electric CE500N007 Key Features
| Brand: | Acme Electric |
|---|---|
| Part Number # : | CE500N007 |
| SKU #: | 2386820 |
| Dimensions: | 8 in H x 10 in W x 9 in L |
| Frequency Rating: | 50, 60 Hz |
| Primary Voltage: | 208/500, 220/380/440/550, 230/400/460/575, 240/416/480/600 V |
| Secondary Voltage: | 85/100/110, 91/110/120, 95/115/125, 99/120/130 V |
| Series: | CE Series |
| Type: | Encapsulated |
| Connection type: | Integrally Molded Terminal Block |
| Housing material: | Silicon Steel |
| Mounting type: | Plate |
| Manufacturer Name: | Acme Industrial Company |
| UNSPSC: | 39121026 |
| UPC: | 00047503014912 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$482.63 / Each
Typical price:$978.85 / Each
Quantity:
Acme Electric CE500N007 Control Power Transformer
Brand: Acme Electric
Part Number: CE500N007
Additional Description: ACME-CE500N007 ICT .500KVA 208-600 - 85-130
Catalog Description: Industrial Control Transformer 208/500,220/380/440/550,230/400/460/575,240/416/480/600 Primary Volts - 85/100/110,91/110/120,95/115/125,99/120/130 Secondary Volts
CE500N007 Item Features
- Encapsulated design protects core & coil assembly from potentially damaging contaminants
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- Integrally molded terminal blocks with isolation barriers to prevent arc over
- Fuse blocks kits available and easily adaptable
- Series-parallel connecting links save wiring and labor costs
- Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors
- Copper windings on all groups
- Heavy gauge steel mounting plate adapts to various mounting dimensions
CE500N007 Standards
UL Listed|cUL Listed|Meets or exceeds UL, CSA, NEMA, ANSI and OSHA Standards|Exceeds NEMA requirementsSKU #2386820Part Number #CE500N007UNSPSC39121026UPC00047503014912
