Part Number # T181220
SKU # 44111
Image provided may only be a representation of
final product and may include optional equipment
T181220

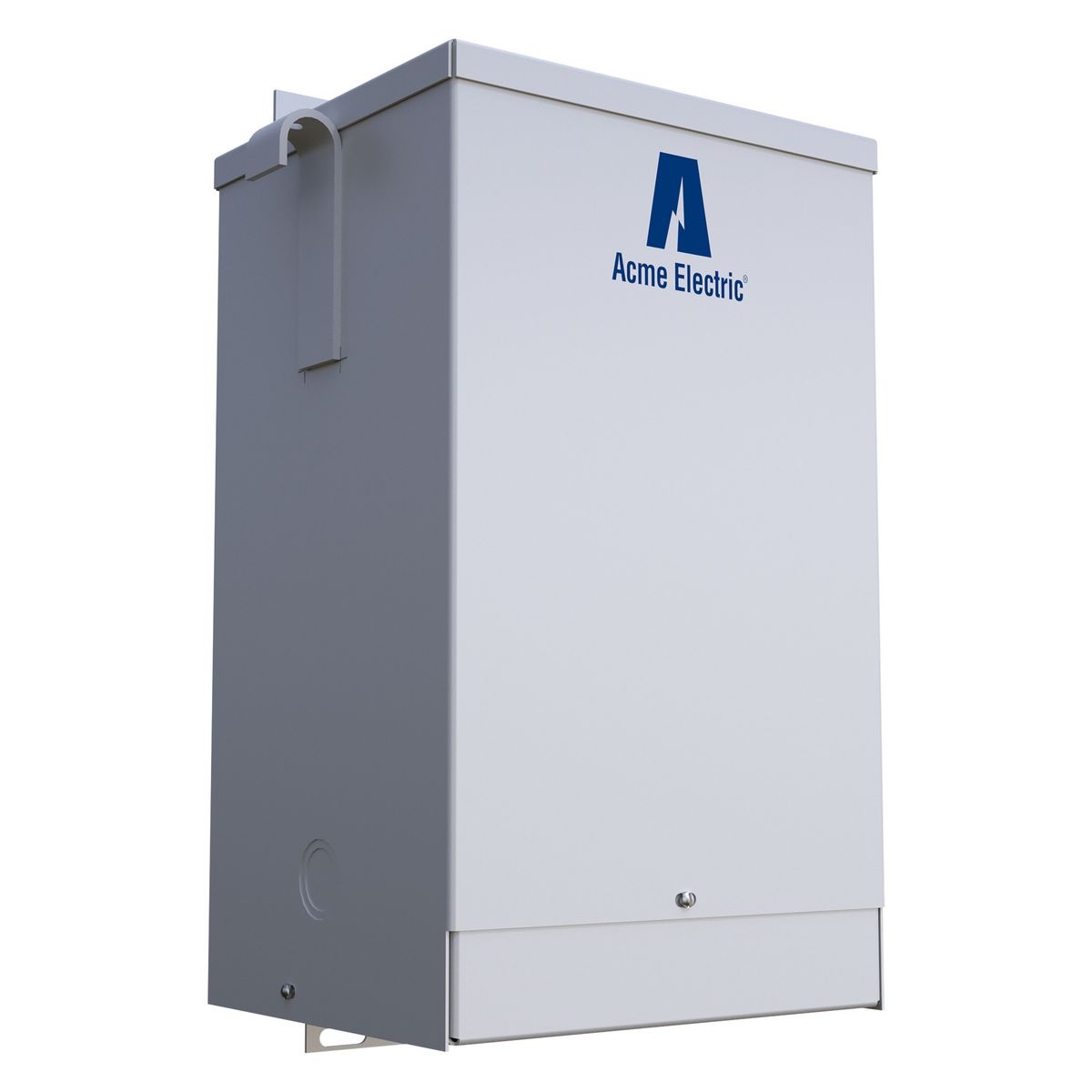

Acme Electric T181220 Control Transformer
Part Number # T181220
SKU # 44111
Acme Electric T181220 Key Features
| Brand: | Acme Electric |
|---|---|
| Part Number # : | T181220 |
| SKU #: | 44111 |
| Dimensions: | 14.77 in H x 10.31 in W x 7.13 in D, 7.13 in L x 10.31 in W x 14.77 in H |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | 155, 155 deg C |
| Maximum Amperage Rating: | 25, 25 A |
| Phase: | 1, 1 ph |
| Primary Voltage: | 240/480, 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 120, 120 V AC, 120 VAC |
| Temperature Rating (Degrees F): | 55, 55 deg C |
| Type: | Encapsulated |
| Connection type: | Lead Wire, Wire Lead |
| Country of origin: | MX |
| Housing material: | Steel |
| Mounting type: | Wall |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121026 |
| UPC: | 00047503183144 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Acme Electric T181220 Control Transformer
Brand: Acme Electric
Part Number: T181220
Acme Electric Industrial Control Transformer, Encapsulated, 240/480 VAC Primary, 120 VAC Secondary, 3000 VA, 50/60 Hz, 1 ph, 25 A Maximum, Wire Lead, Wall Mount, 155 deg C, NEMA 3R, 55 deg C, Steel Housing, 7.13 in L x 10.31 in W x 14.77 in H
Additional Description: ACME-T181220 TFMR 1PH 3KVA 240X480-120 HARSH ENVIRONMENT TRANSFORMERS , SINGLE PHASE, 50/60 HZ , 240 X 480 PRIMARY VOLTS , 120 SECONDARY VOLTS
Catalog Description: Industrial Control Transformer - Harsh Environment, 240 X 480 - 120V, 3000VA
T181220 Application
Harsh Environments and Industrial ApplicationsT181220 Item Features
- Fully encapsulated and enclosed
- Copper windings
- Voltage regulation exceeds NEMA requirements
- Designed for outside control panel installation
T181220 Standards
UL 506 File No. E79947|CSA C22.2 No. 47 File No. LR7357-32|PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.govSKU #44111Part Number #T181220UNSPSC39121026UPC00047503183144
