T3793123S

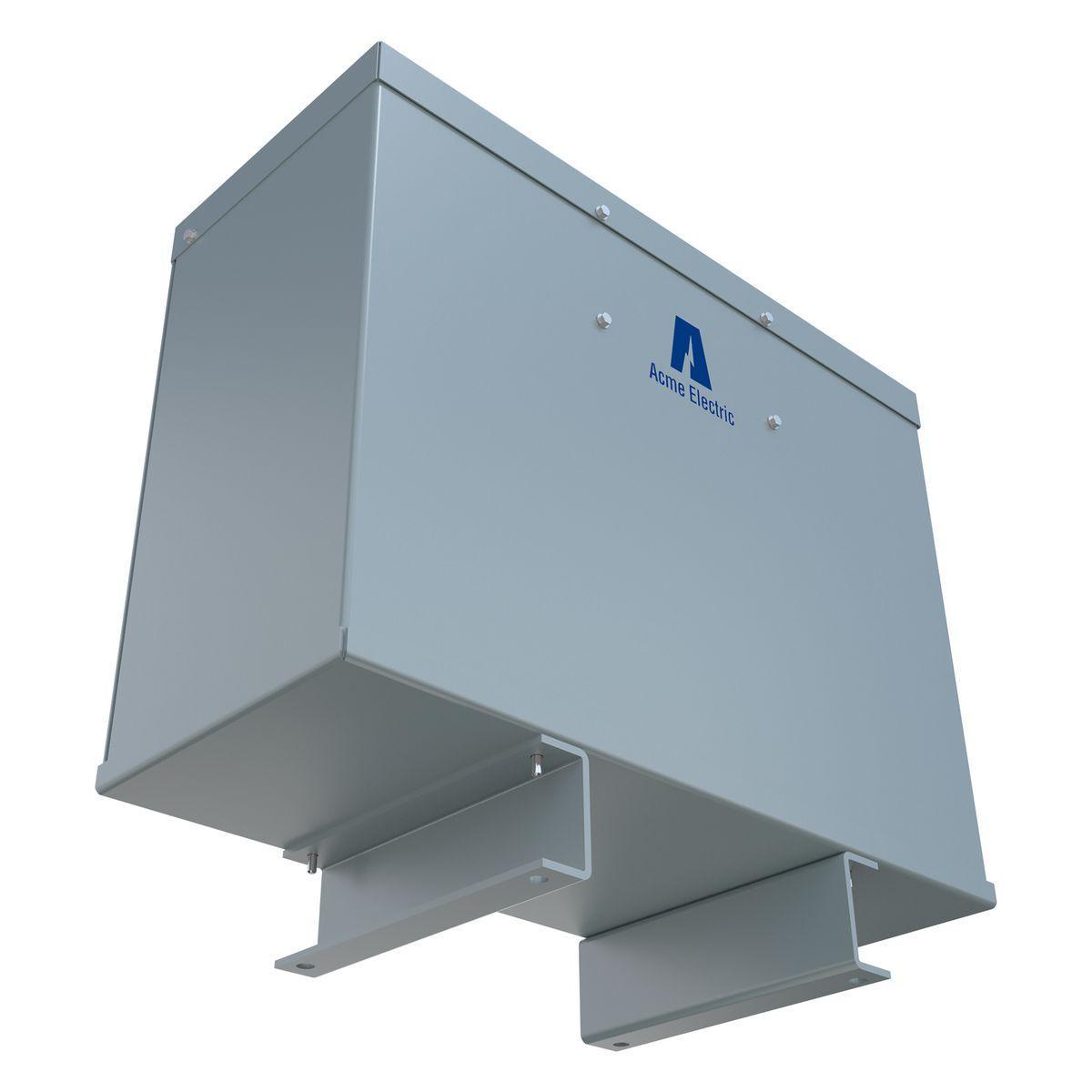

Acme Electric T3793123S Isolation Transformer
Part Number # T3793123S
SKU # 2339632
$6976.42 / Each
Typical price:$14149.35 / Each
Acme Electric T3793123S Key Features
| Brand: | Acme Electric |
|---|---|
| Part Number # : | T3793123S |
| SKU #: | 2339632 |
| Dimensions: | 11.14 in L x 27.13 in W x 24.81 in H, 24.81 in H x 27.13 in W x 11.14 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60, 60 Hz |
| Number of Taps: | 6 |
| Phase: | 3, 3 ph |
| Primary Voltage: | 480, 480 V AC, 480 VAC |
| Secondary Voltage: | 208Y/120 V AC, 208Y/120 VAC |
| Temperature Rating (Degrees F): | 115, 115 deg C |
| Type: | Dry Distribution Encapsulated Low Voltage |
| Connection type: | Copper Lead Wire |
| Country of origin: | MX |
| Housing material: | Stainless Steel |
| Mounting type: | Floor |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121027 |
| UPC: | 00047503183007 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6976.42 / Each
Typical price:$14149.35 / Each
Quantity:
- Acme Electric Isolation Transformer, Dry Distribution Encapsulated Low Voltage, 480 V AC Primary, 208Y/120 VAC Secondary, 30 kVA, 60 Hz, 3 ph, 6 Taps, Copper Lead Wire, Floor Mount, NEMA 3R, 115 deg C, Stainless Steel Housing, 11.14 in L x 27.13 in W x 24.81 in H
T3793123S Application
General Purpose ApplicationsT3793123S Item Features
- Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air
- Quiet operation with sound levels well below NEMA standards
- Electrostatic shield for enhanced protection
- 2 ANFC/4 BNFC taps
- 2.5% tap steps
- Encapsulated core and coil, shielded for cleaner power
- Aluminum bus termination
- Meet CSA C802.2 efficiency
- Ground studs for use with non-metallic conduit
T3793123S Standards
UL 506 File No. E79947V1|UL Control Number 50B8|UL Insulation Number X3221|CSA Certified|OSHA Compliant|ANSI Specified|IEEE Certified|PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.govSKU #2339632Part Number #T3793123SUNSPSC39121027UPC00047503183007
