Part Number # ICN2P32N35I
SKU # 2160044
ICN2P32N35I

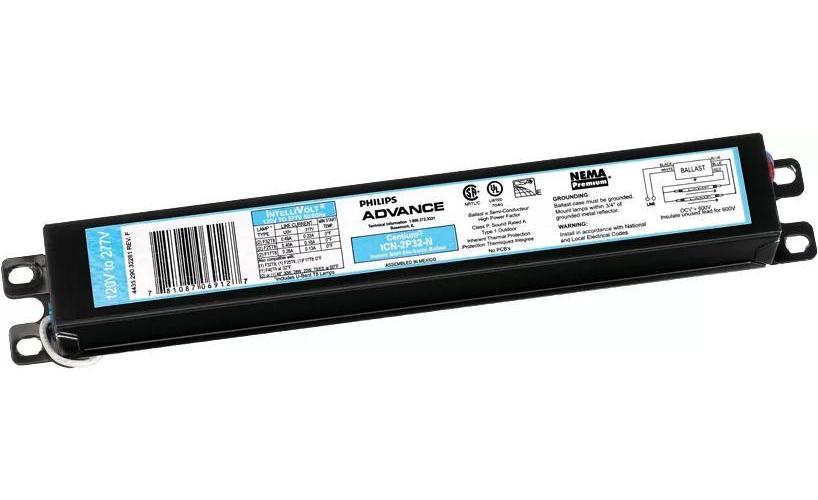

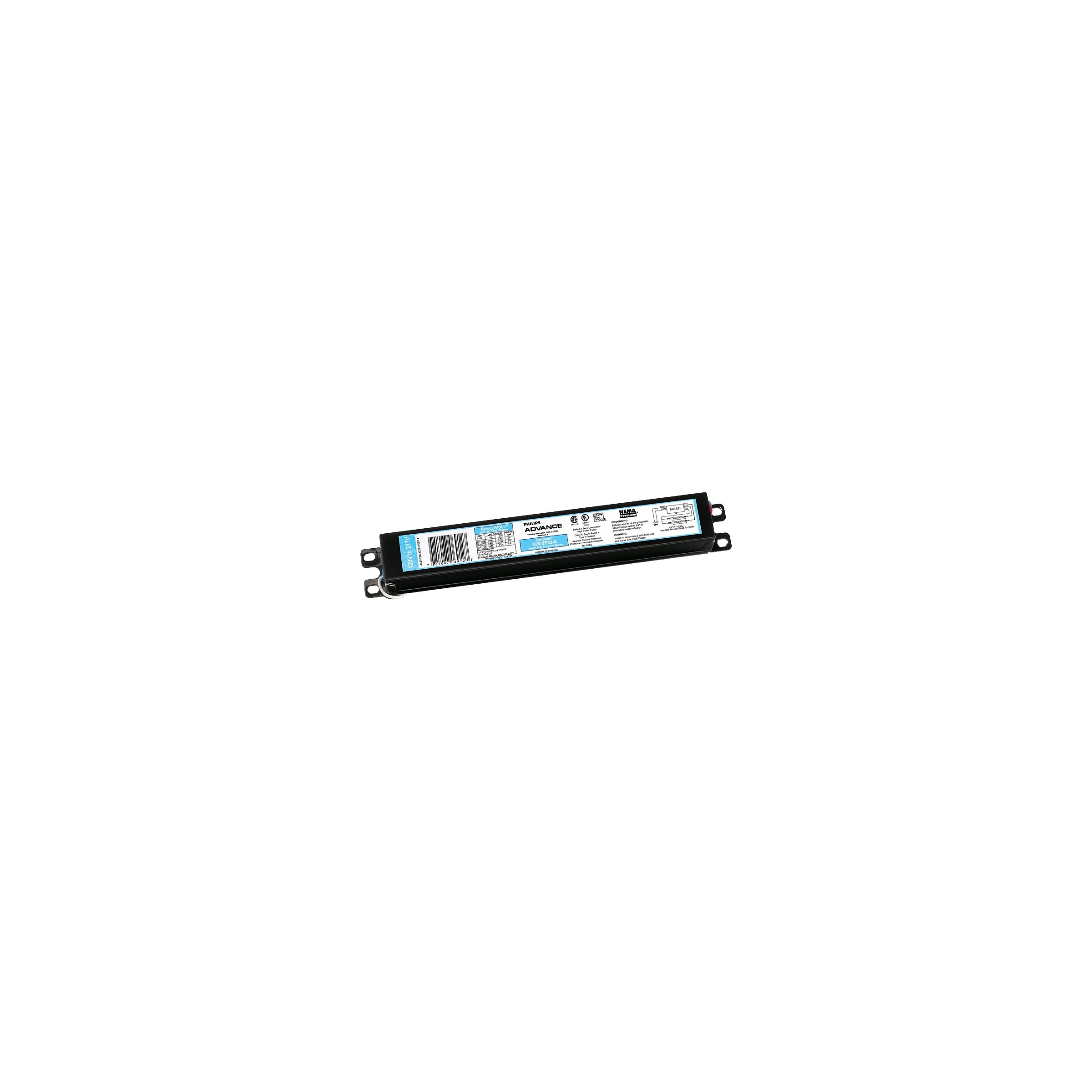

Advance Lighting ICN2P32N35M CENTIUM Electronic Fluorescent Ballast
Part Number # ICN2P32N35I
SKU # 2160044
Advance Lighting ICN2P32N35I Key Features
| Brand: | Advance Lighting |
|---|---|
| Part Number # : | ICN2P32N35I |
| SKU #: | 2160044 |
| Amperage Rating: | 0.22 to 0.49, 0.22 to 0.49 A |
| Dimensions: | 9.5 in L x 1.3 in W x 1 in H |
| Dimmable: | No |
| Enclosure Type: | NEMA 21 |
| Lamp Wattage: | 32 |
| Minimum Starting Temperature: | 0 deg F |
| Total Harmonic Distortion: | 10, 10 %, 10% |
| Type: | Electronic N Can |
| Wattage: | 56, 56 W |
| Power factor: | 0.98 |
| Temperature range: | 70 |
| UNSPSC: | 39101901 |
| UPC: | 00781087069127 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Advance Lighting ICN2P32N35M CENTIUM Electronic Fluorescent Ballast
Brand: Advance Lighting
Part Number: ICN2P32N35I
Advance Centium Electronic Fluorescent Ballast, T8 Lamp, 32 W Lamp, 56 W Wattage, 120 to 277 VAC, 0.22 to 0.49 A, 50/60 Hz Frequency, Instant/Rapid Start, Total Harmonic Distortion: 10 %, Power Factor: 0.98, No Dimmable, 2 Lamps, Ballast Factor: 0.89, NEMA 21 Enclosure, 70 deg C, Metal, 9.5 in L x 1.3 in W x 1 in H Dimensions
Additional Description: ADVT-ICN2P32N35I ICN2P32N35I ELE BALLAST (2) F32T8 120-277V
Catalog Description: The right choice for a broad range of new construction and retrofit applications;Compatible with Energy Saving lamps;Eligible for Utility Rebates;Maximizes fixture design;Reduces packaging waste;Reliable and energy efficient Philips Advance's Centium commercial grade specifications, plus added benefits of lamp striation reduction technology.;IntelliVolt (120-277V) input voltage range;Lamp Striation Reduction;Meets NEMA Premium/CEE;Smallest enclosure in industry;General office lighting, institutional, government, health care, school applications.
ICN2P32N35I Application
Outdoor ApplicationsICN2P32N35I Item Features
- Reliable and energy efficient Philips Advance Centium commercial grade specifications, plus added benefits of lamp striation reduction technology
- High power factor
ICN2P32N35I Standards
CSA certificate;UL certificate;CEC Listing;CEE Rated;CSA E;NEMA Premium;NOM certificate;RoHS CompliantSKU #2160044Part Number #ICN2P32N35IUNSPSC39101901UPC00781087069127
Image provided may only be a representation of final product and may include optional equipment
