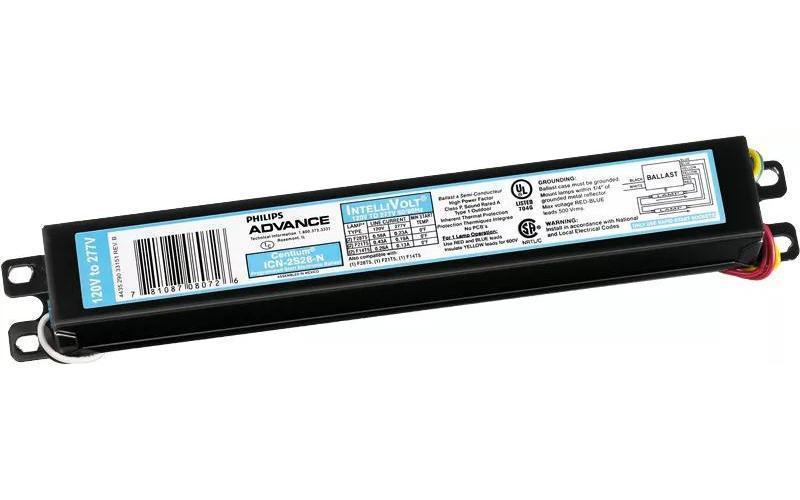

Advance Lighting ICN2S28N35M Centium Electronic Fluorescent Ballast
Part Number # ICN2S28N35M
SKU # 2397548

ICN2S28N35M
Advance Lighting ICN2S28N35M Centium Electronic Fluorescent Ballast
Part Number # ICN2S28N35M
SKU # 2397548
Advance Lighting ICN2S28N35M Key Features
| Brand: | Advance Lighting |
|---|---|
| Part Number # : | ICN2S28N35M |
| SKU #: | 2397548 |
| Amperage Rating: | 0.23 to 0.53 A |
| Wattage: | 63/62 W |
| Power factor: | 1.028 |
| UNSPSC: | 39101901 |
| UPC: | 00781087080733 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Advance Lighting ICN2S28N35M Centium Electronic Fluorescent Ballast
Brand: Advance Lighting
Part Number: ICN2S28N35M
Advance Centium Electronic Fluorescent Ballast, T5 Lamp, 28 W Lamp, 63/62 W Wattage, 120 to 277 VAC, 0.23 to 0.53 A, 50/60 Hz Frequency, Programmed Start, Total Harmonic Distortion: 10 %, Power Factor: 1.028, 2 Lamps, Ballast Factor: 1.028, 70 deg C, Metal, 9.5 in L x 1.3 in W x 1 in H Dimensions
Additional Description: PHIL-ICN2S28N35M ICN2S28N35M ELE BALLAST (2) F28T5 120-277V
Catalog Description: New design means flexibility;Auto-restrike capability - Eliminates the need to reset power mains after failed lamps are replaced;0°F starting capability - Suitable for cold temperature applications;Philips Advance Centium ballasts for T5 lamps at 120-277V are now available with our industry leading N-can at 9.5" x 1.3" x 1.0" or T-can at 14.17" x 1.18" x 1.06", which provides fixture manufacturers increased versatility in their newer generation fixture designs. These ballasts are compatible with all major energy-saving T5 linear lamps and have a variety of other features which makes them ideal for a variety of applications. The ballasts’ programmed start ignition provides extended lamp life in frequent switching applications such as those where occupancy sensors are being used. They also feature lamp End-Of-Life (EOL) protection circuitry which safely removes power from the lamp at the end of lamp life.;IntelliVolt Technology (120-277V);Lamp EOL Protection;UL Type CC rated - Anti-arci
ICN2S28N35M Application
Outdoor ApplicationsICN2S28N35M Item Features
- High power factor
ICN2S28N35M Standards
CSA Certified|RoHS Compliant|UL ListedSKU #2397548Part Number #ICN2S28N35MUNSPSC39101901UPC00781087080733
Image provided may only be a representation of final product and may include optional equipment
