Advance Lighting ICN2S39T35M Fluorescent Ballast
Part Number # ICN2S39T35M
SKU # 2273603

ICN2S39T35M
Advance Lighting ICN2S39T35M Fluorescent Ballast
Part Number # ICN2S39T35M
SKU # 2273603
Advance Lighting ICN2S39T35M Key Features
| Brand: | Advance Lighting |
|---|---|
| Part Number # : | ICN2S39T35M |
| SKU #: | 2273603 |
| Amperage Rating: | 0.31 to 0.73 A |
| Dimensions: | 14.17 in L x 1.18 in W x 1.06 in H |
| Lamp Wattage: | 39 W |
| Wattage: | 87/85 W |
| UNSPSC: | 39101901 |
| UPC: | 00781087131763 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Advance Lighting ICN2S39T35M Fluorescent Ballast
Brand: Advance Lighting
Part Number: ICN2S39T35M
Advance Centium Electronic Fluorescent Ballast, T5HO Lamp, 39 W Lamp, 87/85 W Wattage, 120 to 277 VAC, 0.31 to 0.73 A, 50/60 Hz Frequency, Programmed Start, Total Harmonic Distortion: 10 %, Power Factor: 0.98, No Dimmable, 2 Lamps, Thermal Protection: Class P, Ballast Factor: 1, 70 deg C, Metal, 14.17 in L x 1.18 in W x 1.06 in H Dimensions
Additional Description: ADVT-ICN2S39T35M ICN2S39T35M ELE BALLAST (2) F39T5/HO 120-277V M PK
Catalog Description: The right fit for your high-output applications;Programmed Start Operation - Helps to extend lamp life in frequent switching applications such as occupancy sensors or daylight harvesting;Starting Capability at -20F - Suited for cold temperature applications (54W models only);High-Low Switching - One ballast can easily switch from 4-lamp to 2-lamp fixtures;No matter what the conditions require, operating at a variety of line voltages between 120V to 480V, whether located in high ambient temperature environments (requiring a 90° C rating) or not, our family of Philips Advance Centium ballasts are ideal for a wide variety of applications.;IntelliVolt Technology (120-277V);Lamp EOL Protection;UL Type CC rated - Anti-arcing circuitry provides greater flexibility to meet end-user application requirements;Retail, commercial, institutional and industrial applications including; schools, offices, specialty & department stores, warehouses and manufacturing
ICN2S39T35M Application
Outdoor ApplicationsICN2S39T35M Item Features
- High power factor
ICN2S39T35M Standards
CSA Certified|UL ListedSKU #2273603Part Number #ICN2S39T35MUNSPSC39101901UPC00781087131763

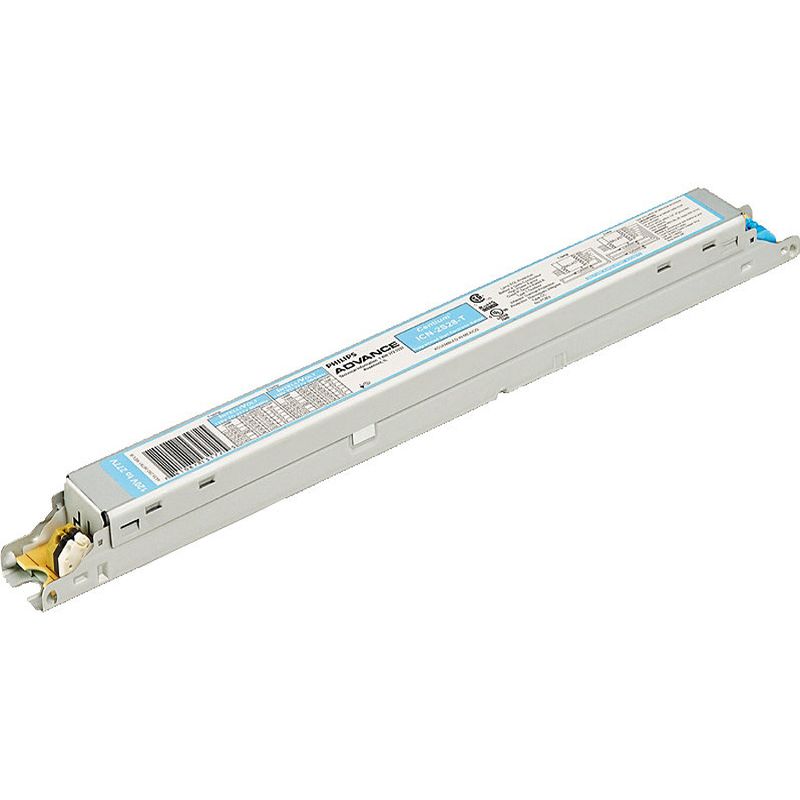

Image provided may only be a representation of final product and may include optional equipment
