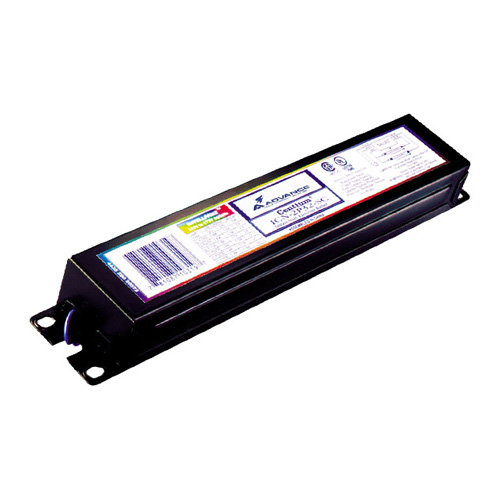

Advance Lighting ICN4S5490C2LSG35I Fluorescent Ballast

Brand: Advance Lighting

Part Number: ICN4S5490C2LSG35I

Advance Centium® Electronic Fluorescent Ballast, T5HO Lamp, 54 W Lamp, 240/234 W Wattage, 120 to 277 VAC, 0.86 to 2 A, 50/60 Hz Frequency, Programmed Start, Total Harmonic Distortion: 10 %, Power Factor: 1, 4 Lamps, Ballast Factor: 1, 90 deg C, Metal, 16.7 in L x 1.7 in W x 1.18 in H Dimensions

Additional Description: ADVT-ICN4S5490C2LSG35I ICN4S5490C2LSG35I ELE BALLAST (4) F54T5HO 120-277V PACK

Catalog Description: The right fit for your high-output applications Programmed Start Operation - Helps to extend lamp life in frequent switching applications such as occupancy sensors or daylight harvesting;Starting Capability at -20F - Suited for cold temperature applications (54W models only);High-Low Switching - One ballast can easily switch from 4-lamp to 2-lamp fixtures No matter what the conditions require, operating at a variety of line voltages between 120V to 480V, whether located in high ambient temperature environments (requiring a 90° C rating) or not, our family of Philips Advance Centium ballasts are ideal for a wide variety of applications. IntelliVolt Technology (120-277V);Lamp EOL Protection;UL Type CC rated - Anti-arcing circuitry provides greater flexibility to meet end-user application requirements Retail, commercial, institutional and industrial applications including; schools, offices, specialty & department stores, warehouses and manufacturing
