AEAB3036DSAS1

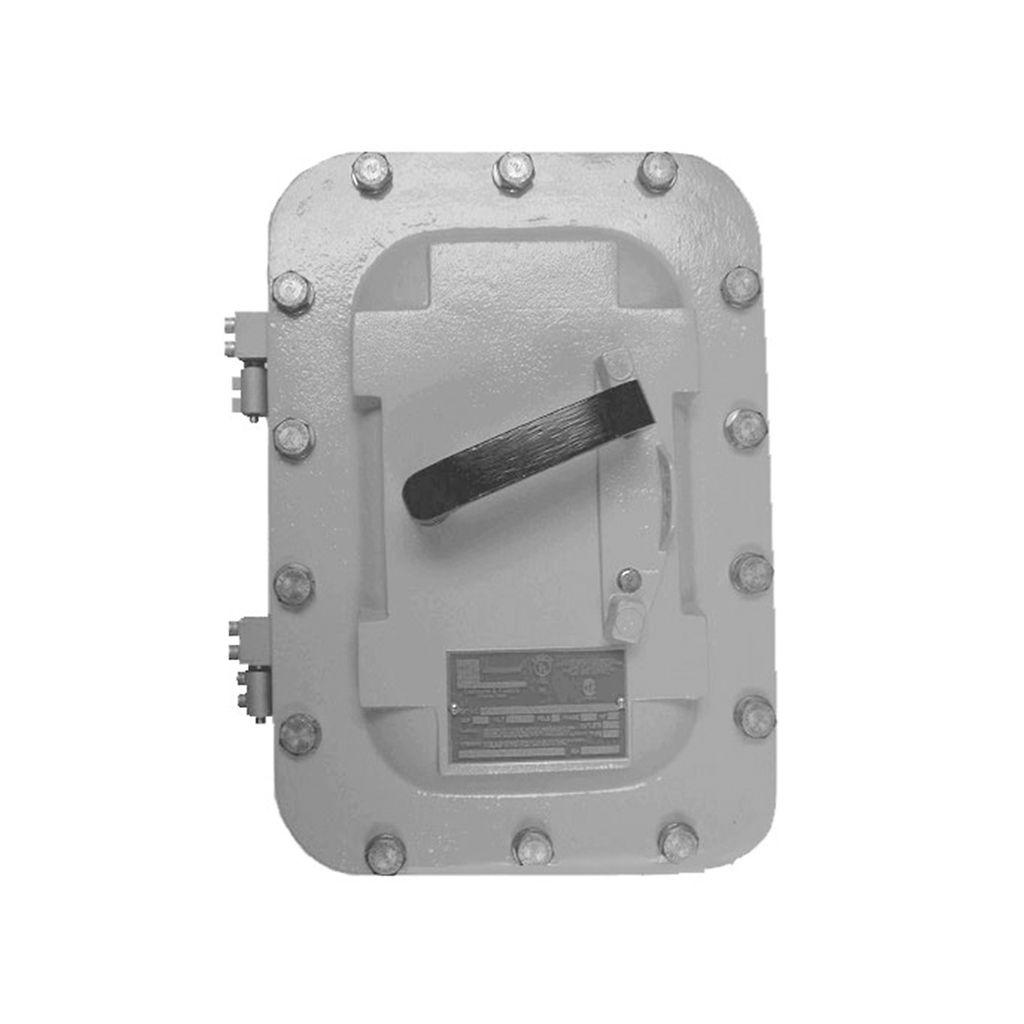

Appleton AEAB3036DSAS1 Circuit Breakers
Part Number # AEAB3036DSAS1
SKU # 2384054
$3131.76 / Each
Typical price:$3276.30 / Each
Appleton AEAB3036DSAS1 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AEAB3036DSAS1 |
| SKU #: | 2384054 |
| Actuator Type: | External Handle |
| Amperage Rating: | 15 to 1200 A |
| Dimensions: | 15.3 in H x 10.5 in W x 10.75 in D |
| Enclosure Type: | NEMA 4/4X |
| Finish: | Epoxy Powder Coated |
| Number of Poles: | 3 |
| Phase: | 3, 3 ph |
| Series: | AE Series |
| Terminal Type: | Ground Lug |
| Type: | Dust-Ignitionproof Explosionproof Watertight |
| Color: | Gray |
| Material: | Copper-Free Aluminum |
| Mounting type: | Bolt |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121601 |
| UPC: | 00078138115763 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3131.76 / Each
Typical price:$3276.30 / Each
Quantity:
- Appleton, AEAB3036DSAS1, Disconnect Switch, Dust-Ignitionproof Explosionproof Watertight, Series: AE Series, 240 to 600, 125 to 250 V AC/V DC, 15 to 1200 A, 3 ph, 3 Pole, External Handle Actuator, NEMA 4/4X Enclosure, Bolt Mounting, Ground Lug Terminal, 15.3 in H x 10.5 in W x 10.75 in D Dimensions, Copper-Free Aluminum, Gray, Epoxy Powder Coated
AEAB3036DSAS1 Item Features
- Explosionproof, dust-ignitionproof, watertight
- Precision machined flame path between box and cover
- O-ring gasket insures watertight integrity
- 15 to 1200 A, 240 Vac, 480 Vac, 600 Vac, 125/250 Vdc
- Bolt on stainless steel slotted mounting feet
- Stainless steel, captive Quad-Lead cover bolts are standard (disengaged in 1-1/2 turns)
- Ground lug package and installation instructions for termination of ground wire enclosed
- External operating handle with stops for limiting handle travel
- Breaker operators can be locked in the ON or OFF position (up to 3 padlocks)
- External flange maximizes internal space
- Standard outlets top and bottom for line and load wiring
- Plugged 1/2 in outlets top and bottom for breather and drain
- Breakers mounted on a galvanized steel removable pan
- Enclosures are designed to accept GE, Square D, Siemens and Cutler-Hammer B circuit breakers
AEAB3036DSAS1 Standards
NEC/CEC Cetified Class I, Division 1 and 2, Groups B, C, D/Class II, Division 1 and 2, Groups E, F, G/Class III/NEMA 4, 4X|UL ListedSKU #2384054Part Number #AEAB3036DSAS1UNSPSC39121601UPC00078138115763
