Brand: Bussmann

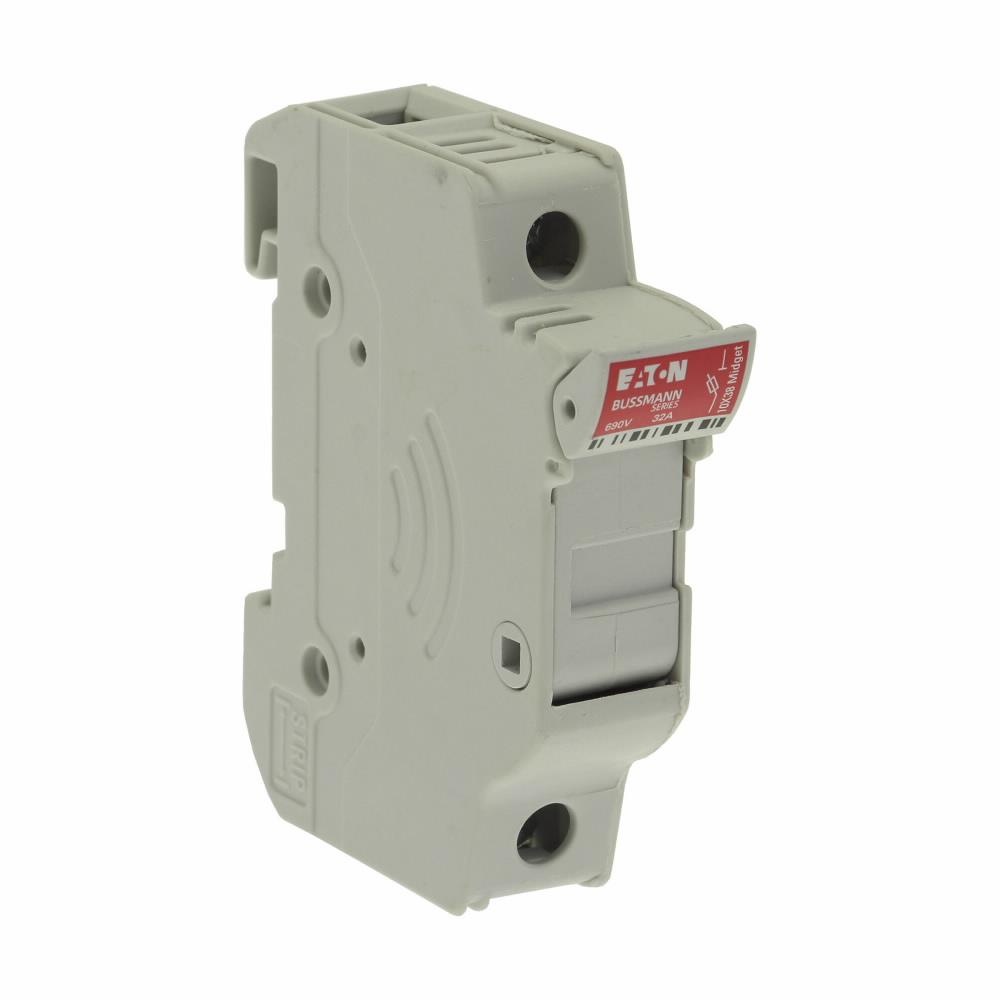

Bussmann CHM1DU Fuse Holder
Part Number # CHM1DU
SKU # 2234824
$33.11 / Each
Only 4 left in stock order soon
Ships in 1 Business Day
Bussmann CHM1DU Key Features
Brand: Bussmann
Part Number # CHM1DU
SKU #2234824
Amperage Rating: 30/32, 30/32 A
Class: CC, Midget
Dimensions: 2.909 in H x 0.689 in W x 3.275 in D
Fuse Diameter: 10, 10 mm
Fuse Length: 38, 38 mm
Number of Phases: 1/3
Number of Poles: 1
Series: CH Series
Suitable For Use With: AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse, FNQ/KLM/FNM/KTK/BAF/FWA/PVM/C10/AGU/BAN/FWC Series Midget Fuse
Temperature Rating (Degrees F): -20 to 120, -20 to 120 deg C
Type: Finger Safe Modular, Modular
Voltage Rating: 600 VAC/690 VDC, 600/690, 600/690 VAC
Wire Size: 18 to 4, 18 to 4 AWG
Color: White
Connection type: Spade Lug
Material: Polyester
Mounting type: DIN Rail
Manufacturer Name: Eaton
UNSPSC: 39121616
UPC: 00051712362597
$33.11 / Each
Bussmann CHM1DU Fuse Holder
Brand: Bussmann
Part Number: CHM1DU
Bussmann Fuse Holder, Modular, Series: CH Series, 600/690 VAC, 30/32 A, 1 Pole, Class: Midget, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 120 deg C, For Use With: AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse, 2.909 in H x 0.689 in W x 3.275 in D
Additional Description: BUSS-CHM1DU FUSE HOLDER 10X38 1P Single-Pole
Catalog Description: Eaton Bussmann series CHM modular fuse holder, Modular fuse holder
CHM1DU Item Features
- UL Recognized midget and 10 x 38 holders with factory assembled neutral pole option
- Available remote PLC indication with the CH-PLC module
- Complete range of UL listed and high SCCR rated 1-phase and 3-phase finger safe comb bus bars and power feed lugs
- 30 A, 600 VAC UL and 32 A, 690 VAC IEC rated
- https://www.youtube.com/watch?v=YMvqUyoETXk
CHM1DU Standards
CCC Certified|CSA Certified|IEC 60269-2|UL Listed|UR Recognized|UL 94-V-0 Flammability RatingSKU #2234824Part Number #CHM1DUUNSPSC39121616UPC00051712362597
