Part Number # NON-200
SKU # 2195883
NON-200

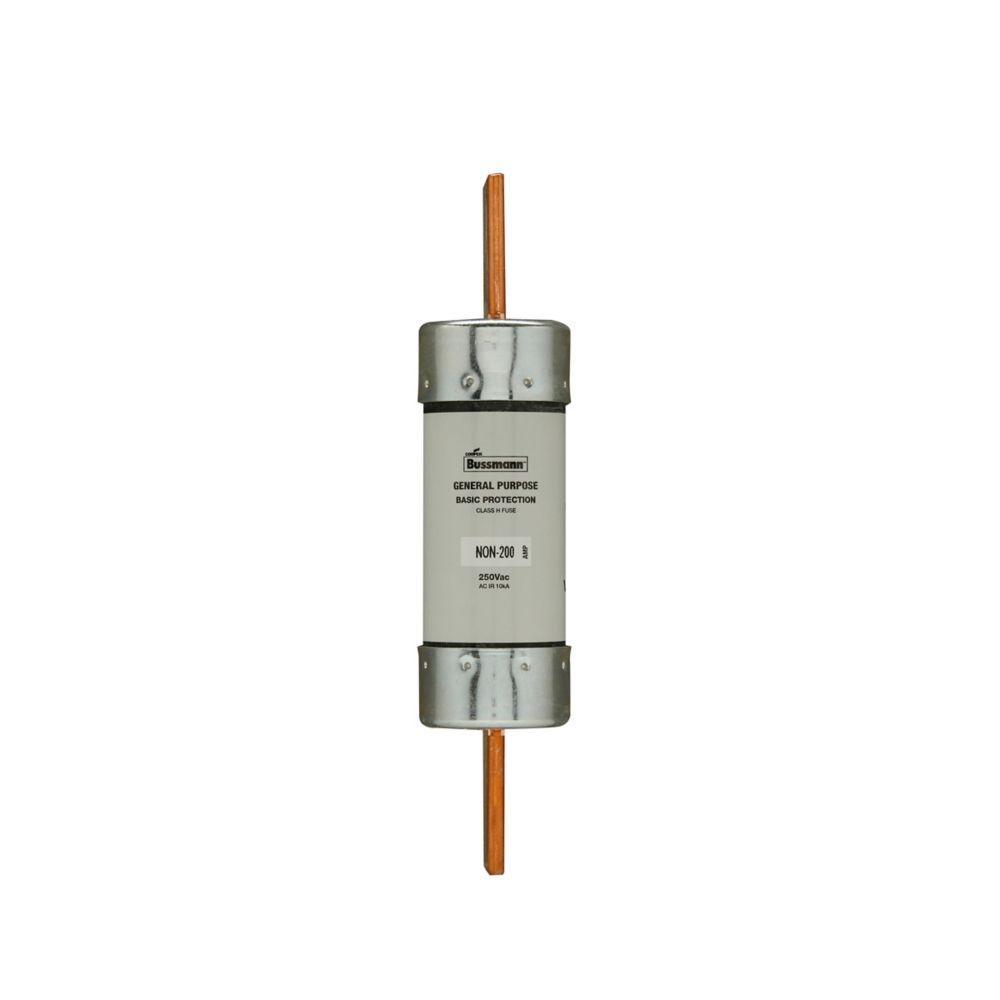

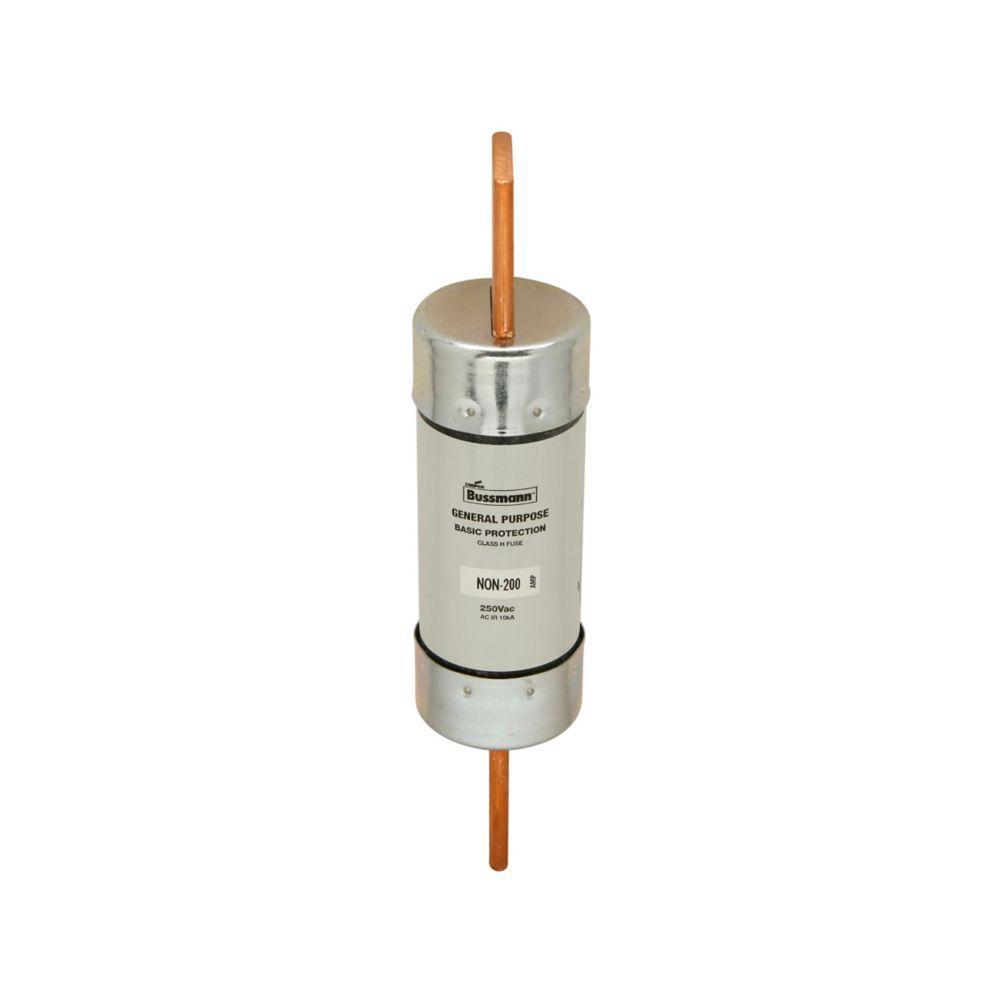

Bussmann NON-200 One Time Fuse
Part Number # NON-200
SKU # 2195883
Bussmann NON-200 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | NON-200 |
| SKU #: | 2195883 |
| Amperage Rating: | 200 A |
| Body Type: | Cartridge |
| Class: | H |
| Interrupt Rating: | 10 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | NON |
| Terminal Type: | Blade |
| Type: | Non-Current Limiting |
| Material: | Melamine |
| Mounting type: | Holder |
| UNSPSC: | 39121605 |
| UPC: | 00051712101721 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann NON-200 One Time Fuse
Brand: Bussmann
Part Number: NON-200
Bussmann One Time Fuse, Non-Current Limiting, Series: NON, Non-Indicating, Non-Rejection, 200 A, 250 V AC, 10 kA Interrupt, Class: H, Blade Terminal, Holder Mounting, Cartridge Body, Single Element, Melamine, 1.56 in Dia x 7.13 in L Body
Additional Description: BUSS-NON-200 BUSS ONE TIME FUSE
Catalog Description: Eaton Bussmann Series Class H fuse, NON, general purpose, non-current-limiting fuses, 200 A, one-time fuse, interrupting rating of 10 kA at 250 Vac
NON-200 Application
Light Duty Circuit LocationsNON-200 Item Features
- Protect lighting, heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low
- Non one time fuses do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
- For general purpose circuits, size at amp rating of circuit and motor circuits, size at 300% to 400%
- For motor circuits, size at 300% to 400% according to the NEC motor ampacity tables 430.247 to 430.250, per 430.6(A)(1)
- https://www.youtube.com/watch?v=YMvqUyoETXk
NON-200 Standards
PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer|and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2195883Part Number #NON-200UNSPSC39121605UPC00051712101721
Image provided may only be a representation of final product and may include optional equipment
