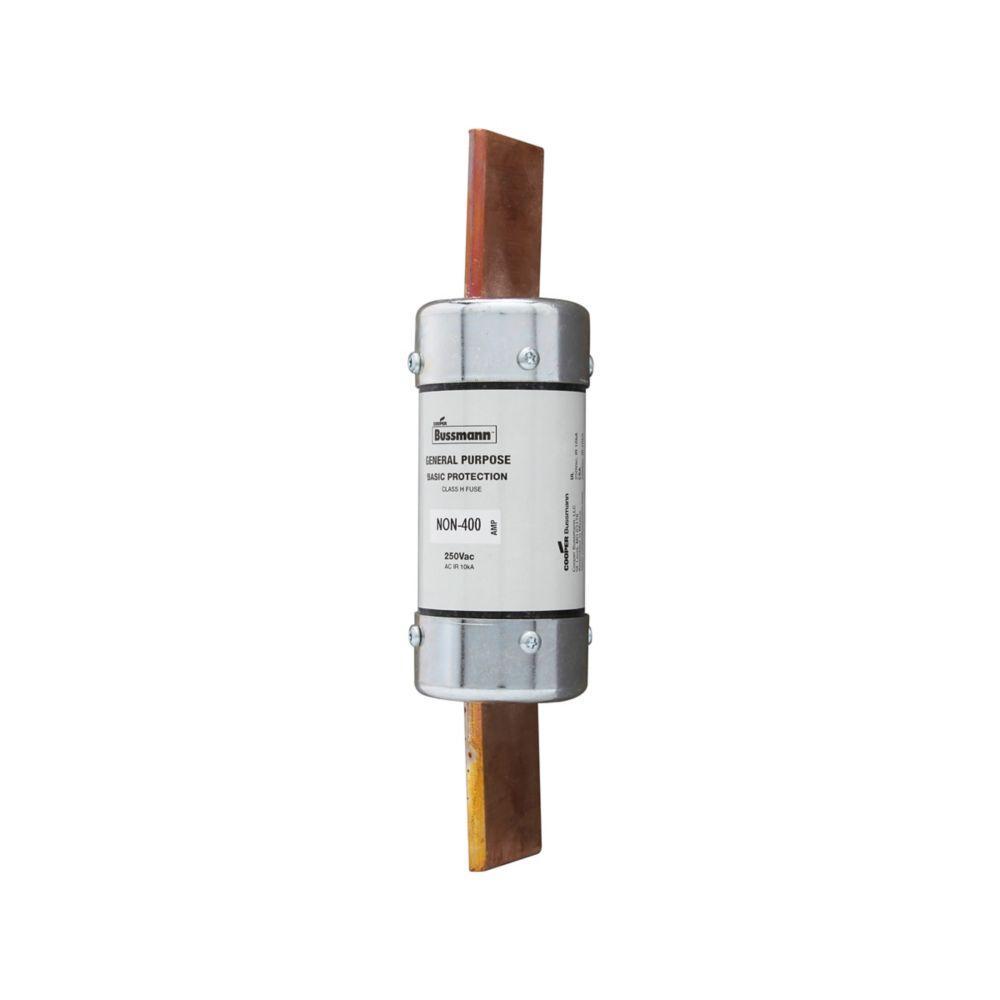

Bussmann NON-400 General Purpose Fuse
Part Number # NON-400
SKU # 2226970
$282.43 / Each
Bussmann NON-400 Key Features
Brand: Bussmann
Part Number # NON-400
SKU #2226970
Amperage Rating: 400, 400 A
Body Type: Cartridge, Cartridge Blade
Class: H
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 10, 10 kAIC
Rejection/Non-Rejection: Non-Rejection, Rejection
Series: NON
Terminal Type: Blade, Blade End
Type: Non-Current Limiting One Time, One-Time Non-Current Limiting
Voltage Rating: 250, 250 VAC
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121605
UPC: 00051712304009
$282.43 / Each
Bussmann NON-400 General Purpose Fuse
Brand: Bussmann
Part Number: NON-400
Bussmann Fuse, One-Time Non-Current Limiting, Series: NON, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 400 A, 250 VAC, 10 kAIC Interrupt, Class: H, Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 2.06 in Dia x 8.63 in L Body Size
Additional Description: BUSS-NON-400 BUSS ONE TIME FUSE
Catalog Description: Eaton Bussmann Series Class K5 fuse, NON, general purpose, non-current-limiting fuses, 400 A, one-time fuse, interrupting rating of 10 kA at 250 Vac
NON-400 Application
Industrial Facilities and Factory Facility, Safety and Security Systems, Light Duty Circuit Locations ApplicationsNON-400 Item Features
- Original fuse providing circuit protection
- Protect lighting, heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low
- Do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
- Use Bussmann advanced protection Fusetron FRN-R or ultimate protection Low-Peak LPN-RK dual element, time delay fuses
- For general purpose circuits, size at amp rating of circuit
- For motor circuits, size at 300% to 400% according to the NEC motor ampacity tables 430.247/430.250/ 430.6(A)(1)
- One-time fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
NON-400 Standards
CE Certified|CSA Class 1421-01 File No. 53787|UL 248-6 Guide No. JDDZ File No. E4273SKU #2226970Part Number #NON-400UNSPSC39121605UPC00051712304009
