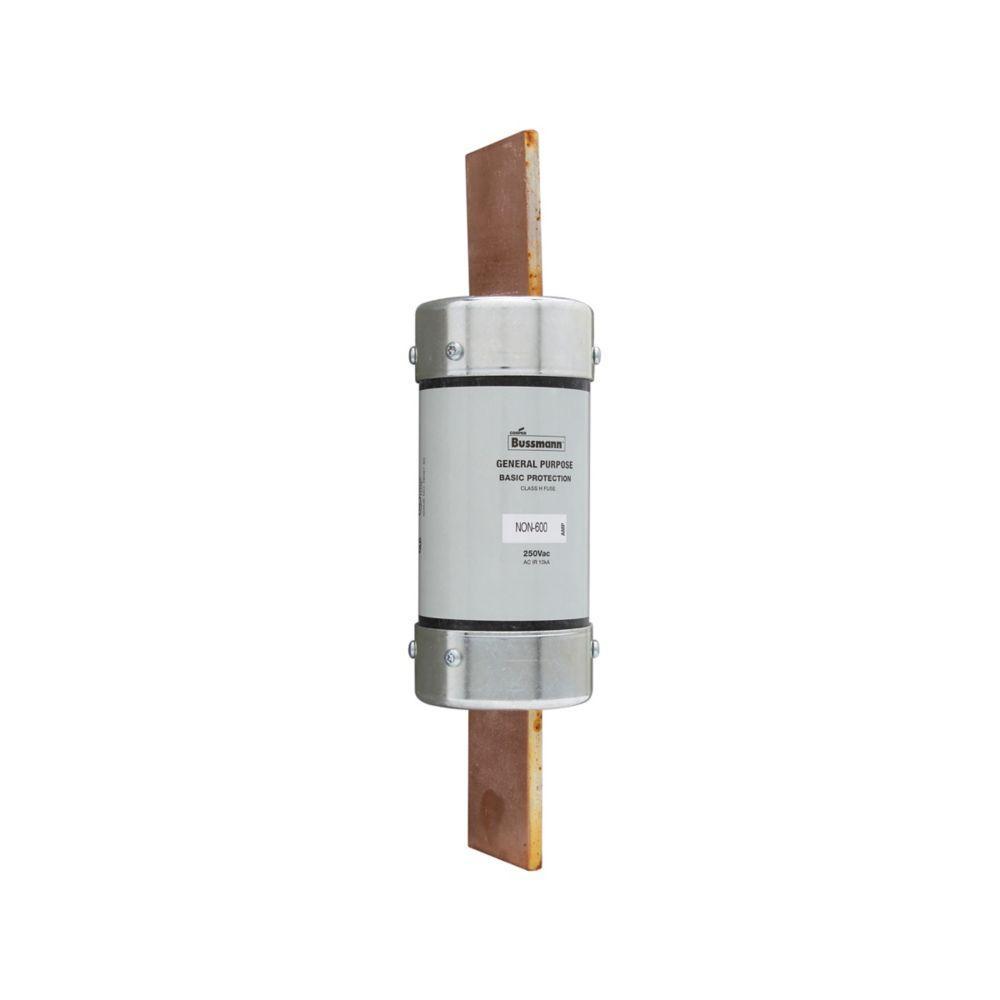

Bussmann NON-600 General Purpose Fuse
Part Number # NON-600
SKU # 2347566
$433.29 / Each
Bussmann NON-600 Key Features
Brand: Bussmann
Part Number # NON-600
SKU #2347566
Amperage Rating: 600, 600 A
Body Type: Cartridge, Cartridge Blade
Class: H
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 10, 10 kAIC
Rejection/Non-Rejection: Rejection
Series: NON
Terminal Type: Blade, Blade End
Type: Non-Current Limiting One Time, One-Time Non-Current Limiting
Voltage Rating: 250, 250 VAC
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121605
UPC: 00051712306003
$433.29 / Each
- Bussmann Fuse, One-Time Non-Current Limiting, Series: NON, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 600 A, 250 VAC, 10 kAIC Interrupt, Class: H, Blade End Terminal, Holder Mount, Cartridge Body Type, Melamine, 2.59 in Dia x 10.38 in L Body Size
NON-600 Application
Industrial Facilities and Factory Facility, Safety and Security Systems, Light Duty Circuit Locations ApplicationsNON-600 Item Features
- Original fuse providing circuit protection
- Protect lighting, heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low
- Do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
- Use Bussmann advanced protection Fusetron FRN-R or ultimate protection Low-Peak LPN-RK dual element, time delay fuses
- For general purpose circuits, size at amp rating of circuit
- For motor circuits, size at 300% to 400% according to the NEC motor ampacity tables 430.247/430.250/ 430.6(A)(1)
- One-time fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
NON-600 Standards
CE Certified|CSA Class 1421-01 File No. 53787|UL 248-6 Guide No. JDDZ File No. E4273SKU #2347566Part Number #NON-600UNSPSC39121605UPC00051712306003
