Brand: Bussmann

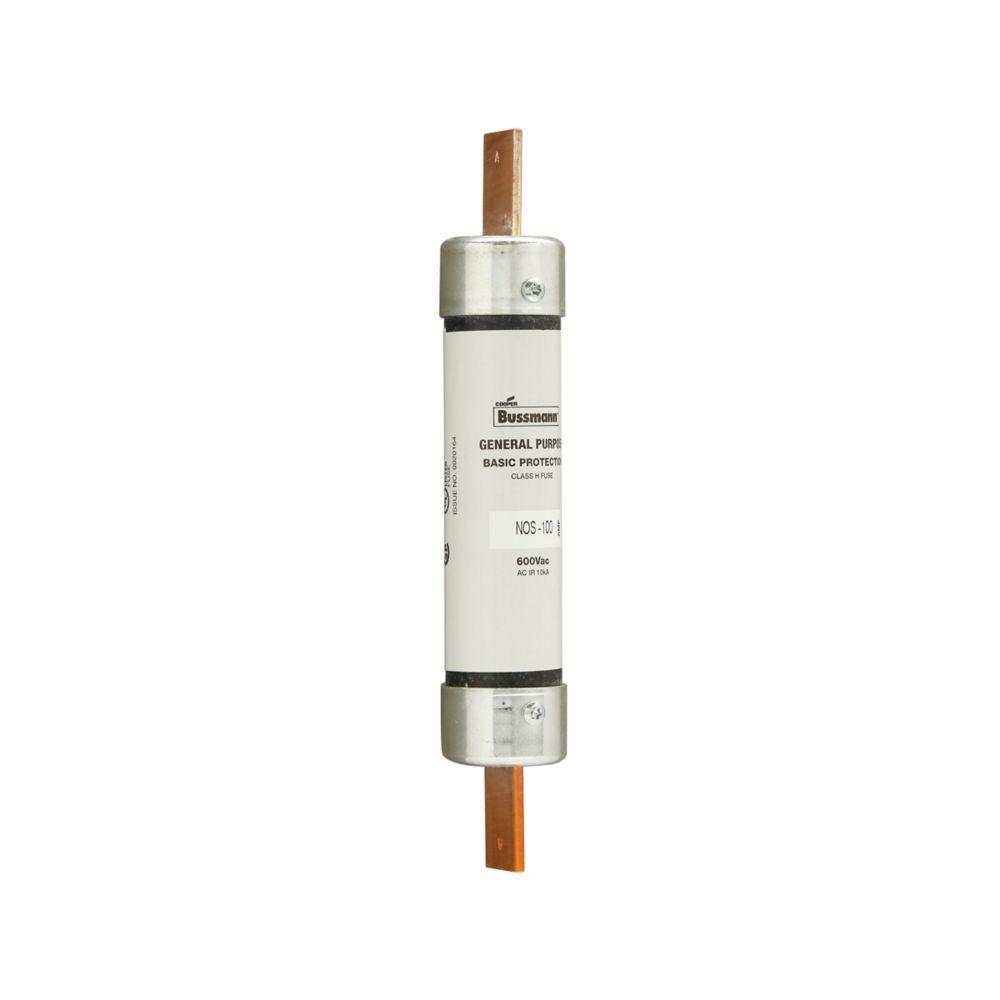

Bussmann NOS-100 General Purpose Fuse
Part Number # NOS-100
SKU # 167998
$127.19 / Each
Bussmann NOS-100 Key Features
Brand: Bussmann
Part Number # NOS-100
SKU #167998
Amperage Rating: 100, 100 A
Body Type: Cartridge, Cartridge Blade
Class: H
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 10, 10 kAIC
Rejection/Non-Rejection: Non-Rejection, Rejection
Series: NOS
Terminal Type: Blade, Blade End
Type: Non-Current Limiting One Time, One-Time Non-Current Limiting
Voltage Rating: 600, 600 VAC
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121605
UPC: 00051712311007
$127.19 / Each
Bussmann NOS-100 General Purpose Fuse
Brand: Bussmann
Part Number: NOS-100
Bussmann Fuse, One-Time Non-Current Limiting, Series: NOS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 100 A, 600 VAC, 10 kAIC Interrupt, Class: H, Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 1.34 in Dia x 7.9 in L Body Size
Additional Description: BUSS-NOS-100 BUSS ONE TIME FUSE
Catalog Description: Eaton Bussmann Series Class K5 fuse, NOS, general purpose, non-current-limiting fuses, 100 A, one-time fuse, interrupting rating of 10 kA at 600 Vac
NOS-100 Application
Industrial Facilities and Factory Facility, Safety and Security Systems, Light Duty Circuit Locations ApplicationsNOS-100 Item Features
- Original fuse providing circuit protection
- Protect lighting, heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low
- Do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
- Use Bussmann advanced protection Fusetron LPS-R or ultimate protection Low-Peak LPS-RK dual element, time delay fuses
- For general purpose circuits, size at amp rating of circuit
- For motor circuits, size at 300% to 400% according to the NEC motor ampacity tables 430.247/430.250/ 430.6(A)(1)
- One-time fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
NOS-100 Standards
CE Certified|CSA Class 1421-01 File No. 53787|UL 248-6 Guide No. JDDZ File No. E4273SKU #167998Part Number #NOS-100UNSPSC39121605UPC00051712311007
