- Original fuse providing circuit protection
- Protect lighting, heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low
- Do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
- Use Bussmann advanced protection Fusetron LPS-R or ultimate protection Low-Peak LPS-RK dual element, time delay fuses
- For general purpose circuits, size at amp rating of circuit
- For motor circuits, size at 300% to 400% according to the NEC motor ampacity tables 430.247/430.250/ 430.6(A)(1)
- One-time fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 250, 250 A
Body Type: Cartridge, Cartridge Blade
Class: H
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 10, 10 kAIC
Rejection/Non-Rejection: Non-Rejection, Rejection
Series: NOS
Terminal Type: Blade, Blade End
Type: Non-Current Limiting One Time, One-Time Non-Current Limiting
Voltage Rating: 600, 600 VAC
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121605
UPC: 00051712312509

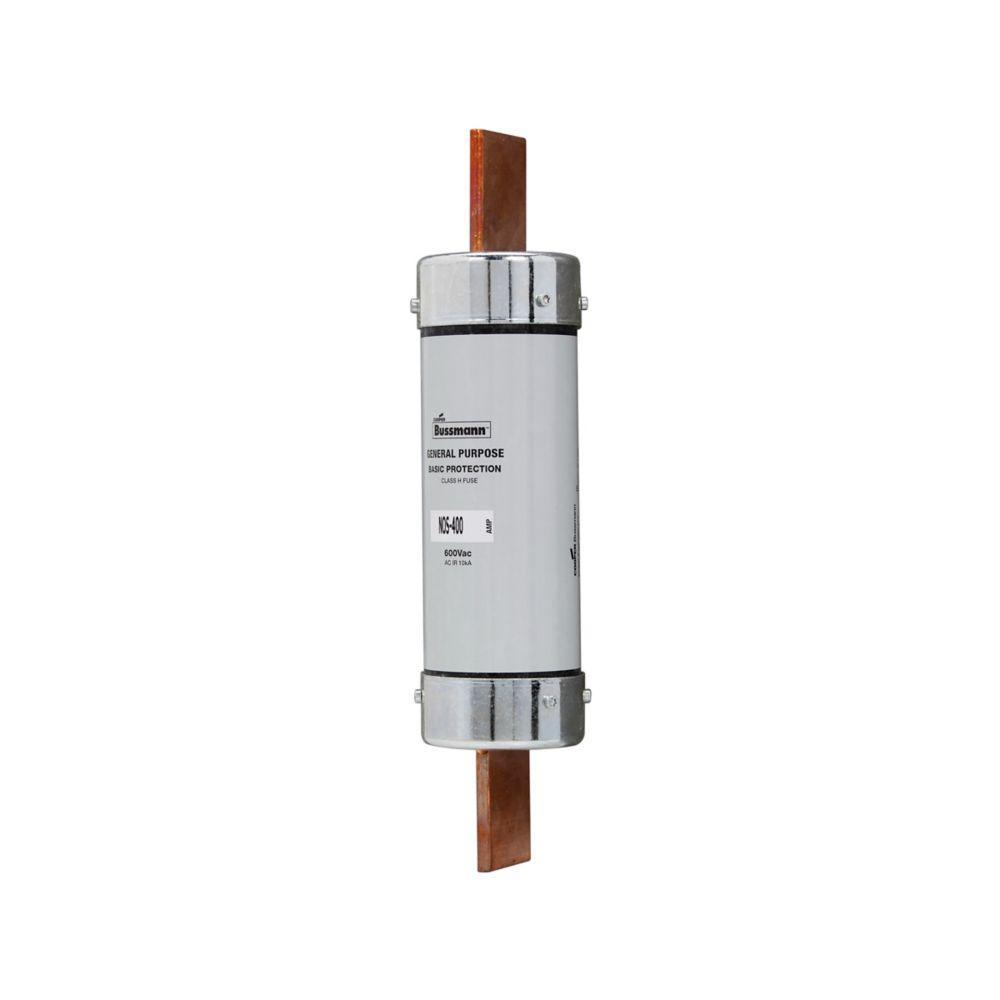

Bussmann NOS-250 General Purpose Fuse
Bussmann Fuse, One-Time Non-Current Limiting, Series: NOS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 250 A, 600 VAC, 10 kAIC Interrupt, Class: H, Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 2.59 in Dia x 11.63 in L Body Size
Additional Description: BUSS-NOS-250 (N) BUSS ONE TIME FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series Class K5 fuse, NOS, general purpose, non-current-limiting fuses, 250 A, one-time fuse, interrupting rating of 10 kA at 600 Vac
Item FeaturesIndustrial Facilities and Factory Facility, Safety and Security Systems, Light Duty Circuit Locations Applications
Item Features
Item FeaturesCE Certified|CSA Class 1421-01 File No. 53787|UL 248-6 Guide No. JDDZ File No. E4273
