Part Number # NOS-35
SKU # 2153830
NOS-35
Bussmann NOS-35 One-Time Fuse
Part Number # NOS-35
SKU # 2153830
Bussmann NOS-35 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | NOS-35 |
| SKU #: | 2153830 |
| Amperage Rating: | 35, 35 A |
| Body Type: | Cylindrical |
| Class: | K5 |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 50, 50 kAIC |
| Rejection/Non-Rejection: | Non-Rejection, Rejection |
| Series: | NOS |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | General Purpose Fast Acting Non-Current Limiting, One-Time General Purpose Fast Acting Non-Current Limiting |
| Country of origin: | MX |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121605 |
| UPC: | 00051712310352 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann NOS-35 One-Time Fuse
Brand: Bussmann
Part Number: NOS-35
Bussmann Fuse, One-Time General Purpose Fast Acting Non-Current Limiting, Series: NOS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 35 A, 600 VAC, 50 kAIC Interrupt, Class: K5, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 1.06 in Dia x 5.5 in L Body Size
Additional Description: BUSS-NOS-35 BUSS ONE TIME FUSE
Catalog Description: Eaton Bussmann Series Class K5 fuse, NOS, general purpose, non-current-limiting fuses, 35 A, one-time fuse, interrupting rating of 50 kA at 600 Vac
NOS-35 Application
Industrial Facilities and Factory Facility, Safety and Security Systems, Light Duty Circuit Locations ApplicationsNOS-35 Item Features
- Protect lighting, heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low
- One-time fuses do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
- Use Bussmann advanced protection Fusetron LPS-R or ultimate protection Low-Peak LPS-RK dual element, time delay fuses
- For general purpose circuits, size at amp rating of circuit
- For motor circuits, size at 300% to 400% according to the NEC motor ampacity tables 430.247/430.250/ 430.6(A)(1)
- One-time fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
NOS-35 Standards
CE MarkedSKU #2153830Part Number #NOS-35UNSPSC39121605UPC00051712310352

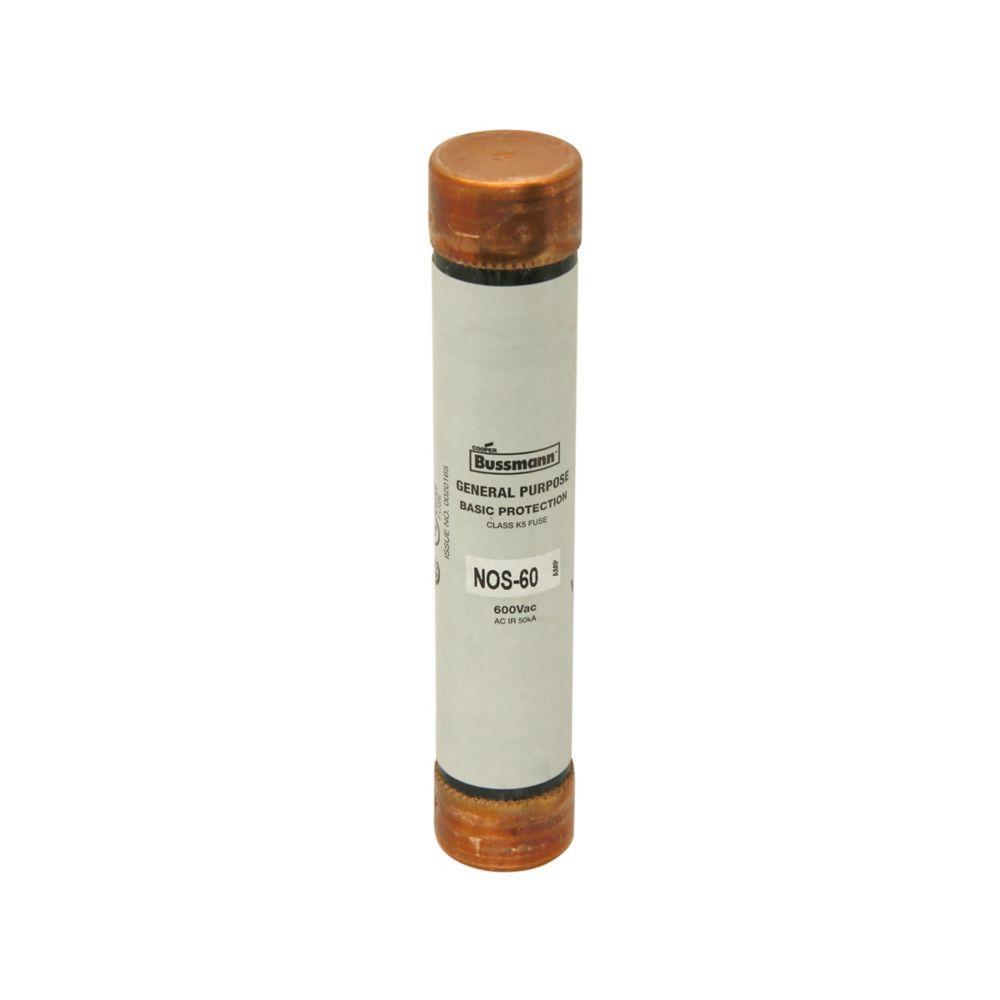

Image provided may only be a representation of final product and may include optional equipment
