Part Number # T-30
SKU # 8464
T-30

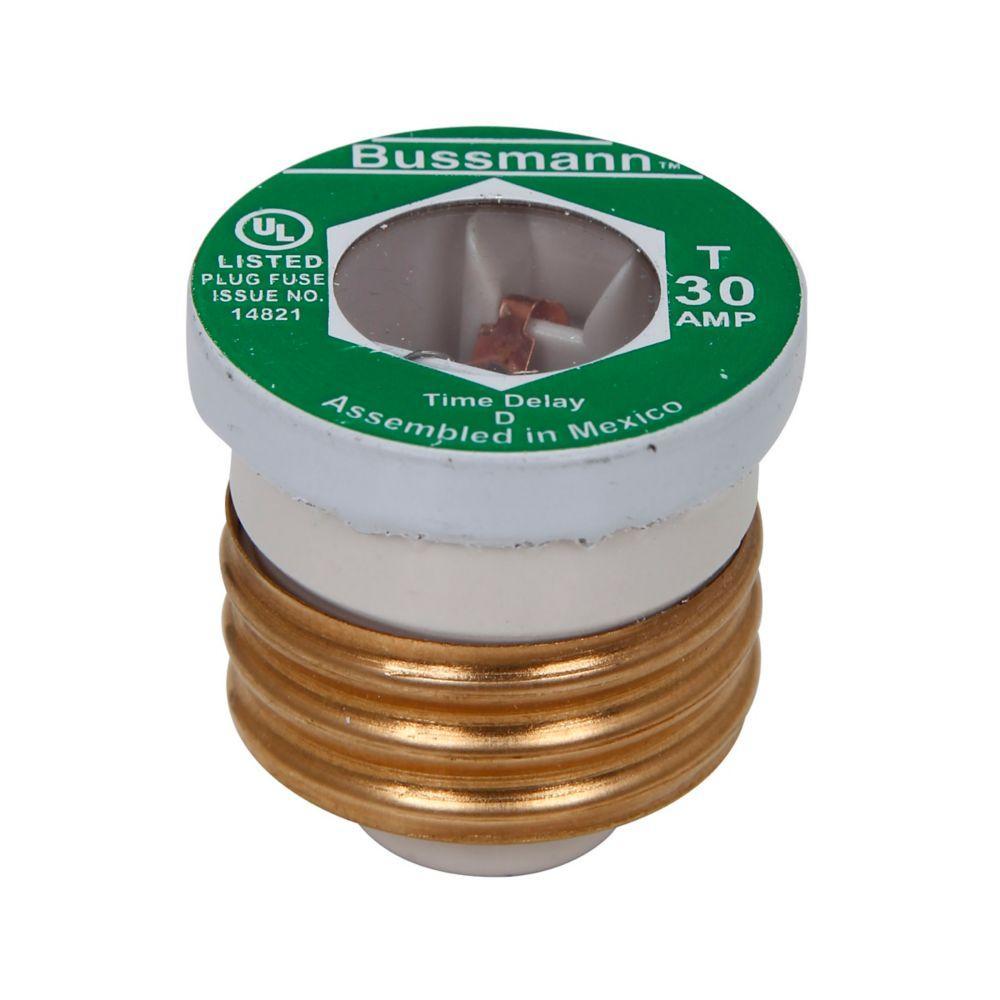

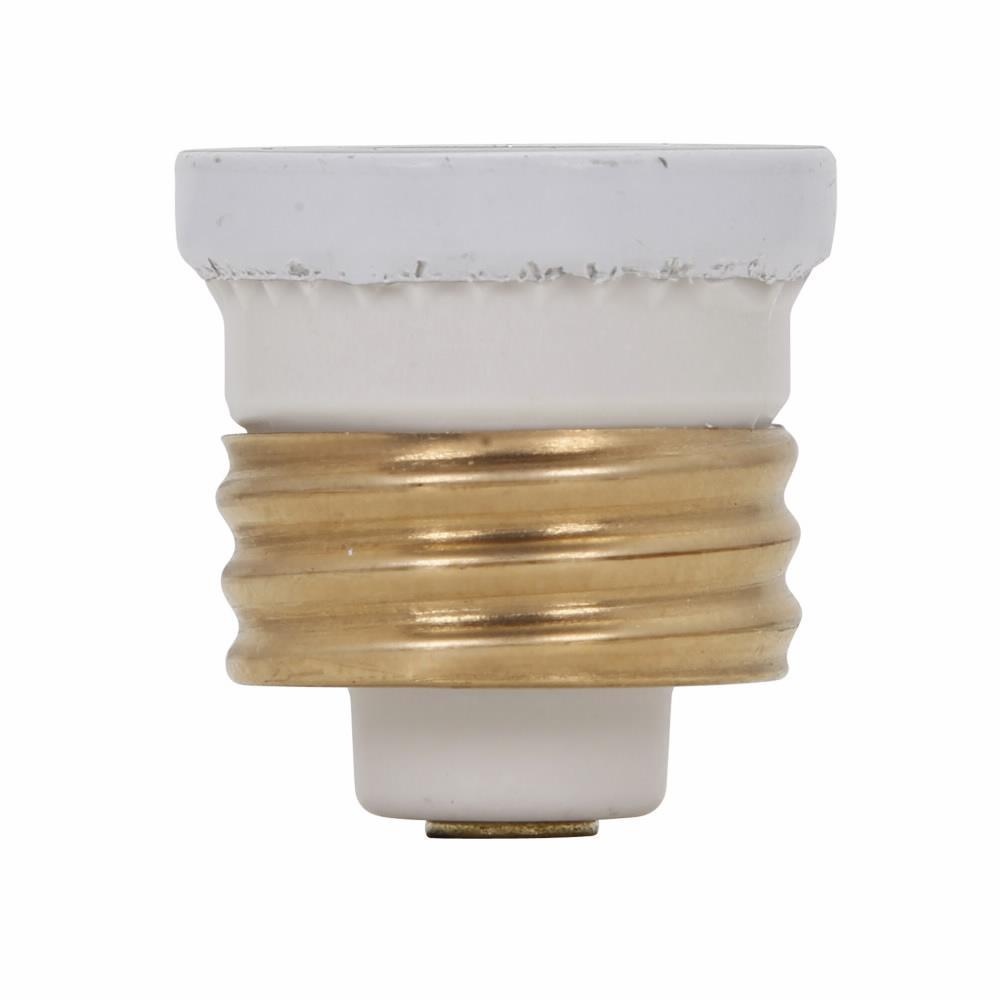

Bussmann T-30 Plug Fuse
Part Number # T-30
SKU # 8464
Bussmann T-30 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | T-30 |
| SKU #: | 8464 |
| Amperage Rating: | 30, 30 A |
| Body Type: | Round |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 10, 10 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | T Series |
| Short Circuit Current Rating (kA): | 10 kA |
| Terminal Type: | Stud |
| Type: | Heavy Duty Time Delay, Type T Heavy Duty Time Delay |
| Country of origin: | MX |
| Material: | Plastic, Plastic Body/Brass Thread |
| Mounting type: | Threaded |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121605 |
| UPC: | 00051712101240 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann T-30 Plug Fuse
Brand: Bussmann
Part Number: T-30
Bussmann Fusetron Plug Fuse, Heavy Duty Time Delay, Series: T Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 125 VAC, 10 kAIC Interrupt, 10 kA Short Circuit Current Rating, Stud Terminal, Threaded Mount, Round Body Type, Dual Element, Plastic Body/Brass Thread
Additional Description: BUSS-T-30 FUSETRON DUAL ELEMENT FUSE TYPE T
Catalog Description: Eaton Bussmann series Type T plug fuse, plug fuse, time delay, heavy duty, 30 A, 125 Vac, 10 kAIC (RMS Symmetrical) interrupt rating, 10 kA short circuit rating, threaded mount, duel element, plastic body, brass thread, edison base
T-30 Application
Residential Buildings and Facilities, For box cover units to provide small motor overload protection ApplicationsT-30 Item Features
- Edison base threads into non-rejection fuse receptacles
- Heavy duty dual element construction for motor circuits
- This spring loaded design provides superior short circuit and overload protection
- Use to protect critical motor circuits or motors that cycle On/Off frequently
- The T-fuses have more time delay than the medium duty fuses in order to better protect industrial motors and critical residential circuits
- https://www.youtube.com/watch?v=YMvqUyoETXk
T-30 Standards
CSA Certified|Class 1423-01|CSA File No. 53787|CE Certified|UL 248-11|UL Guide JEFV|UL File No. E12112SKU #8464Part Number #T-30UNSPSC39121605UPC00051712101240
Image provided may only be a representation of final product and may include optional equipment
