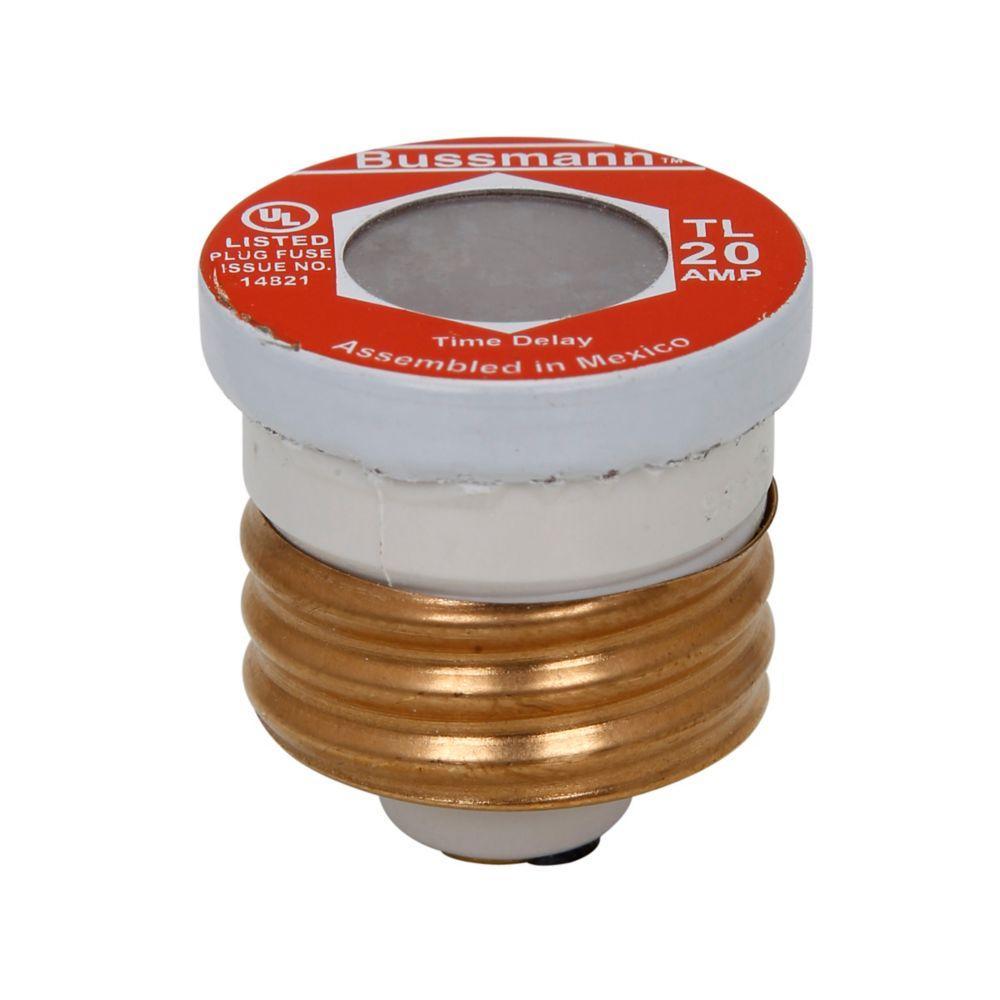

Bussmann TL-20 Plug Fuse
Part Number # TL-20
SKU # 8482
Bussmann TL-20 Key Features
Bussmann TL-20 Plug Fuse
Brand: Bussmann
Part Number: TL-20
Bussmann Fusetron Plug Fuse, Low Voltage Time Delay, Series: TL Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 20 A, 125 VAC, 10 kAIC Interrupt, 10 kA Short Circuit Current Rating, Stud Terminal, Threaded Mount, Edison Base/Round Body Type, Single Element, Plastic Body/Brass Thread, 1.12 in L x 1.12 in W x 1.2 in H Body Size
Additional Description: BUSS-TL-20 TRON TIME DELAY PLUG FUSE TYPE TL FUS
Catalog Description: Eaton Bussmann series Type TL plug fuse, plug fuse, time delay, 20 A, 125 Vac, 10 kAIC (RMS Symmetrical) interrupt rating, 10 kA short circuit rating, threaded mount, plastic body, brass thread, edison base
TL-20 Application
Residential Buildings and Facilities, Small Motor and High Inductive Load Circuits with High In-Rush Current Levels, Box Cover Units to Provide Equipment Protection and Residential or Light ApplicationsTL-20 Item Features
- Time delay loaded link TL series Edison base plug fuses pass motor overload starting currents without opening and allow closer sizing to motor load for added protection
- Time delay loaded link SL series fuses provide a rejection feature (when used alone or with Fustat adapters to retrofit Edison base holders) to help prevent over fusing
- https://www.youtube.com/watch?v=YMvqUyoETXk
TL-20 Standards
CE Certified|UL 248-11 Guide No. JEFV File No. E12112SKU #8482Part Number #TL-20UNSPSC39121605UPC00051712101325
