EFDC21105

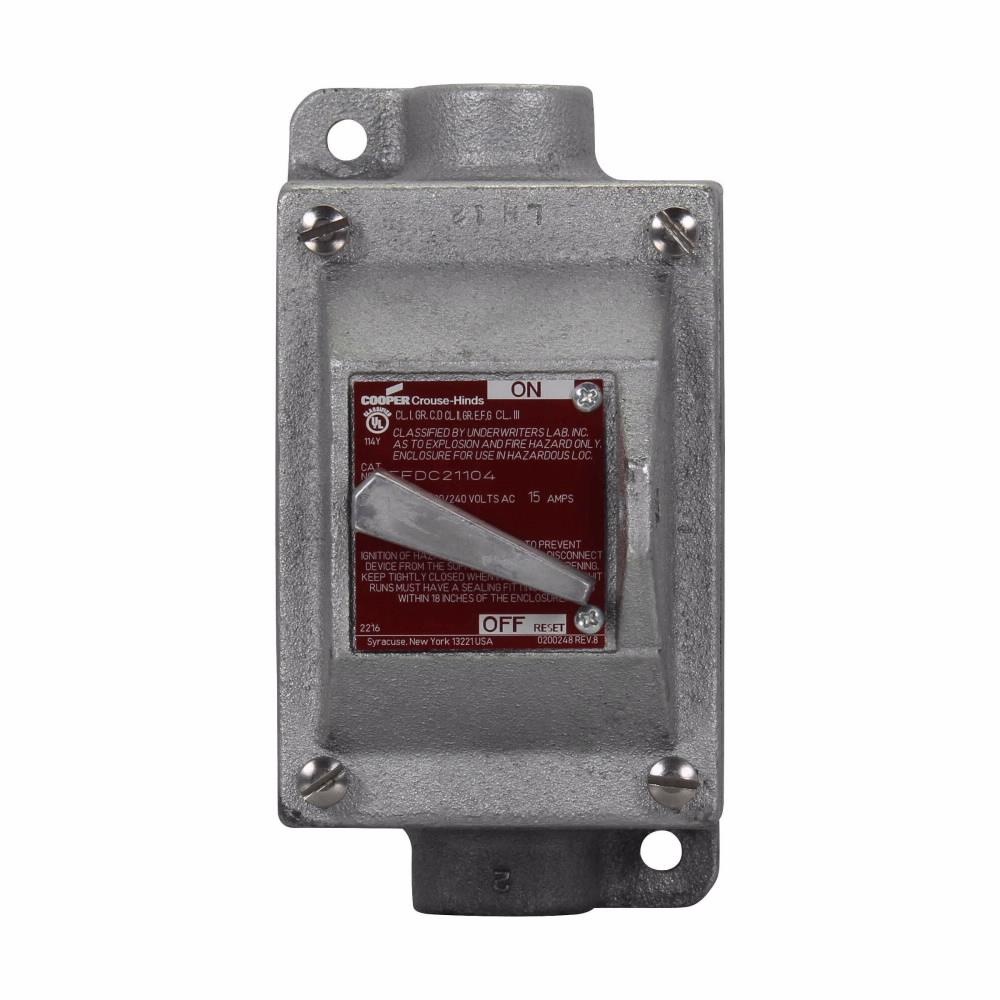

Crouse Hinds EFDC21105 Circuit Breaker
Part Number # EFDC21105
SKU # 2291039
Crouse Hinds EFDC21105 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EFDC21105 |
| SKU #: | 2291039 |
| Actuator Type: | Handle |
| Dimensions: | 3-1/2 in L x 3 in W x 6-3/32 in H |
| Enclosure Type: | NEMA 3/7B/7C/7D/9E/9F/9G/12 |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Frame: | QOU |
| Series: | EFD |
| Trip Type: | Thermal Magnetic |
| Type: | 1-Gang Explosionproof |
| Connection type: | Bolted/Ground Joint/Feed-Through |
| Material: | Feraloy Iron Alloy |
| UNSPSC: | 39121601 |
| UPC: | 00782274033891 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds EFDC21105 Circuit Breaker
Brand: Crouse Hinds
Part Number: EFDC21105
Crouse-Hinds Square D Circuit Breaker, 1-Gang Explosionproof, Series: EFD, 120/240 VAC, 20 A, QOU Frame, Thermal Magnetic Trip, 1 Pole, Handle Actuator, Bolted/Ground Joint/Feed-Through Connection, NEMA 3/7B/7C/7D/9E/9F/9G/12 Enclosure, 3-1/2 in L x 3 in W x 6-3/32 in H Dimensions, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
Additional Description: CRHD-EFDC21105 (N) EFD CIR BRK-CIRCUIT BREAKERS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series EFD circuit breaker, 20A, Bolted/ground joint cover construction, Feraloy iron alloy, Square D breaker, Single-gang, Single-pole, Through feed, 3/4", 120/240 Vac
EFDC21105 Application
Industrial Facilities, Factories, Power Distribution and Control, Lighting, Appliance, Motor Circuits and Wet Location ApplicationsEFDC21105 Item Features
- Explosionproof, dust ignitionproof and raintight
- Small, compact enclosures with accurately ground, wide flange on both body and cover for flametight joint
- Breaker mounted on cover and back wired for ease of installation
- Breaker can be padlocked in on or off positions with trip-free handle mechanism
- For branch circuit protection for lighting, appliance and motor circuits
- To provide disconnect means, short circuit protection and thermal time delay overload protection
- For installation at petroleum refineries, chemical and petrochemical plants and other process industry facilities where similar hazards exist
- 3/4 in hub
EFDC21105 Standards
NEC Class I, Division 1/2, Group B/C/D, Class II, Division 1, Group E/F/G, Class II, Division 2, Group F/G, Class IIISKU #2291039Part Number #EFDC21105UNSPSC39121601UPC00782274033891
