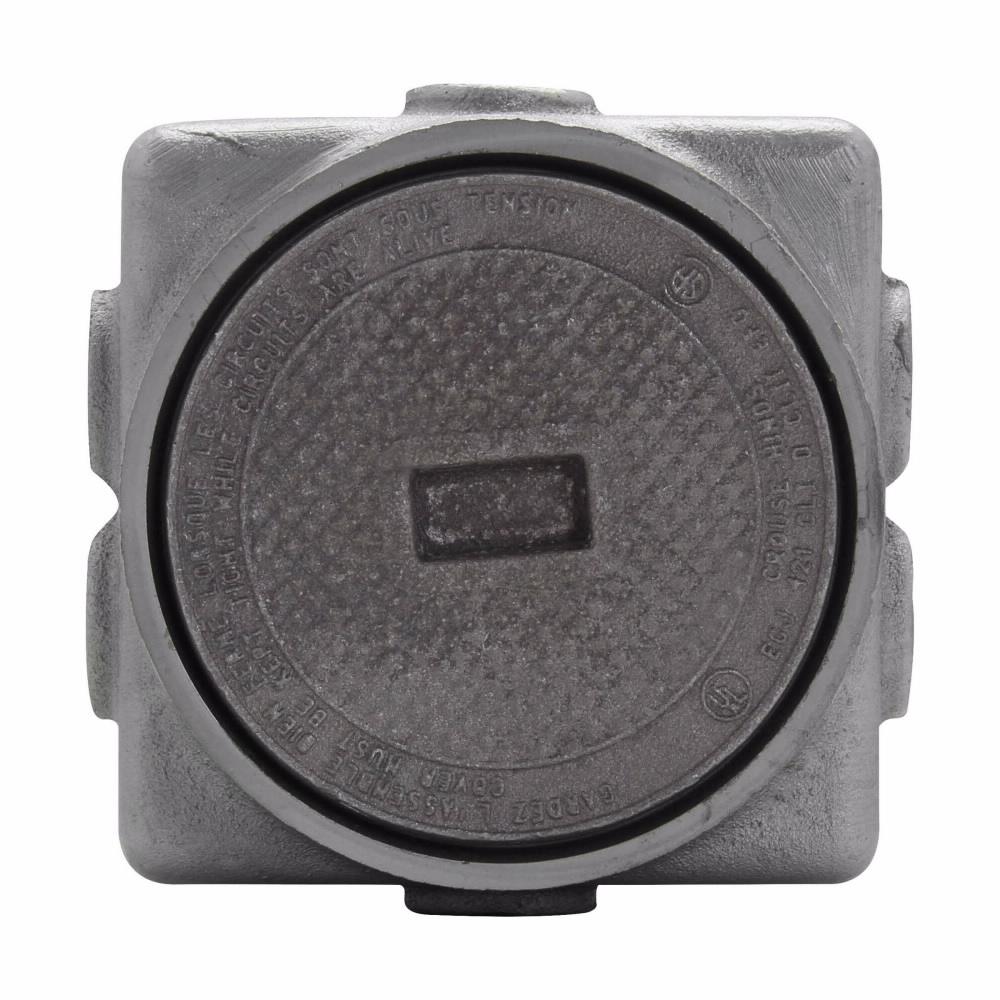

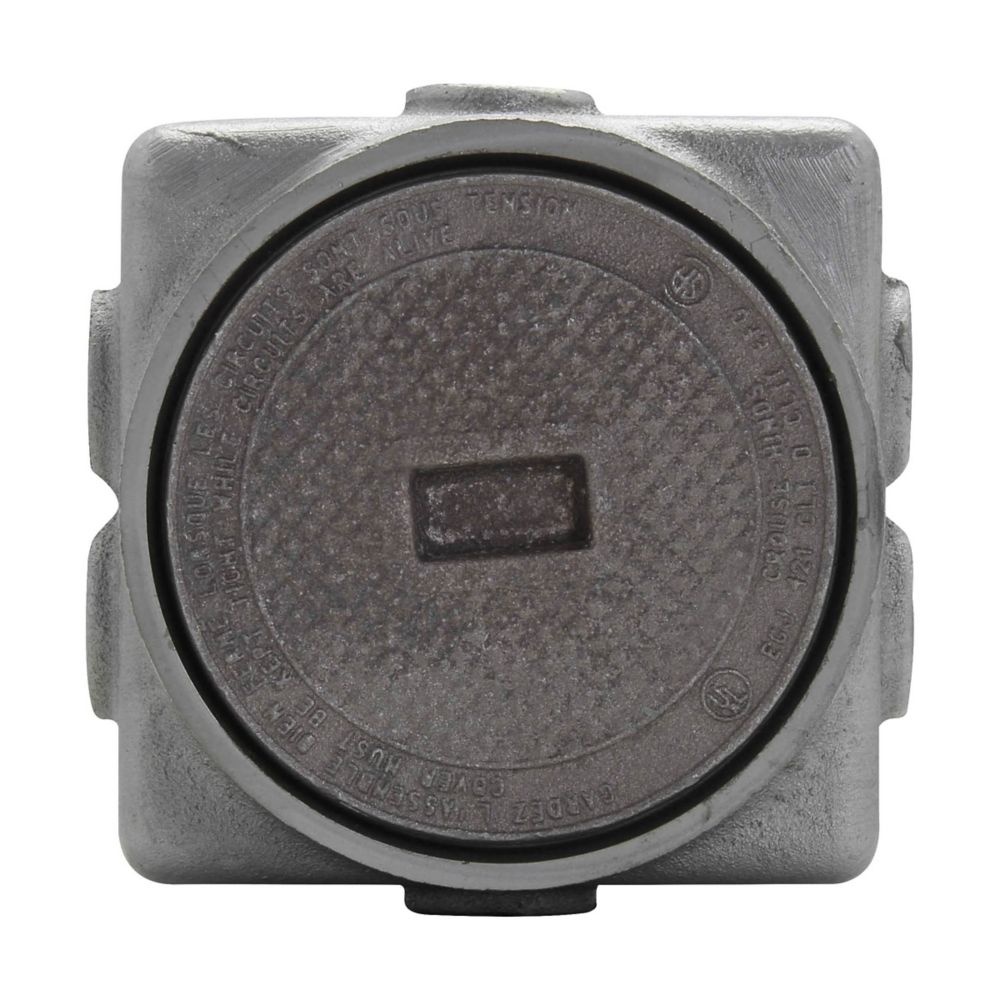

Crouse Hinds EGJ422 Junction Box
Part Number # EGJ422
SKU # 2372346
$958.15 / Each
Crouse Hinds EGJ422 Key Features
Brand: Crouse Hinds
Part Number # EGJ422
SKU #2372346
Series: EGJ
Country of origin: US
Depth: 5-9/32 in
Material: Feraloy Iron Alloy, Feraloy® Iron Alloy
Width: 7 in
Manufacturer Name: Eaton
UNSPSC: 39121314
UPC: 00782274300702
$958.15 / Each
Crouse Hinds EGJ422 Junction Box
Brand: Crouse Hinds
Part Number: EGJ422
Crouse-Hinds Junction Box, Series: EGJ, 7 in Width, 5-9/32 in Depth, Feraloy Iron Alloy
Additional Description: CRHD-EGJ422 HAZARDOUS AREA JUNCTION BOX JUNC BX JUNC B
Catalog Description: Eaton Crouse-Hinds series EGJ junction box, 1" back hubs, 5-9/32" depth, Feraloy iron alloy, 2 back hubs, 6 side hubs, 3/4" side hubs
EGJ422 Application
Concrete Pump Island of Gasoline Service StationEGJ422 Item Features
- Cover sealed with O-ring gasket to make unit raintight
- Cover recess will accept tool used to open cover of gasoline storage tank
- Two drilled and tapped conduit entrances on the bottom and six on the sides
- ES sealing hubs thread into the bottom to seal the mainfeed
- Caulking compound supplied for filling space between cover flange and body rim to prevent accumulation of water, dirt and ice, compound remains pliable and is easily removed
- Unused conduit entrances must be securely plugged with type PLG threaded pipe plugs to maintain flametight conditions
- Explosionproof, dust-ignitionproof
- 3/4 in 6 side hub and 3/4 in 2 side hub
- Four drilled and tapped conduit entrances in the back
EGJ422 Standards
BAA Compliant|CSA C22.2|NEC/CEC Certified|UL 1203SKU #2372346Part Number #EGJ422UNSPSC39121314UPC00782274300702
