CRX0052BC

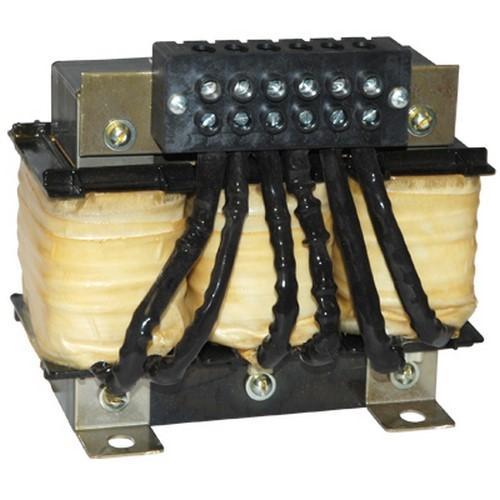

Hammond Power Solutions CRX0052BC R Line Reactor
Part Number # CRX0052BC
SKU # 2312788
$376.19 / Each
Typical price:$474.00 / Each
Hammond Power Solutions CRX0052BC Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | CRX0052BC |
| SKU #: | 2312788 |
| Amperage Rating: | 52, 52 A |
| Horsepower: | 40, 40 hp |
| Impedance: | 0.03, 3 |
| Inductance: | 0.43, 0.43 mH |
| Phase: | 3, 3 ph |
| Series: | CRX, Centurion R |
| Type: | Air Core and Coil, Core and Coil |
| Country of origin: | CA |
| Depth: | 4.69, 4.69 in |
| Height: | 6.38, 6.38 in |
| Material: | Iron |
| Mounting type: | Floor/Panel |
| Width: | 7.12, 7.12 in |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121015 |
| UPC: | 00803423117801 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$376.19 / Each
Typical price:$474.00 / Each
Quantity:
- HPS, CRX0052BC, Line Reactor, Air Core and Coil, Series: Centurion R, 480 V AC, 52 A, 40 hp, 3 ph, 0.43 mH Inductance, 0.03 Impedance, 6.38 in Height, 7.12 in Width, 4.69 in Depth, Floor/Panel Mounting, Iron
CRX0052BC Application
Oil and Gas, Irrigation Fields, Wastewater, Food Processing, Pharmaceutical, Steel, Pulp and Paper, HVAC and Automotive ApplicationsCRX0052BC Item Features
- The impedance of the reactors is accurately controlled by maintaining the core gaps in the flux path
- In some HP ranges, bobbins are used to provide exceptional mechanical strength and increase the product reliability
- Every reactor is vacuum pressure impregnated (VPI) with VT (vinyl-toluene) polyester resin to minimize audible noise
- Rugged steel enclosures with UL 50 ANSI 61 gray paint
- Finger proof terminal blocks are provided on rated currents of approximately below 65 A termination
- Terminal pads are supplied on approximately 65 A and above, terminal pads are brazed to ensure electrical integrity
- Mitigate nuisance tripping
- Extend the life of switching components and motors
- Reduce audible motor noise and motor operating temperature
- Mitigate the effect of long lead length
- Minimize harmonic distortion
- Reduce line notching
- Innovative design showcases a unique blend of performance and economy to protect your VFD, motor, capacitors and electrical system from harmonics, damage and nuisance tripping
- Noise level between 58 to 75 dBA
CRX0052BC Standards
Buy American Act Compliant|CE Marking|CSA C22.2 No.47/C9 File No. LR3902|IEC 61558-2-20/61558-2-20|RoHS Compliant|UL 508 File No.E61431SKU #2312788Part Number #CRX0052BCUNSPSC39121015UPC00803423117801
