Part Number # CRX1200AC
SKU # 2361631
CRX1200AC
Hammond Power Solutions CRX1200AC R Line Reactor
Part Number # CRX1200AC
SKU # 2361631
$5555.56 / Each
Typical price:$7000.00 / Each
Hammond Power Solutions CRX1200AC Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | CRX1200AC |
| SKU #: | 2361631 |
| Amperage Rating: | 1200, 1200 A |
| Horsepower: | 1000, 1000 hp |
| Impedance: | 0.03, 3 |
| Inductance: | 0.018, 0.018 mH |
| Phase: | 3, 3 ph |
| Series: | CRX, Centurion R |
| Type: | Air Core and Coil, Core and Coil |
| Country of origin: | CA |
| Depth: | 13-1/4, 13-1/4 in |
| Height: | 18-1/2, 18-1/2 in |
| Material: | Iron |
| Mounting type: | Floor |
| Width: | 17-3/4, 17-3/4 in |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121015 |
| UPC: | 00803423119270 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5555.56 / Each
Typical price:$7000.00 / Each
Quantity:
Hammond Power Solutions CRX1200AC R Line Reactor
Brand: Hammond Power Solutions
Part Number: CRX1200AC
HPS Centurion R Line Reactor, Air Core and Coil, Series: CRX, 480 VAC, 1200 A, 1000 hp, 3 ph, 0.018 mH, 0.03 Impedance, 18-1/2 in Height, 17-3/4 in W, 13-1/4 in D, Floor Mount, Iron
Additional Description: HPS -CRX1200AC REAC 1200A 0.02MH 60HZ CU C&C
Catalog Description: 600V Class Iron Core Reactor, Core and Coil, 1200 Amps, 0.02 Inductance, 60 Hz
CRX1200AC Application
Oil and Gas, Irrigation Fields, Wastewater, Food Processing, Pharmaceutical, Steel, Pulp and Paper, HVAC and Automotive ApplicationsCRX1200AC Item Features
- The impedance of the reactors is accurately controlled by maintaining the core gaps in the flux path
- In some HP ranges, bobbins are used to provide exceptional mechanical strength and increase the product reliability
- Every reactor is vacuum pressure impregnated (VPI) with VT (vinyl-toluene) polyester resin to minimize audible noise
- Rugged steel enclosures with UL 50 ANSI 61 gray paint
- Finger proof terminal blocks are provided on rated currents of approximately below 65 A termination
- Terminal pads are supplied on approximately 65 A and above, terminal pads are brazed to ensure electrical integrity
- Mitigate nuisance tripping
- Extend the life of switching components and motors
- Reduce audible motor noise and motor operating temperature
- Mitigate the effect of long lead length
- Minimize harmonic distortion
- Reduce line notching
- Innovative design showcases a unique blend of performance and economy to protect your VFD, motor, capacitors and electrical system from harmonics, damage and nuisance tripping
- Noise level between 58 to 75 dBA
CRX1200AC Standards
Buy American Act Compliant|CE Marking|CSA C22.2 No.47/C9 File No. LR3902|IEC 61558-2-20/61558-2-20|RoHS Compliant|UL 508 File No.E61431SKU #2361631Part Number #CRX1200ACUNSPSC39121015UPC00803423119270

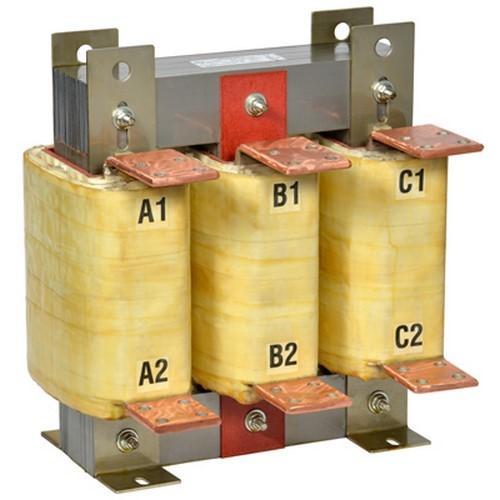

Image provided may only be a representation of final product and may include optional equipment
