Part Number # PH50MQMJ
SKU # 2176210
Image Disclaimers Message
PH50MQMJ

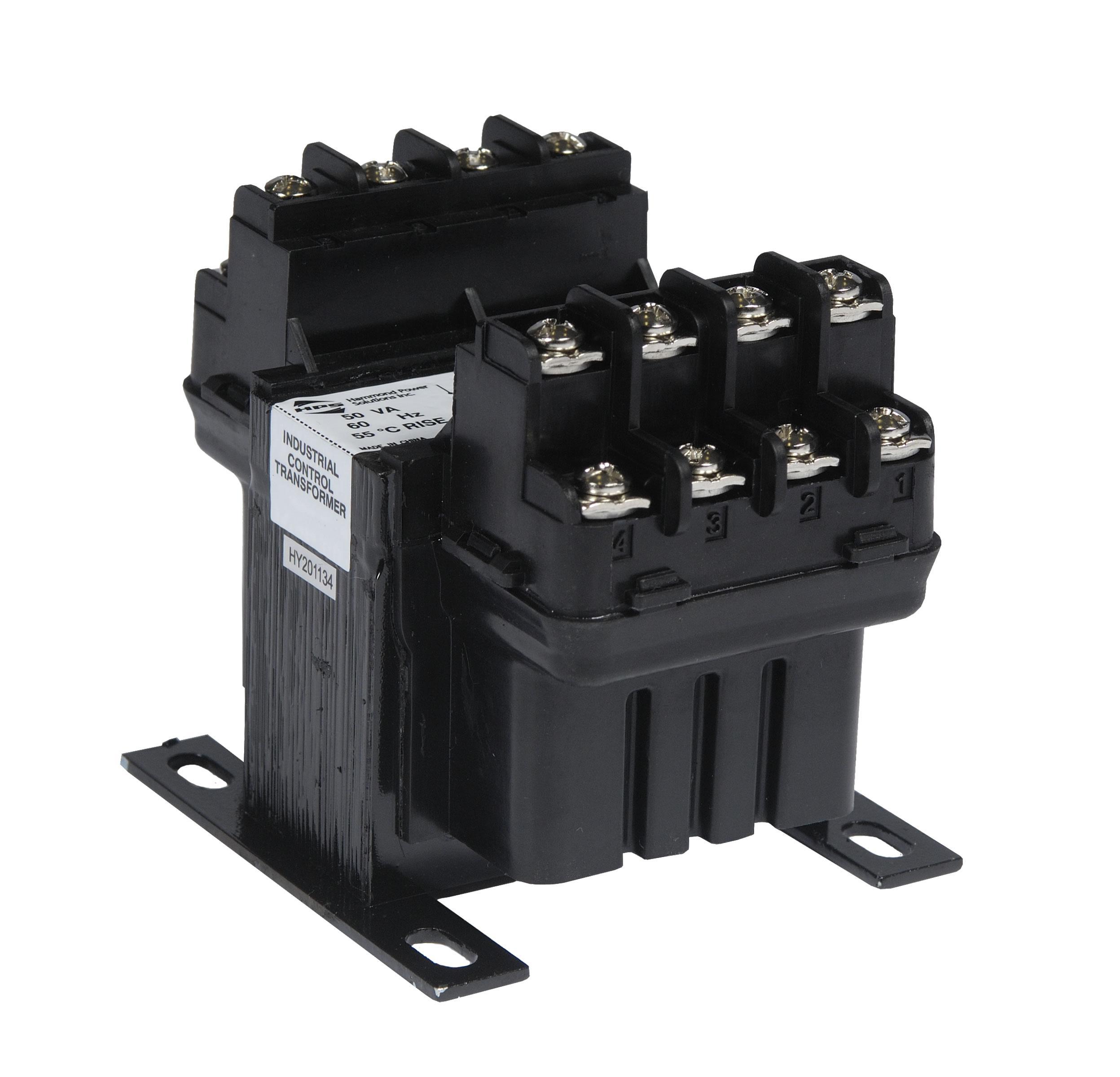

Hammond Power Solutions PH50MQMJ Control Transformer
Part Number # PH50MQMJ
SKU # 2176210
$77.78 / Each
Typical price:$98.00 / Each
Hammond Power Solutions PH50MQMJ Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | PH50MQMJ |
| SKU #: | 2176210 |
| Dimensions: | 3 in L x 4.38 in W x 3.19 in H |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | 105, 105 deg C |
| Maximum Amperage Rating: | 0.42/0.21, 0.42/0.21 A |
| Phase: | 1 |
| Primary Voltage: | 240/480, 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 120/240, 120/240 V AC, 120/240 VAC |
| Series: | Imperator |
| Temperature Rating (Degrees F): | 30, 30 deg C |
| Type: | Industrial Molded Open Style |
| Connection type: | Screw |
| Country of origin: | CN |
| Mounting type: | Panel |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121026 |
| UPC: | 00803423077938 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$77.78 / Each
Typical price:$98.00 / Each
Quantity:
- HPS, PH50MQMJ, Control Transformer, Industrial Molded Open Style, Series: Imperator, 240/480 V AC Primary, 120/240 VAC Secondary, 50 VA Power, 50/60 Hz Frequency, 1 ph, 0.42/0.21 A Maximum, Screw Connection, Panel Mounting, 105 deg C Insulation, 30 deg C, 3 in L x 4.38 in W x 3.19 in H Dimensions
PH50MQMJ Application
Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control and Timer ApplicationsPH50MQMJ Item Features
- Constructed with high quality silicon steel laminations that provide optimum performance and reliability
- Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
- Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
- Combination slot/Philips #6 screw, complete with SEMS washer termination
- Optional finger safe terminal covers available on all units
- Terminal connection numbers molded into terminal block and correspond to nameplate and wiring diagrams, make connecting the HPS Imperator quick and simple
- SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
- Innovative terminal block design provides for easy hook-up and installation of fuse clip
- Custom injection molded coil cover with its unique "fin shaped" design combine superior cooling properties with a clean, bold look
- 240 x 480, 230 x 460, 220 x 440 V primary volt
- 120 x 240, 115 x 230, 110 x 220 V secondary volt
- Encapsulated copper wound coils encased in a custom injection molded cover
- Secondary fuse clips, fuse clip mounting screws and primary and secondary voltage links/jumpers supplied with transformers
- 40 deg C maximum
PH50MQMJ Standards
UL Listed|cULus Listed|RoHS CompliantSKU #2176210Part Number #PH50MQMJUNSPSC39121026UPC00803423077938
