B7CC

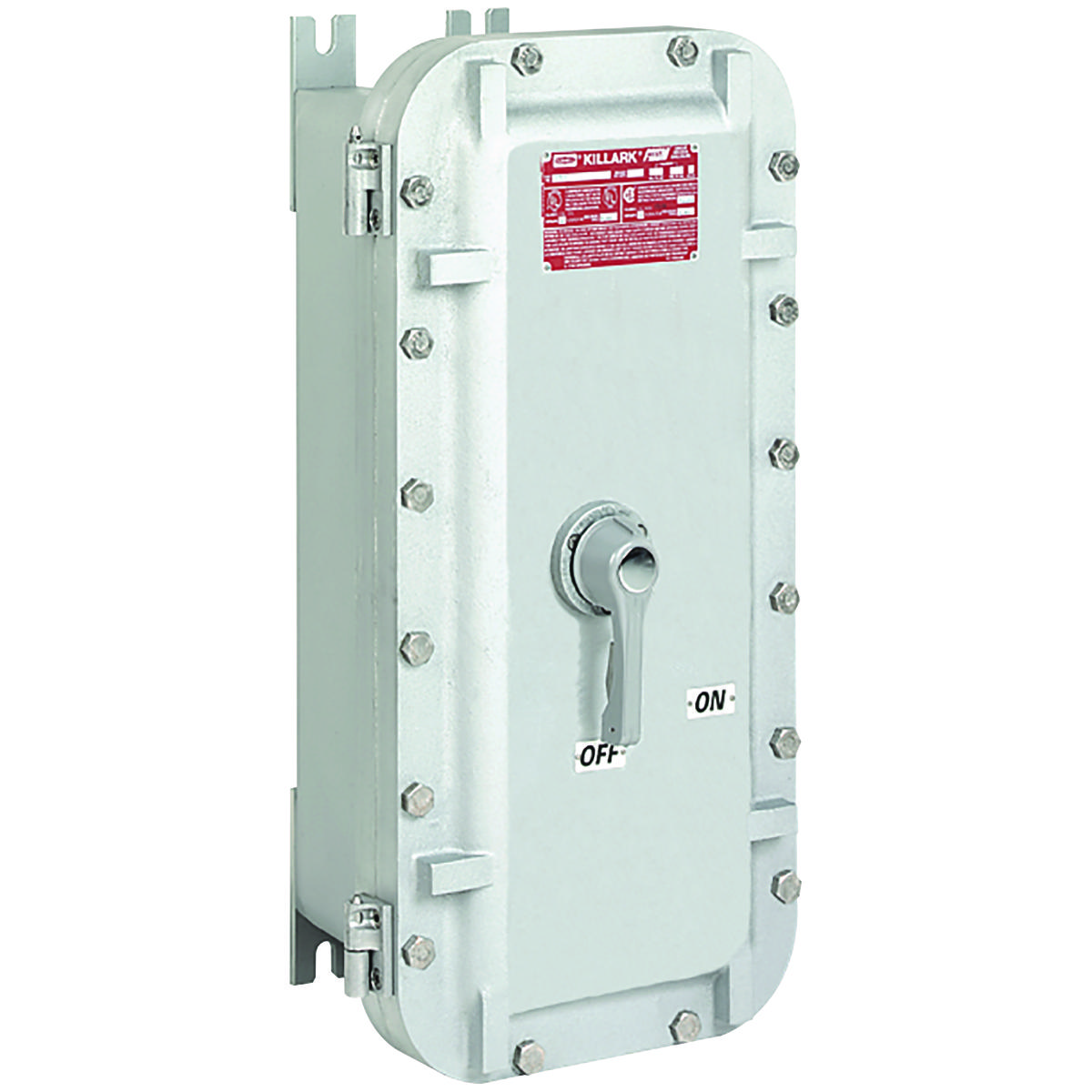

Hubbell B7CC Circuit Breaker Enclosure
Part Number # B7CC
SKU # 2336602
$7849.80 / Each
Hubbell B7CC Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | B7CC |
| SKU #: | 2336602 |
| Electrical Ratings: | 100 A, 60 Hz |
| Finish: | Lacquer |
| Frame: | J, F, FD, T3/T4, J/F/FD/T3/T4 |
| NEMA Rating: | NEMA 3/4/4X/7/9 |
| Series: | B7C, B7C Series |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Country of origin: | US |
| Depth: | 11-1/2, 11-1/2 in |
| Height: | 34-1/4 in |
| Length: | 16-1/4 |
| Material: | Cast Copper-Free Aluminum, Copper-Free Cast Aluminum |
| Mounting type: | Wall |
| Width: | 12.72, 16-1/2 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121601 |
| UPC: | 00783936015903 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7849.80 / Each
Quantity:
Hubbell B7CC Circuit Breaker Enclosure
Brand: Hubbell
Part Number: B7CC
Killark Circuit Breaker Enclosure, Series: B7C, 16-1/2 in Width, 11-1/2 in Depth, 34-1/4 in Height, NEMA 3/4/4X/7/9, Hinged Cover, J/F/FD/T3/T4 Frame, 100 A, 60 Hz, Wall Mount, 40 deg C, Cast Copper-Free Aluminum, Lacquer
Additional Description: KILL-B7CC ENCL,CIRCUIT BREAKER 250A CLI
Catalog Description: B7C Series - Aluminum Circuit Breaker Enclosure - 250A Max
B7CC Application
For locations such as petroleum refineries, chemical and petroleum plants with indoor and outdoor processes, motor control and circuit protection in locations made hazardous due to the presence of flammable gases or vapors, combustible dust or easily ignitable fiber and flyings and areas which are subject to corrosion, weather and dampnessB7CC Item Features
- High strength, lighter weight, corrosion-resistant
- Hinged cover is standard (left side hinge)
- More wiring room, meets the latest NEC/CEC wire bending requirements for circuit breaker enclosures
- Ductile mounting lugs made of ductile aluminum alloy to adjust to irregular mounting surfaces without damage to enclosure
- Universal mounting pan sheet aluminum pan is pre-drilled to facilitate easy field installation of major circuit breaker brands
- Provision for grounding supplied as standard
- Conduit openings supplied - standard conduit openings include power conduit top and bottom and a plugged opening suitable for field installation of drain and breather
- Special conduit openings can be supplied at factory or can be field installed
- Breaker handle - provisions for lock "ON"/"OFF" positions with up to 3 padlocks
- Spring loaded to prevent damage of breaker toggle and provides positive handle alignment
- O-ring on shaft to prevent water seeping into enclosure
- Recessed flange notches - flanges are notched to allow for easier cover opening with prying instrument without flange damage
- Gasketed flange - nitrile (buna-N) O-ring gasket is located inside cover bolt circle to prevent water seeping into enclosure
- Quick release, captivated cover bolts of 316 grade stainless steel triple lead bolts require only 3-1/2 turns to disengage
B7CC Standards
CSA File No. LR11714|Class I Divisions 1 and 2 Groups B, C, D|Class I Zones 1 and 2 Groups IIB+H2, IIA|Class II Divisions 1 and 2 Groups E, F, G|Class III Divisions 1 and 2|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|UL File No. E83969SKU #2336602Part Number #B7CCUNSPSC39121601UPC00783936015903
