Part Number # EXB-FDS-1003P
SKU # 2368112
EXB-FDS-1003P

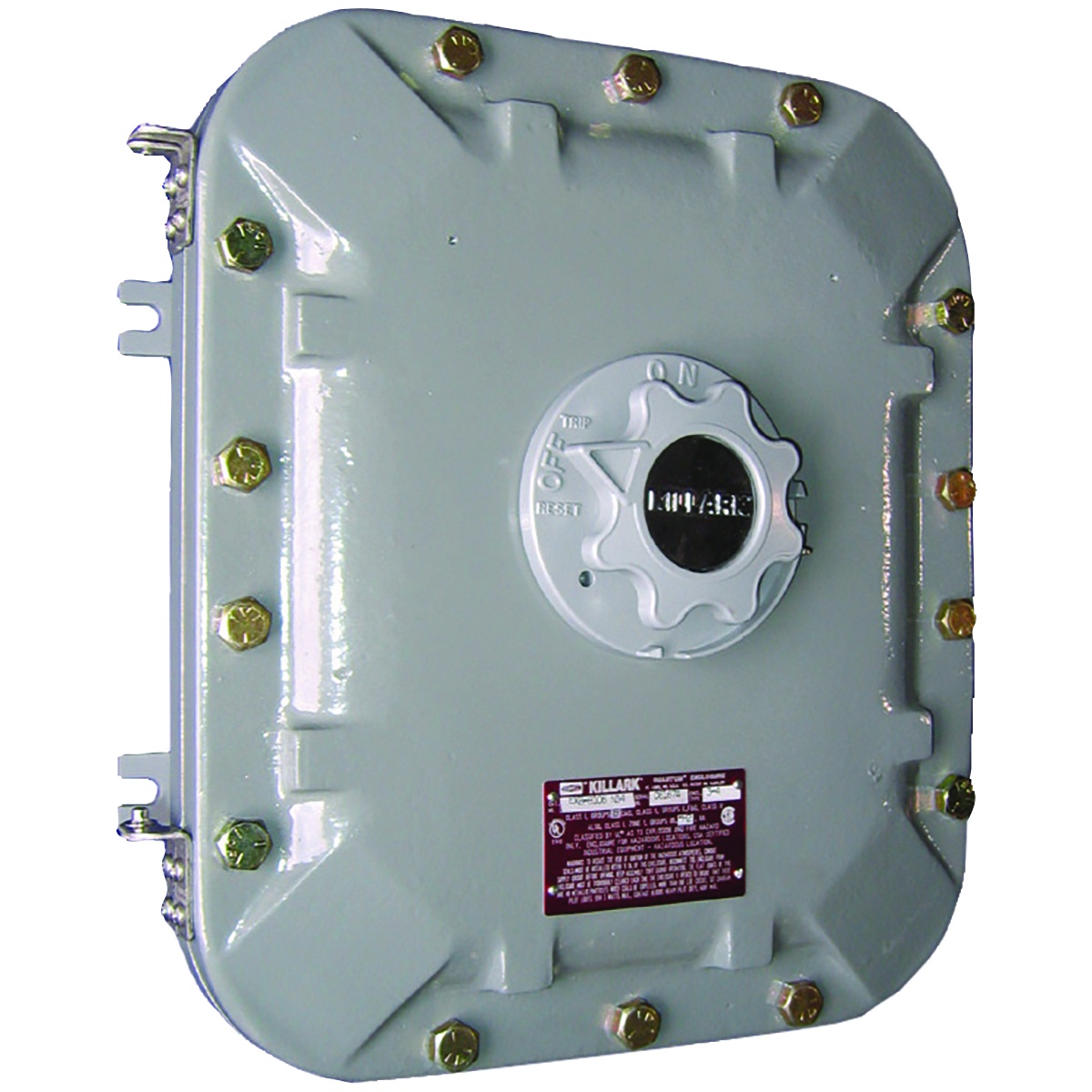

Hubbell EXB-FDS-1003P Disconnect Switch
Part Number # EXB-FDS-1003P
SKU # 2368112
$11445.95 / Each
Hubbell EXB-FDS-1003P Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | EXB-FDS-1003P |
| SKU #: | 2368112 |
| Actuator Type: | Handle |
| Amperage Rating: | 100, 100 A |
| Contact Form: | 3PST |
| Dimensions: | 16-3/8 in L x 12-3/8 in W x 22-3/8 in H |
| Enclosure Type: | NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, NEMA 3/4/4X/7BCD/9EFG |
| Finish: | Lacquer Painted |
| Frequency Rating: | 60, 60 Hz |
| Horsepower: | 75, 75 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 3 |
| Series: | EXB-FDS |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Type: | Fused |
| Material: | Aluminum |
| Mounting type: | Wall |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121601 |
| UPC: | 00783936012162 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11445.95 / Each
Quantity:
- Killark, EXB-FDS-1003P, Disconnect Switch, Fused, Series: EXB-FDS, 600 V AC, 100 A, 75 hp, 3 ph, 60 Hz Frequency, 3 Pole, 4 Wires, 3PST Contact Form, Handle Actuator, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G Enclosure, Wall Mounting, 40 deg C, 16-3/8 in L x 12-3/8 in W x 22-3/8 in H Dimensions, Aluminum, Lacquer Painted
EXB-FDS-1003P Application
Indoor/Outdoor, Wet and Hazardous LocationsEXB-FDS-1003P Item Features
- Ductile mounting lugs adjust to irregular mounting surfaces
- Switch operating handle of copper free aluminum can be padlocked, with up to three locks, in either the "ON" or "OFF" position
- Gasketed flange with O-ring located inside the bolt circle to seal out moisture
- Bodies have top and bottom drilled and taped conduit entrances for power and drain/breather
- Stainless steel hinges are standard
- Fewer cover bolts (no corner bolts required) reduces installation and maintenance time
- Copper free aluminum construction, high strength, lighter in weight and corrosion resistant
EXB-FDS-1003P Standards
CSA LR11716, Class I, Division 1 and 2, Groups B, C, D, Class I, Zones 1 and 2, Groups IIB+H2, IIA, Class II, Division 1 and 2, Groups E, F, G, Class III, Division 1 and 2|UL File No. E10514/E83969/E12379|CSA File No. LR11716|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2368112Part Number #EXB-FDS-1003PUNSPSC39121601UPC00783936012162
Image provided may only be a representation of final product and may include optional equipment
