Part Number # GEBT-5
SKU # 2429827
GEBT-5

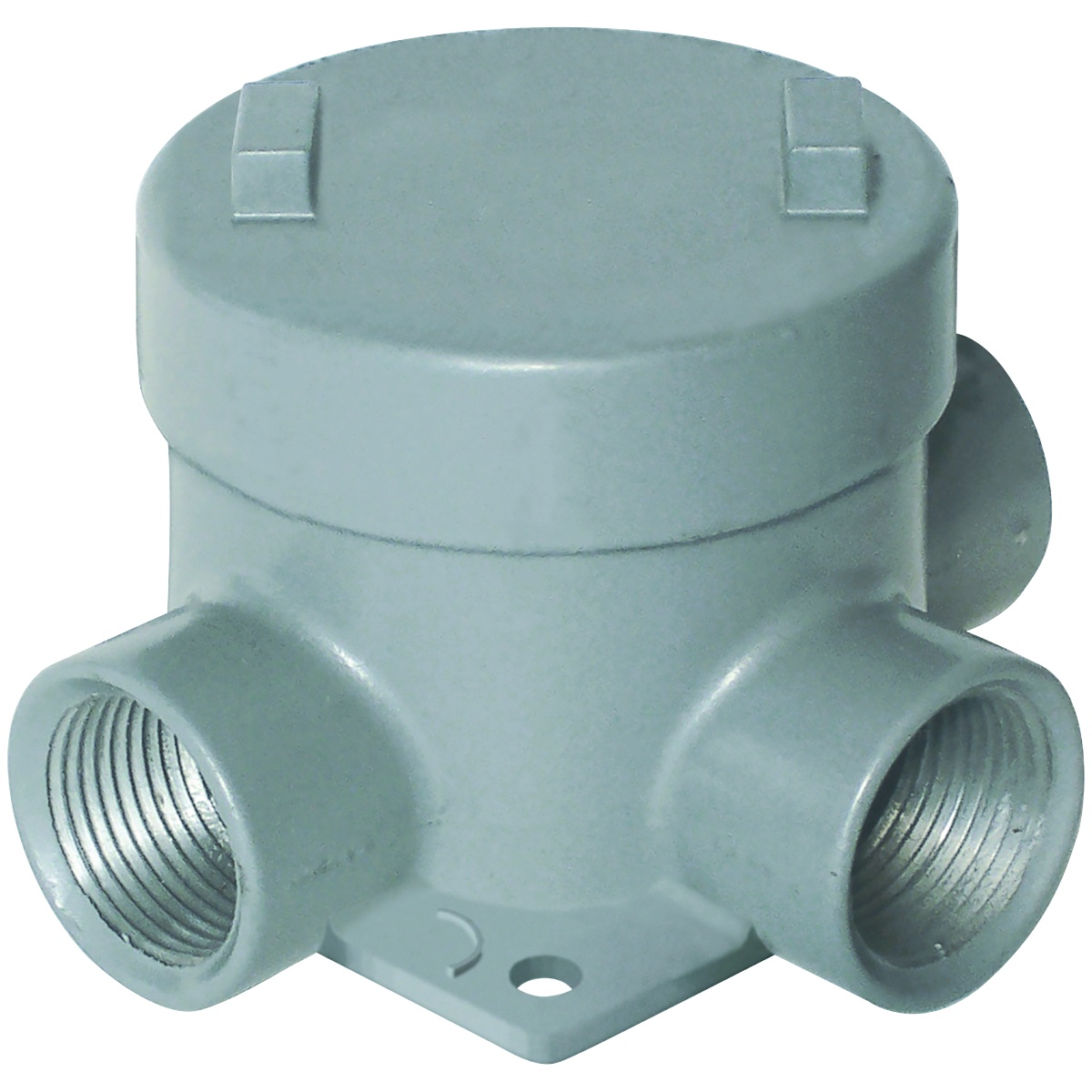

Hubbell GEBT-5 Conduit Outlet Box
Part Number # GEBT-5
SKU # 2429827
$360.32 / Each
Hubbell GEBT-5 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | GEBT-5 |
| SKU #: | 2429827 |
| Capacity: | 29 cu-in |
| Cover Opening Size: | 3-1/2 in |
| Dimensions: | 5.19 in H x 6.5 in W x 4.3125 in D |
| Finish: | Powder Epoxy Painted |
| Series: | GEB |
| Size: | 1-1/2 in |
| Type: | Type T |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121314 |
| UPC: | 00783936114811 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$360.32 / Each
Quantity:
- Killark, GEBT-5, Conduit Outlet Box, Type T, Series: GEB, 1-1/2 in Size, 3-1/2 in Cover Opening, 29 cu-in Capacity, Copper Free Aluminum, Gray, Powder Epoxy Painted, 5.19 in H x 6.5 in W x 4.3125 in D Dimensions
GEBT-5 Application
Used in hazardous areas to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system changesGEBT-5 Item Features
- Green ground screw standard
- External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling
- Integral mounting lugs
- External threaded body for additional wiring room
- Taper threaded hubs provide ground continuity
GEBT-5 Standards
ATEX Compliant|UL File No. E10514|CSA File No. LR11716|Class I, Zone 1, 2, Group IIC, IIB, IIA|Class II, Div 1, 2, Group E, F, G|ATEX Certified|IECEx CertifiedSKU #2429827Part Number #GEBT-5UNSPSC39121314UPC00783936114811
Image provided may only be a representation of final product and may include optional equipment
