Hubbell GEBX-3 Conduit Outlet Box
Part Number # GEBX-3
SKU # 2206187

GEBX-3
Hubbell GEBX-3 Conduit Outlet Box
Part Number # GEBX-3
SKU # 2206187
Hubbell GEBX-3 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | GEBX-3 |
| SKU #: | 2206187 |
| Capacity: | 29 cu-in |
| Cover Opening Size: | 3-1/2 in |
| Dimensions: | 6-1/2 in H x 6-1/2 in W x 4-5/16 in D |
| Finish: | Epoxy Powder Painted |
| Series: | GEB |
| Suitable For Use With: | Conduit System |
| Type: | Type X Explosionproof |
| UNSPSC: | 39121314 |
| UPC: | 00783936114835 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Hubbell GEBX-3 Conduit Outlet Box
Brand: Hubbell
Part Number: GEBX-3
Killark, GEBX-3, Conduit Outlet Box, Type X Explosionproof, Series: GEB, 1 in Size, 3-1/2 in Cover Opening, 29 cu-in Capacity, For Use With: Conduit System, Lug Mounting, Copper Free Aluminum, Gray, Epoxy Powder Painted, 6-1/2 in H x 6-1/2 in W x 4-5/16 in D Dimensions
Additional Description: KILL-GEBX-3 (N) OUTLET BODY 1"" AL X-TYPE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 1" GEB Outlet Body, X-Type, Aluminum
GEBX-3 Application
For NEMA 4X applicationsGEBX-3 Item Features
- Integral mounting lugs
- Green ground screw standard
- External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling
- Taper threaded hubs provide ground continuity
- External threaded body for additional wiring room
GEBX-3 Standards
UL 886|UL 1203|UL File No. E10514|CSA File No. LR11716, Class I, Div 1, 2, Group B, C, D, Class I, Zone I, Group IIC, IIB, IIA, Class II, Div 1, 2, Group E, F, G, Class III Div 1, 2|ATEX Compliant|IECEx CertifiedSKU #2206187Part Number #GEBX-3UNSPSC39121314UPC00783936114835

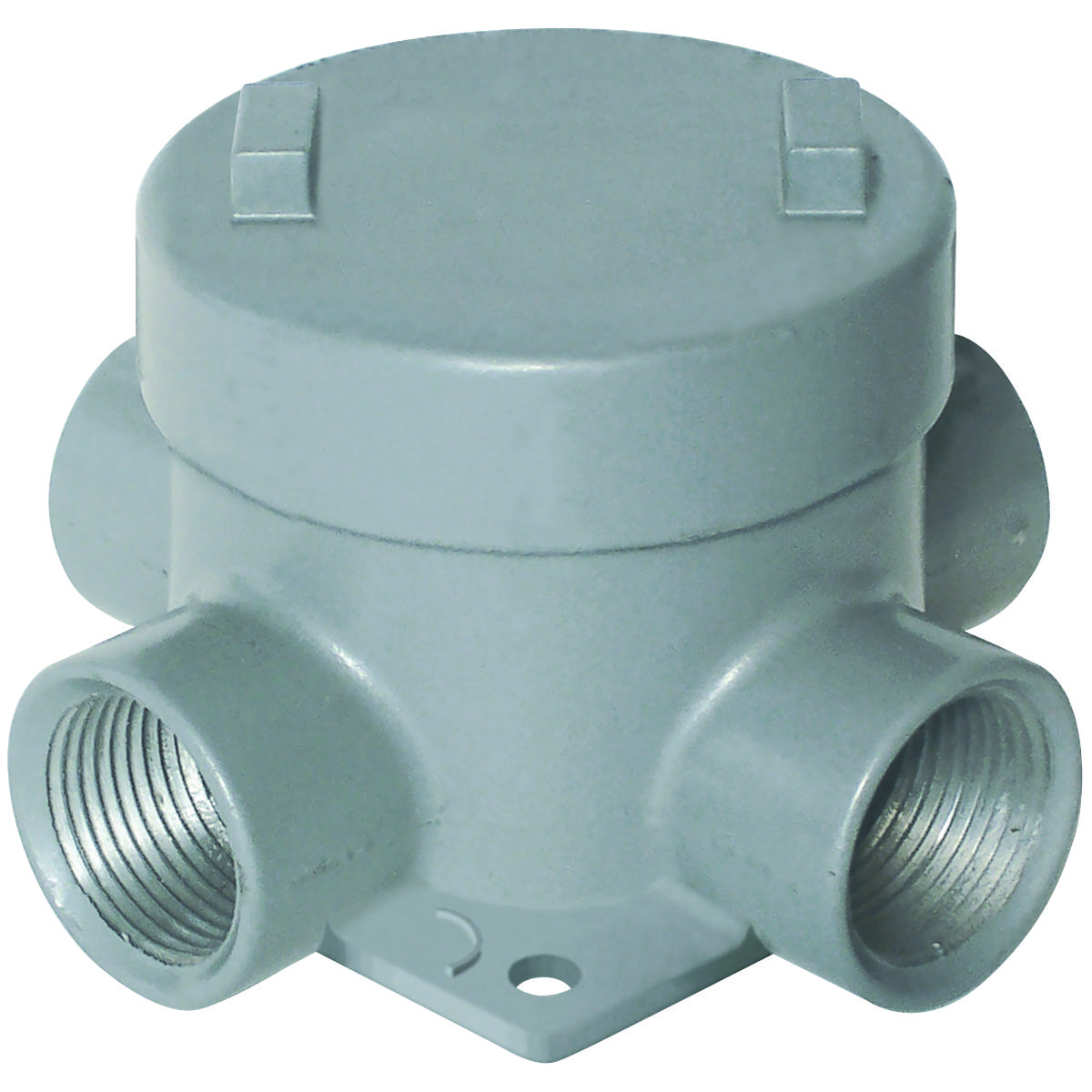

Image provided may only be a representation of final product and may include optional equipment
