Brand: Hubbell

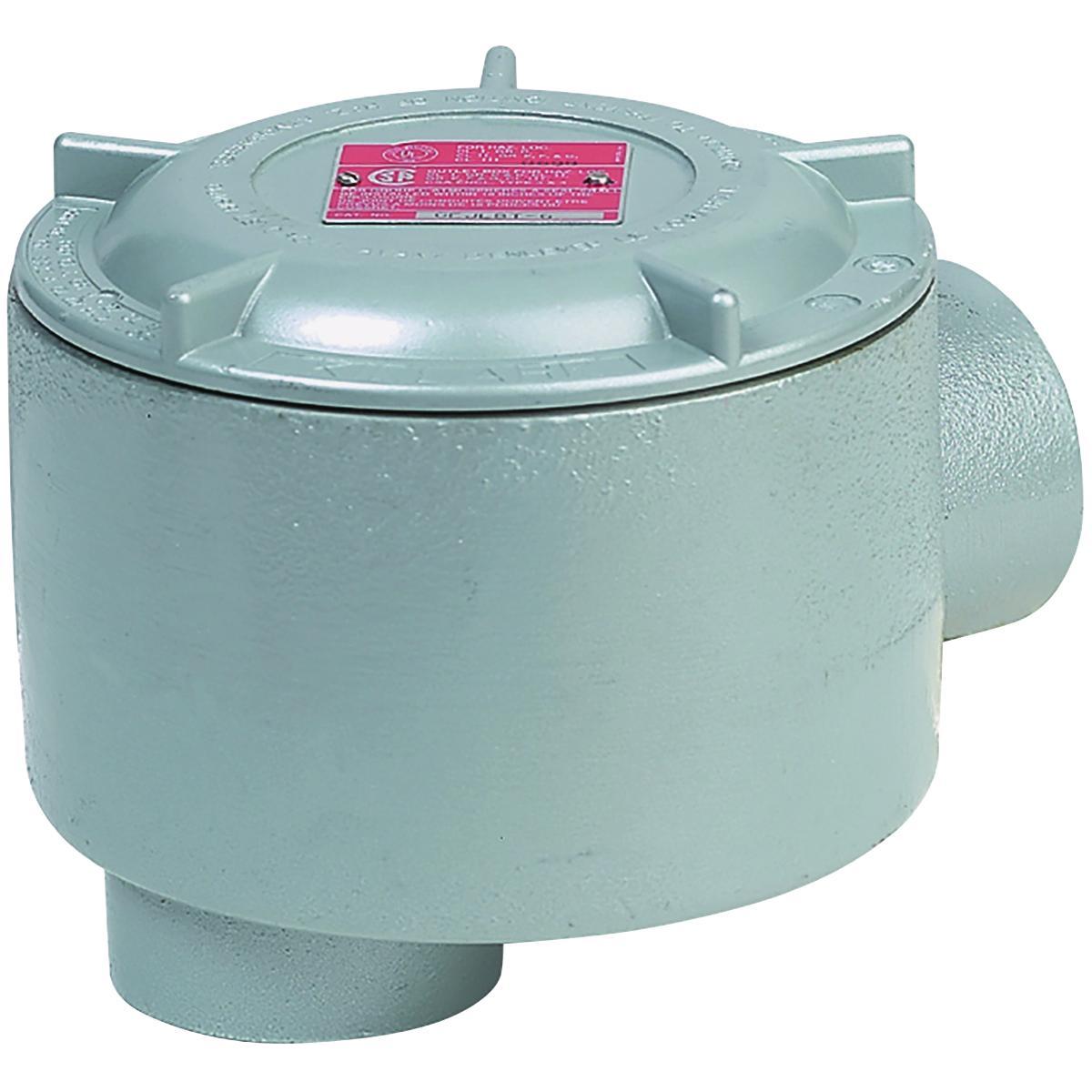

Hubbell GESLBT-4M Conduit Outlet Box
Image Disclaimers Message
Brand: Hubbell
Hubbell GESLBT-4M Conduit Outlet Box
Brand: Hubbell
Hubbell GESLBT-4M Conduit Outlet Box
Part #:GESLBT-4M
SKU #: 2382760
$231.35/EA
Key Features
Part #:GESLBT-4M
SKU #: 2382760
Brand: Hubbell
Capacity: 42 cu-in
Cover Opening Size: 3-9/16 in
Dimensions: 5-1/16 in H x 6-3/16 in W x 5-1/4 in D
Finish: Powder Epoxy Painted
Series: GE Series
$231.35/EA
- External cover threads on the body protecting conductors from damages during pulling
- No pinching of conductors during cover installation
- Taper threaded hubs provide ground continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Internally threaded cover openings for additional wiring room
- Green ground screw standard
- Water shedding cover suitable for wet locations when mounted in upright position
Specifications
Brand: Hubbell
Capacity: 42 cu-in
Cover Opening Size: 3-9/16 in
Dimensions: 5-1/16 in H x 6-3/16 in W x 5-1/4 in D
Finish: Powder Epoxy Painted
Series: GE Series
Size: 1-1/4 in
Type: Type LB
Color: Gray
Country of origin: MX
Material: Iron
Manufacturer Name: Hubbell
UNSPSC: 39121314
UPC: 00783936211381
Hubbell GESLBT-4M Conduit Outlet Box
Killark Conduit Outlet Box, Type LB, Series: GE Series, 1-1/4 in, 3-9/16 in Cover Opening Size, 42 cu-in, Iron, Gray, Powder Epoxy Painted, 5-1/16 in H x 6-3/16 in W x 5-1/4 in D
Additional Description: KILL-GESLBT-4M 1.25 IN IRON OUTLET BODY LB TY
Catalog Description: 1-1/4" GES Outlet Body LB Type, Iron
Item FeaturesFor use in hazardous areas to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system changes
Item Features
Item FeaturesUL 886|UL 1203|UL File No. E10514|CSA C22.2 No. 30|CSA File No. LR11716|Class I, Division 1, 2, Group D|Class I, Zone 1, 2, Group IIA|Class II, Division 1, 2, Group E, F, G|Class III, Division 1, 2
