Part Number # GRK-537L
SKU # 2427159
Image Disclaimers Message
Hubbell GRK-537L Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | GRK-537L |
| SKU #: | 2427159 |
| Cable Entry Size: | 3/4 in NPT |
| Capacity: | 280 cu-in |
| Finish: | Polyester/Epoxy Powder Coated |
| NEMA Rating: | NEMA 3/4/4X |
| Series: | GR Series |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Type: | Compact Rectangular |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 7-3/16 in |
| Material: | Copper-Free Aluminum |
| Mounting type: | Lug |
| Width: | 10-5/32 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121314 |
| UPC: | 00783936232263 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2090.82 / Each
Quantity:

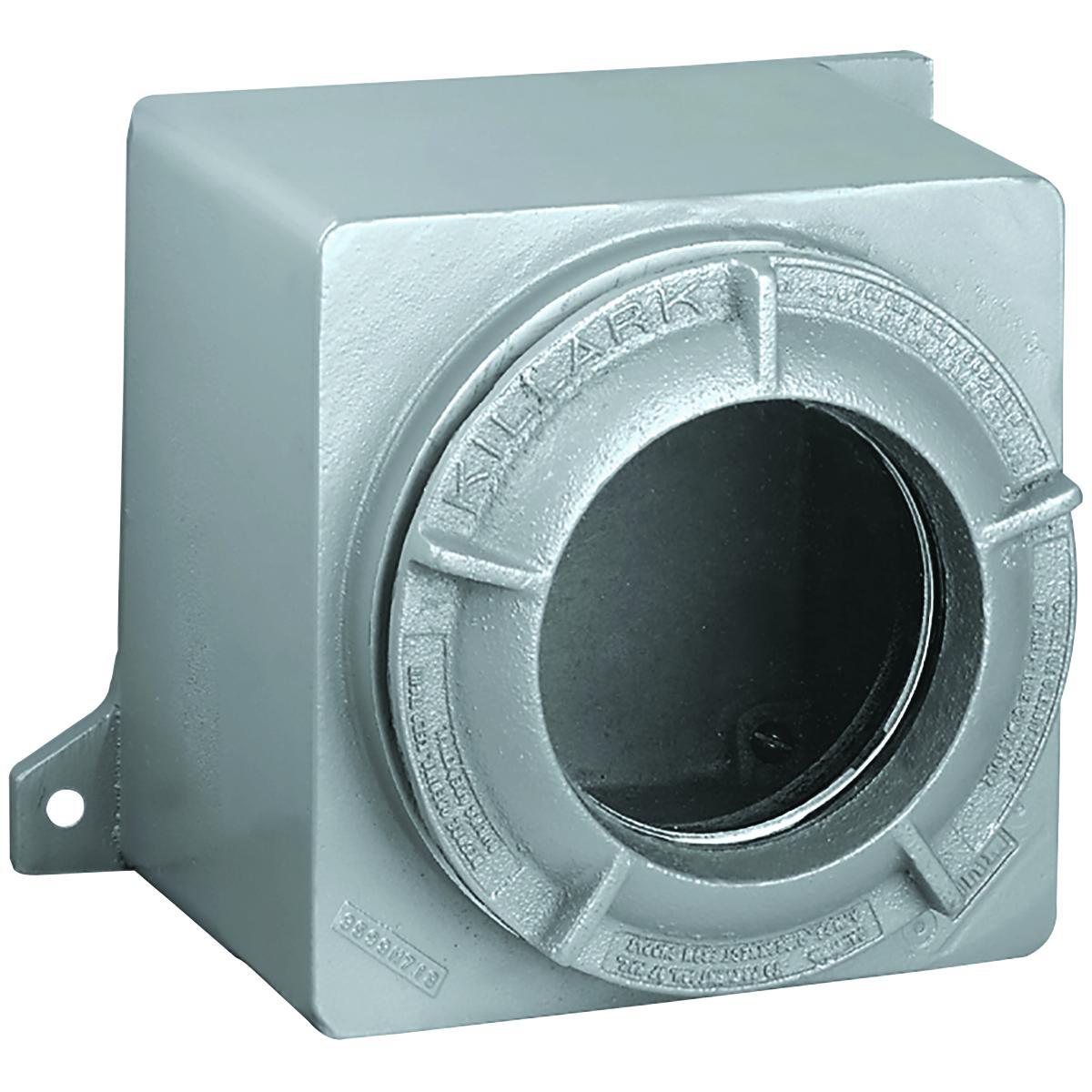

Hubbell GRK-537L Enclosure
Brand: Hubbell
Part Number: GRK-537L
Killark® Enclosure, Compact Rectangular, Series: GR Series, 10-5/32 in Width, 7-3/16 in Depth, NEMA 3/4/4X NEMA Rating, Thread Cover, 3/4 in NPT Cable Entry, 280 cu-in Capacity, Lug Mounting, -20 to 60 deg C, Copper-Free Aluminum, Polyester/Epoxy Powder Coated, Gray
Additional Description: KILL-GRK-537L 5-3/8"" BOX W/LENS COVER
Catalog Description: GR Series, 7.06 X 8.31 X 4.13, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Viewing Lens Screw Cover Enclosure
GRK-537L Application
For use in hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings and areas which are subject to corrosion, weather and dampness and for installations at petroleum refineries, chemical and petrochemical plants, storage areas and other processing facilities where hazardous substances are handled or storedGRK-537L Includes
(2) 3/4 in Conduit Opening, Lens Cover, O-Ring, Nitrile (BUNA-N) Material, Internal Ground Screw and Meter Mounting PansGRK-537L Item Features
- Compact rectangular enclosures with threaded lens covers, provides view of the interior
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction and tempered soda lime glass, cemented in place
- Cast mounting lugs are standard on all boxes
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and cover
GRK-537L Standards
ATEX File No. PTB 02 ATEX 1071U/PTB 02 ATEX 1072|CE Certified|CSA File No. LR11716|Class I Zones 1 and 2 Groups IIB+H2, IIA|Class II Divisions 1 and 2 Groups E, F, G|IECEx File No. IEC Ex 05.0029U/IEC Ex 05.0028|FM 3600/3615 File No. 2Y4A5.AE|UL File No. E10514/E83696|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2427159Part Number #GRK-537LUNSPSC39121314UPC00783936232263
