Part Number # B500-2009-GAF
SKU # 2265329
Image Disclaimers Message
Brand: Micron Transformer
B500-2009-GAF

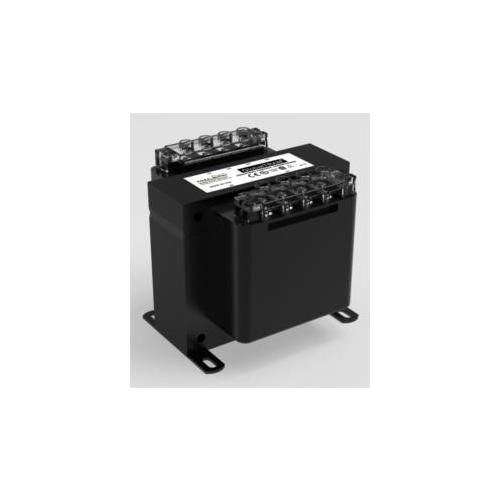

Micron Transformer B500-2009-GAF Control Power Transformer
Part Number # B500-2009-GAF
SKU # 2265329
$270.90 / Each
Typical price:$387.00 / Each
Micron Transformer B500-2009-GAF Key Features
| Brand: | Micron Transformer |
|---|---|
| Part Number # : | B500-2009-GAF |
| SKU #: | 2265329 |
| Dimensions: | 4.77 in H x 5.25 in W x 5.7 in D |
| Frequency Rating: | 50/60 Hz |
| Maximum Amperage Rating: | 4.35 A |
| Phase: | 1 ph |
| Primary Voltage: | 240x480, 230x460, 220x440 V |
| Secondary Voltage: | 110/115/120 V |
| Series: | Globaltran |
| Temperature Rating (Degrees F): | 130 deg |
| Type: | Encapsulated |
| Mounting type: | Panel |
| Manufacturer Name: | Micron Power |
| UNSPSC: | 39121026 |
| UPC: | 00784550054293 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$270.90 / Each
Typical price:$387.00 / Each
Quantity:
- Micron, B500-2009-GAF, Control Transformer, Encapsulated, Series: GlobalTRAN, 240x480, 230x460, 220x440 V Primary, 110/115/120 V Secondary, 500 VA Power, 50/60 Hz Frequency, 1 ph, 4.35 A Maximum, Panel Mounting, 130 deg, 4.77 in H x 5.25 in W x 5.7 in D Dimensions
B500-2009-GAF Standards
ROHS Compliant|CE Marked|UL Listed File No. E46323|CSA File No. LR27533|CE to EN61558-2-2SKU #2265329Part Number #B500-2009-GAFUNSPSC39121026UPC00784550054293
