Part Number # 3375100
SKU # 2203481
Image Disclaimers Message
Brand: Rittal
3375100

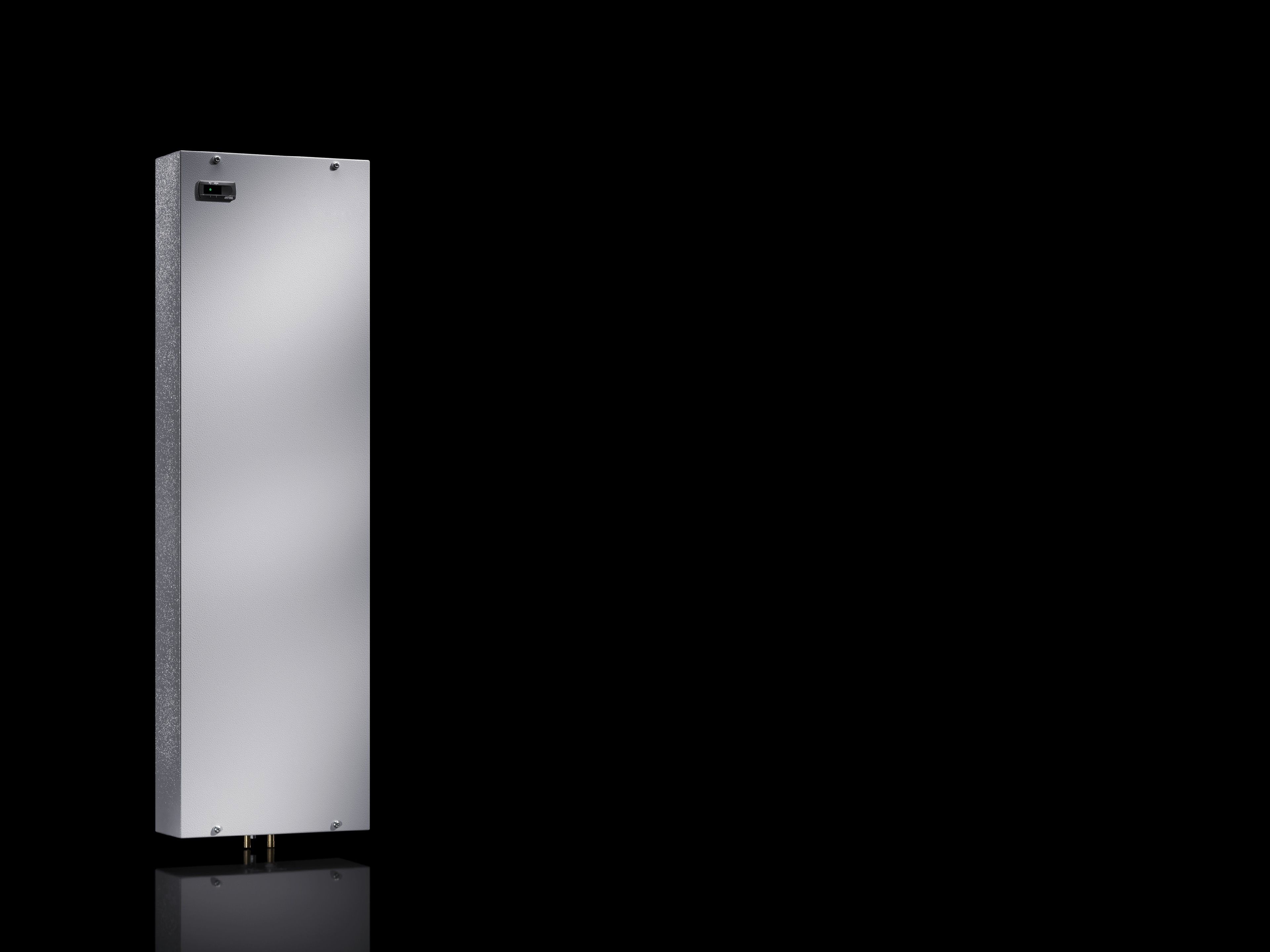

Rittal 3375100 Heat Exchanger
Part Number # 3375100
SKU # 2203481
$4489.31 / Each
Typical price:$5611.64 / Each
Rittal 3375100 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 3375100 |
| SKU #: | 2203481 |
| Air Flow Rate: | 877/977, 877/977 cfm |
| Ambient Temperature Rating: | 1 to 70, 1 to 70 deg C |
| Amperage Rating: | 0.78/1.01, 0.78/1.01 A |
| Capacity: | 17060, 17060 Btu |
| Dimensions: | 55 in H x 18 in W x 8.7 in D |
| Enclosure Type: | IP55 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Pressure Rating: | 1 to 10, 1 to 10 bar |
| Series: | SK Series |
| Type: | 1-Phase Air/Water |
| Color: | Light gray |
| Country of origin: | DE |
| Mounting type: | Wall |
| Manufacturer Name: | Rittal |
| UNSPSC: | 40101802 |
| UPC: | 00639889852686 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4489.31 / Each
Typical price:$5611.64 / Each
Quantity:
- Rittal Heat Exchanger, 1-Phase Air/Water, Series: SK Series, 230 V AC, 0.78/1.01 A, 178/232 W Power, 50/60 Hz Frequency, IP55 Enclosure, 877/977 cfm, 17060 Btu Capacity, 1 to 70 deg C Ambient, 1 to 10 bar Pressure, Wall Mounting, Light Gray, 55 in H x 18 in W x 8.7 in D Dimensions
3375100 Application
Climate Control Solutions Applications3375100 Includes
Plug-In Terminal Strip, Drilling Template, Sealing Mat, Assembly Components3375100 Item Features
- Integral non-return valve for version with e-comfort controller
- Output classes 375 to 5000 W, for use in tough environments
- 877 cfm at 50 Hz, 977 cfm at 60 Hz
- 178 W at 50 Hz, 232 W at 60 Hz
- 0.78 A at 50 Hz, 1.01 A at 60 Hz
- Copper or brass tubes
- Fully wired ready for connection
3375100 Standards
RoHS Compliant|UL, cUL Recognized|UL 1995|cCSA C22.2 File No. 236-M90|EAC CertifiedSKU #2203481Part Number #3375100UNSPSC40101802UPC00639889852686
