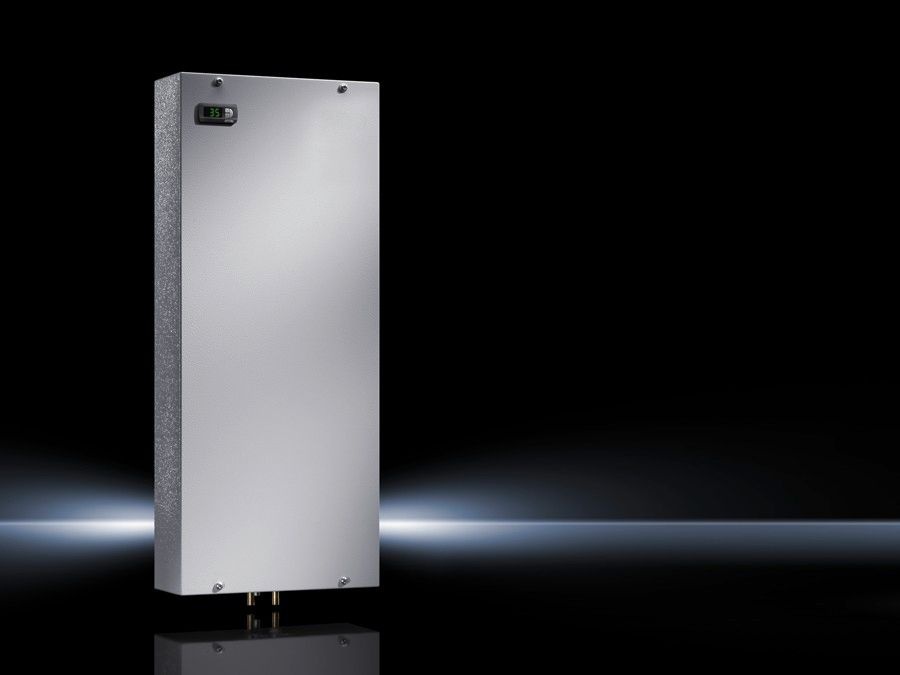

Rittal 3375510 Heat Exchanger
Image Disclaimers Message
Rittal 3375510 Heat Exchanger
Rittal 3375510 Heat Exchanger
Part #:3375510
SKU #: 2255723
Key Features
Part #:3375510
SKU #: 2255723
Brand: Rittal
Air Flow Rate: 877/977, 877/977 cfm
Ambient Temperature Rating: 1 to 70, 1 to 70 deg C
Amperage Rating: 2.25, 2.25 A
Capacity: 17060, 17060 Btu
Dimensions: 55 in H x 18 in W x 8.7 in D
- Integral non-return valve for version with e-comfort controller
- Output classes 375 to 5000 W, for use in tough environments
- 877 cfm at 50 Hz, 977 cfm at 60 Hz
- 178 W at 50 Hz, 232 W at 60 Hz
- Copper or brass tubes
- Fully wired ready for connection
Rittal 3375510 Heat Exchanger
Rittal Heat Exchanger, 1-Phase Air/Water, Series: SK Series, 115 VAC, 2.25 A, 178/232 W Power, 50/60 Hz Frequency, IP55 Enclosure, 877/977 cfm, 17060 Btu Capacity, 1 to 70 deg C Ambient, 1 to 10 bar Pressure, Wall Mounting, Light Gray, 55 in H x 18 in W x 8.7 in D Dimensions
Additional Description: RTL -3375510 A-W HEX 17060BTU 115V 50-60HZ TYPE 12 SIDEMTG, COMFORT CONTROL, RAL 7035, STEEL 12 Air/Water Heat Exchanger - Comfort Controller Useful Cooling Capacity 17060 BTU, 115 V, 50/60 Hz
Catalog Description: Air/water heat exchangers, Wall-mounted, Copper/brass (Cu/CuZn), color: RAL 7035, supply includes: Fully wired ready for connection (plug-in terminal strip), Drilling template, Sealing and assembly parts, description: Output classes 375 to 5,000 W. For use in tough environments. Convenient mounting options and flexible water connection options. Partial or full internal mounting possible.
