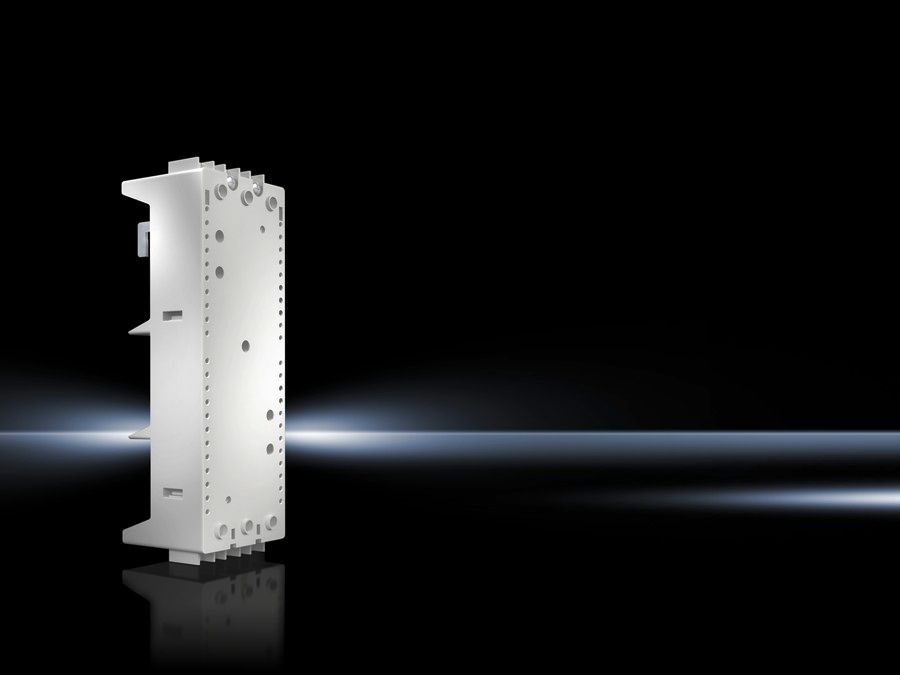

Rittal 9342410 Circuit Breaker Component Adapter
Image Disclaimers Message
Rittal 9342410 Circuit Breaker Component Adapter
Rittal 9342410 Circuit Breaker Component Adapter
Part #:9342410
SKU #: 2159263
Key Features
Part #:9342410
SKU #: 2159263
Brand: Rittal
Dimensions: 8.3 in H x 2.8 in W x 63 mm D
Specifications: 690 VAC, 100 A, 3-Pole, 3-Phase, Box Terminal, 10 to 35 sq-mm Wire Size
Suitable For Use With: 5/10 mm Cross Section H Busbars, 60 mm Center-to-Center Spacing Bar System
Color: Pale Gray
Material: Polyamide
- For universal, simplified assembly of circuit breakers up to 630 A
- Switch outlet or as outgoing cable from the switchgear
- Fire protection corresponding to UL 94-V0
- Pale gray (RAL 7035) circuit breaker component adaptor
Rittal 9342410 Circuit Breaker Component Adapter
Rittal Circuit Breaker Component Adapter, For Use With: 5/10 mm Cross Section H Busbars, 60 mm Center-to-Center Spacing Bar System, Specifications: 690 VAC, 100 A, 3-Pole, 3-Phase, Box Terminal, 10 to 35 sq-mm Wire Size, Polyamide, Pale Gray, 8.3 in H x 2.8 in W x 63 mm D Dimensions
Additional Description: RTL -9342410 RILINE CB ADAPTER-100A CABLE OUTLET-BOTTOM 9342410
Catalog Description: Circuit-breaker component adaptors, 3-pole, material: Polyamide (PA 6.6), Fire protection corresponding to UL 94-V0, color: RAL 7035, description: Circuit-breaker adaptor for universal, simplified assembly of circuit-breakers up to 630A.
