BDL26015

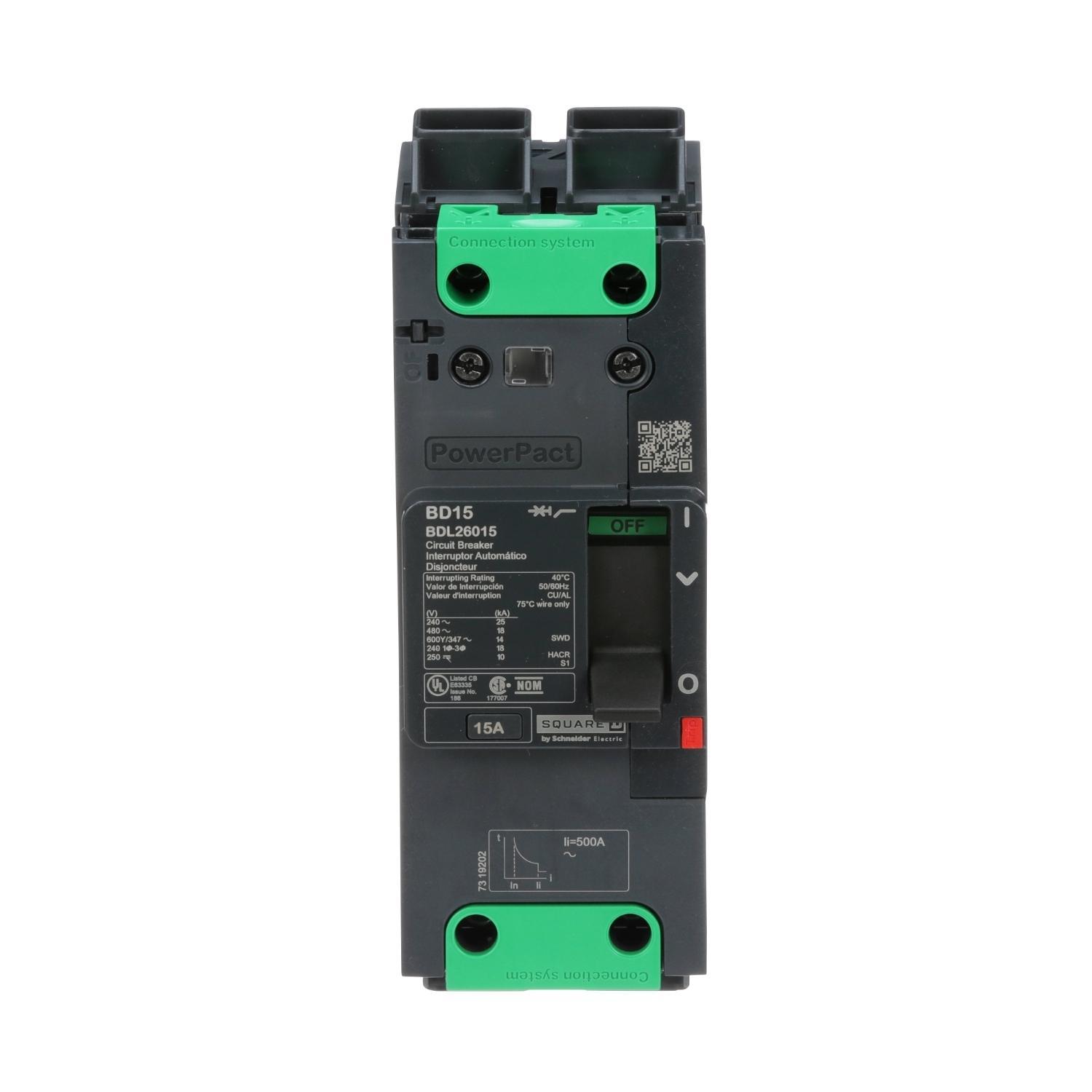

Schneider Electric BDL26015 Powerpact Molded Case Circuit Breaker
Part Number # BDL26015
SKU # 2331038
$587.25 / Each
Typical price:$783.00 / Each
Schneider Electric BDL26015 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BDL26015 |
| SKU #: | 2331038 |
| Actuator Type: | Toggle |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 2.12 in L x 3.15 in W x 5.39 in H |
| Enclosure Type: | IP40/IK07 |
| Frame: | B |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10/14/18/25, 10/14/18/25 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Trip Range: | 400 to 600, 400 to 600 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type BDL |
| Wire Size: | 6 to 2/0 AWG Aluminum, 14 to 3/0 AWG Copper |
| Color: | Gray |
| Connection type: | EverLink Line/Load, EverLink™ Line/Load |
| Country of origin: | MX |
| Mounting type: | Clip-On/DIN Rail/Threaded |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 03606481152794 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$587.25 / Each
Typical price:$783.00 / Each
Quantity:
- Schneider Electric PowerPact Molded Case Circuit Breaker, Type BDL, 600Y/347 VAC, 250 VDC, 15 A, 50/60 Hz Frequency, 10/14/18/25 kA Interrupt, B Frame, Thermal Magnetic Trip, 400 to 600 A Trip, 2 Pole, 1 ph, Toggle Actuator, EverLink Line/Load Connection, 6 to 2/0 AWG Aluminum, 14 to 3/0 AWG Copper Wire, IP40/IK07 Enclosure, Clip-On/DIN Rail/Threaded Mounting, -13 to 158 deg F, 2.12 in L x 3.15 in W x 5.39 in H Dimensions, Gray
BDL26015 Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building ApplicationsBDL26015 Item Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
BDL26015 Standards
BAA Compliant|UL 489|CSA C22.2 #5|CCC/CE Certified|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|EAC/NOM Certified|NEMA AB4|ECCN EAR99|PROP65: This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2331038Part Number #BDL26015UNSPSC39121616UPC03606481152794
