Part Number # BDL26015LU
SKU # 2394952
Image Disclaimers Message
Brand: Schneider Electric
BDL26015LU

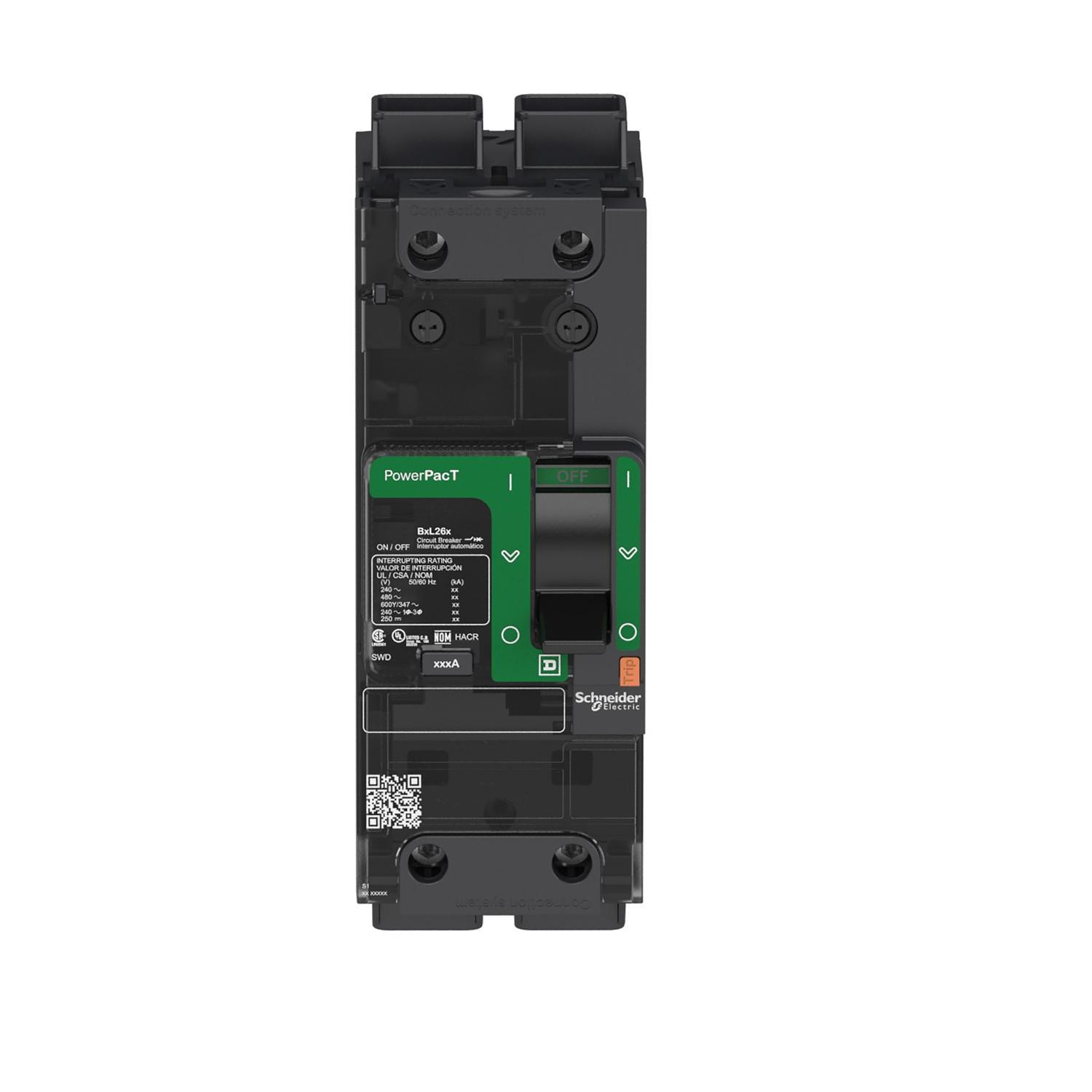

Schneider Electric BDL26015LU Powerpact Everlink Molded Case Circuit Breaker
Part Number # BDL26015LU
SKU # 2394952
$670.50 / Each
Typical price:$894.00 / Each
Schneider Electric BDL26015LU Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BDL26015LU |
| SKU #: | 2394952 |
| Actuator Type: | Toggle |
| Amperage Rating: | 15 A |
| Dimensions: | 2.12 in W x 4.01 in D x 5.39 in H |
| Enclosure Type: | NEMA AB4/IP40 |
| Frame: | B |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600Y/347 VAC |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Trip Range: | 400 to 600 A |
| Trip Type: | LI/Thermal Magnetic, Thermal Magnetic |
| Wire Size: | 14 to 2/0 AWG/14 to 3/0 AWG Cu |
| Color: | Gray |
| Connection type: | Line/Load Lug |
| Country of origin: | US |
| Mounting type: | DIN Rail/Threaded |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 03606481148759 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$670.50 / Each
Typical price:$894.00 / Each
Quantity:
- Schneider Electric PowerPact EverLink Molded Case Circuit Breaker, 600Y/347 V AC, 15 A, 50/60 Hz, 25 kA at 240 V AC/18 kA at 480 V AC/14 kA at 600Y/347 V AC Interrupt, B Frame, Thermal Magnetic Trip, 400 to 600 A Trip, 2 Pole, Toggle Actuator, Line/Load Lug, 14 to 2/0 AWG/14 to 3/0 AWG Cu Wire, NEMA AB4/IP40, DIN Rail/Threaded Mount, -13 to 158 deg F, 2.12 in W x 4.01 in D x 5.39 in H, Gray
BDL26015LU Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building ApplicationsBDL26015LU Item Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
BDL26015LU Standards
BAA Compliant|CSA C22.2 #5|CCC Certified|CE Certified|EAC Approved|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|NOM Certified|UL 489|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2394952Part Number #BDL26015LUUNSPSC39121616UPC03606481148759
