Part Number # BGA34100Y
SKU # 2457018
BGA34100Y
Schneider Electric BGA34100Y
Part Number # BGA34100Y
SKU # 2457018
$752.95 / Each
Typical price:$1412.00 / Each
Square D BGA34100Y Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | BGA34100Y |
| SKU #: | 2457018 |
| Actuator Type: | Toggle |
| Amperage Rating: | 100 A |
| Dimensions: | 81 mm W x 89 mm D x 137 mm H |
| Enclosure Type: | NEMA AB1/IP40/IK07 |
| Frame: | B |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 35/20 kA |
| Number of Poles: | 3 |
| Series: | BG 100 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Trip Range: | 1000 to 1500 A |
| Trip Type: | Thermal Magnetic |
| Wire Size: | 14 to 2/0 AWG Al/Cu |
| Connection type: | I-Line� Line/Lug Load |
| Country of origin: | MX |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 00785901069522 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$752.95 / Each
Typical price:$1412.00 / Each
Quantity:
Schneider Electric BGA34100Y
Brand: Square D
Part Number: BGA34100Y
MOLDED CASE CIRCUIT BRKR 480Y/277V 100A
Additional Description: SQD -BGA34100Y MOLDED CASE CIRCUIT BRKR 480Y/277V 100A
Catalog Description: Circuit breaker, PowerPacT B, 100A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC
BGA34100Y Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Buildings ApplicationsBGA34100Y Item Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
BGA34100Y Standards
CE Certified|CSA C22.2 File No. 5|CCC Certified|EAC|EN/IEC 60947-2|EN/IEC 60947-5-1|Green Premium Listed|GB 14048.2|IEC 60529|NMX J-266|NOM Certified|REACH Compliant|RoHS Compliant|WEEE Certified|UL 489|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2457018Part Number #BGA34100YUNSPSC39121601UPC00785901069522

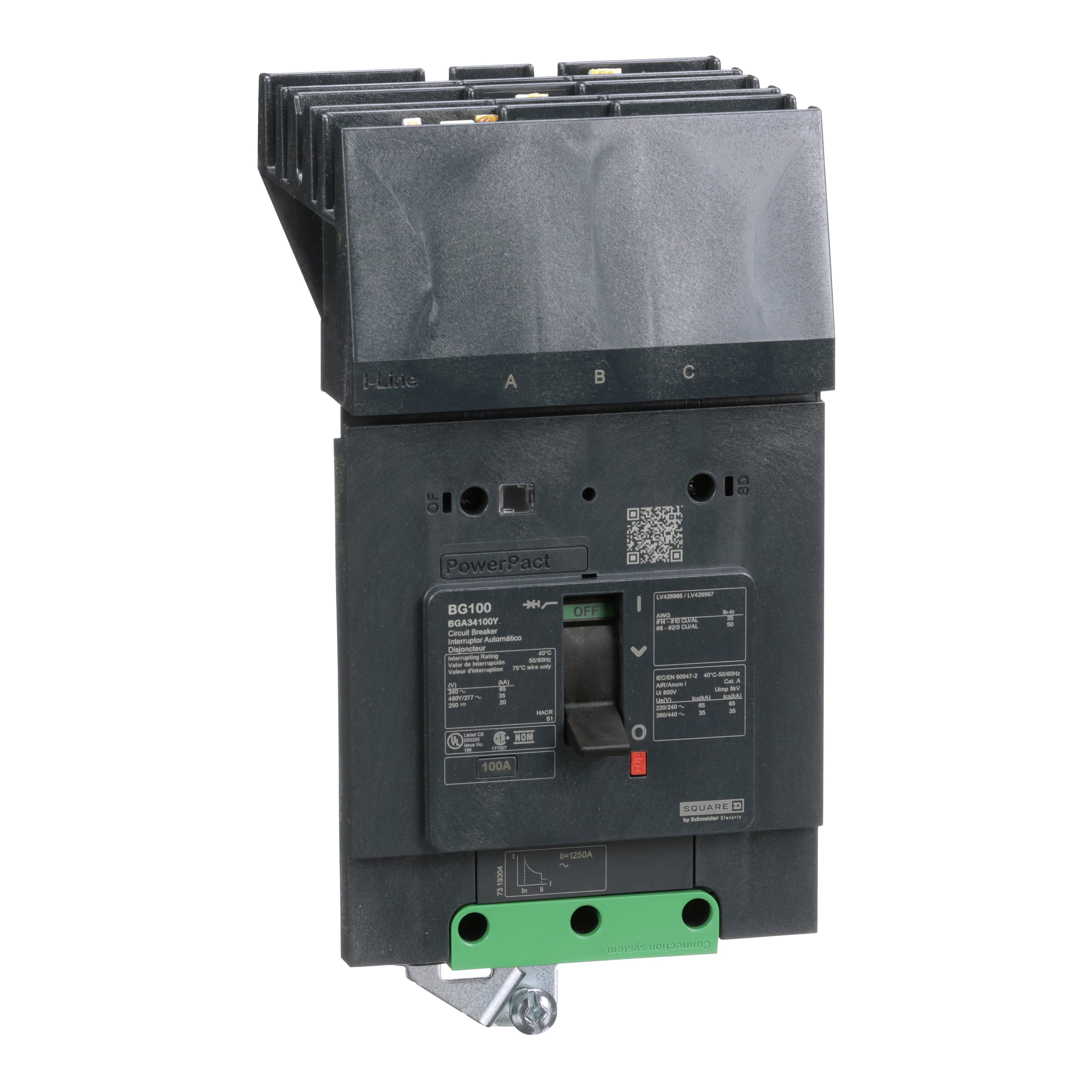

Image provided may only be a representation of final product and may include optional equipment
