Part Number # BJA36045
SKU # 2439501
BJA36045
Schneider Electric BJA36045
Part Number # BJA36045
SKU # 2439501
Square D BJA36045 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | BJA36045 |
| SKU #: | 2439501 |
| Actuator Type: | Toggle |
| Amperage Rating: | 45 A |
| Dimensions: | 5.39 in H x 3.19 in W x 4.09 in D |
| Enclosure Type: | NEMA AB4/IP40 |
| Frame: | B |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Trip Range: | 400 to 600 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 14 to 2/0 AWG Al/Cu |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Mounting type: | DIN Rail/Threaded |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 03606481185853 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric BJA36045
Brand: Square D
Part Number: BJA36045

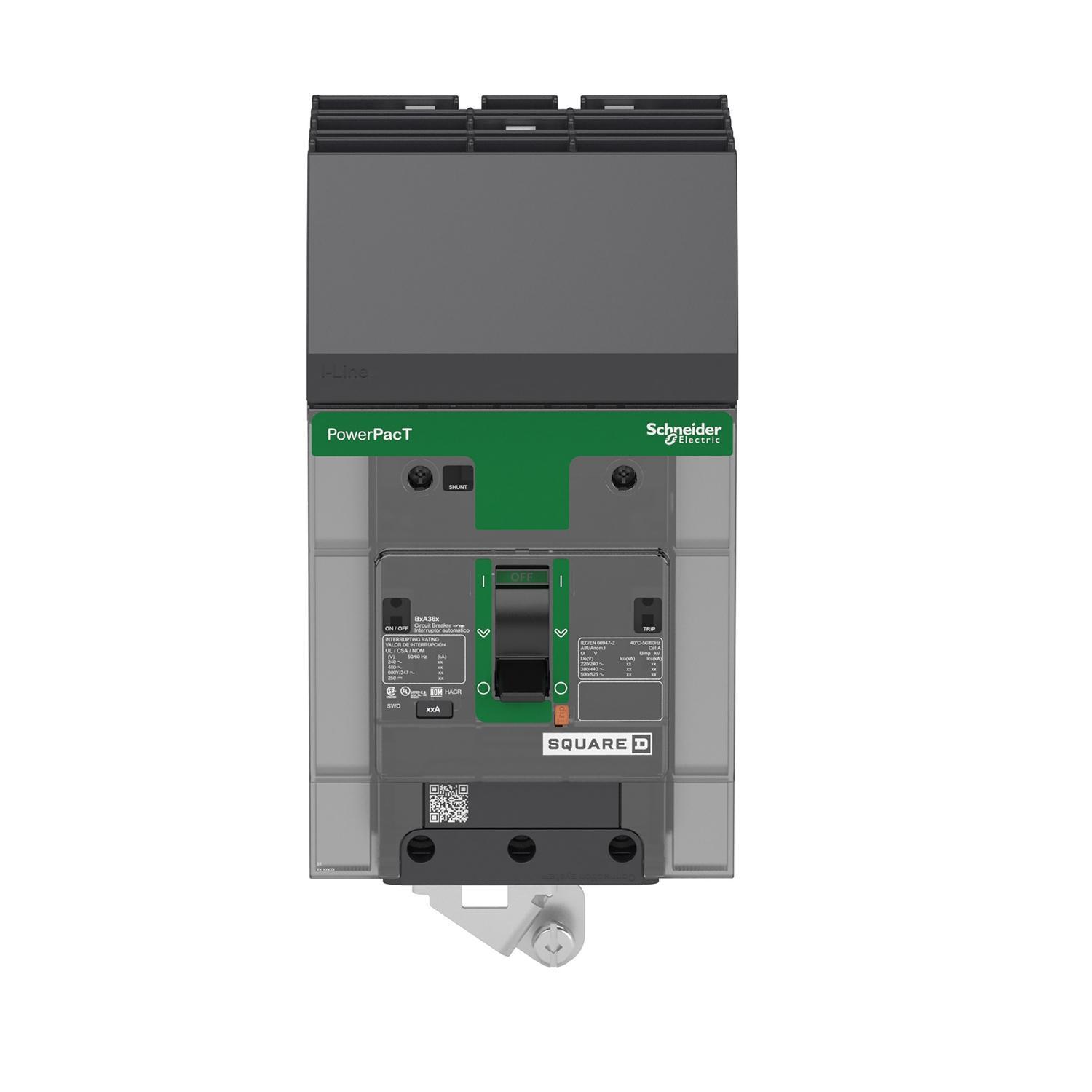

Schneider Electric I-Line™ PowerPact™ Molded Case Circuit Breaker, 600Y/347 VAC, 45 A, 50/60 Hz, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC Interrupt, B Frame, Thermal Magnetic Trip, 400 to 600 A Trip, 3 Pole, 3 Phase, Toggle Actuator, Line/Load Lug, 14 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40, DIN Rail/Threaded Mount, -13 to 158 deg F, 5.39 in H x 3.19 in W x 4.09 in D, Gray
Additional Description: SQD -BJA36045 MOLDED CASE CIRCUIT BRKR 600Y/347V 45A
Catalog Description: Circuit breaker, PowerPacT B, 45A, 3 pole, 600Y/347VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
BJA36045 Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Building ApplicationsBJA36045 Item Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/embed/Hbz6Mhc7rRw
BJA36045 Standards
CSA C22.2 No. 5|CE Certified|CCC Certified|EAC Approved|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|NOM Certified|UL 489|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2439501Part Number #BJA36045UNSPSC39121616UPC03606481185853
Image provided may only be a representation of final product and may include optional equipment
