Part Number # HGL36100U33X
SKU # 2451342
Image Disclaimers Message
HGL36100U33X

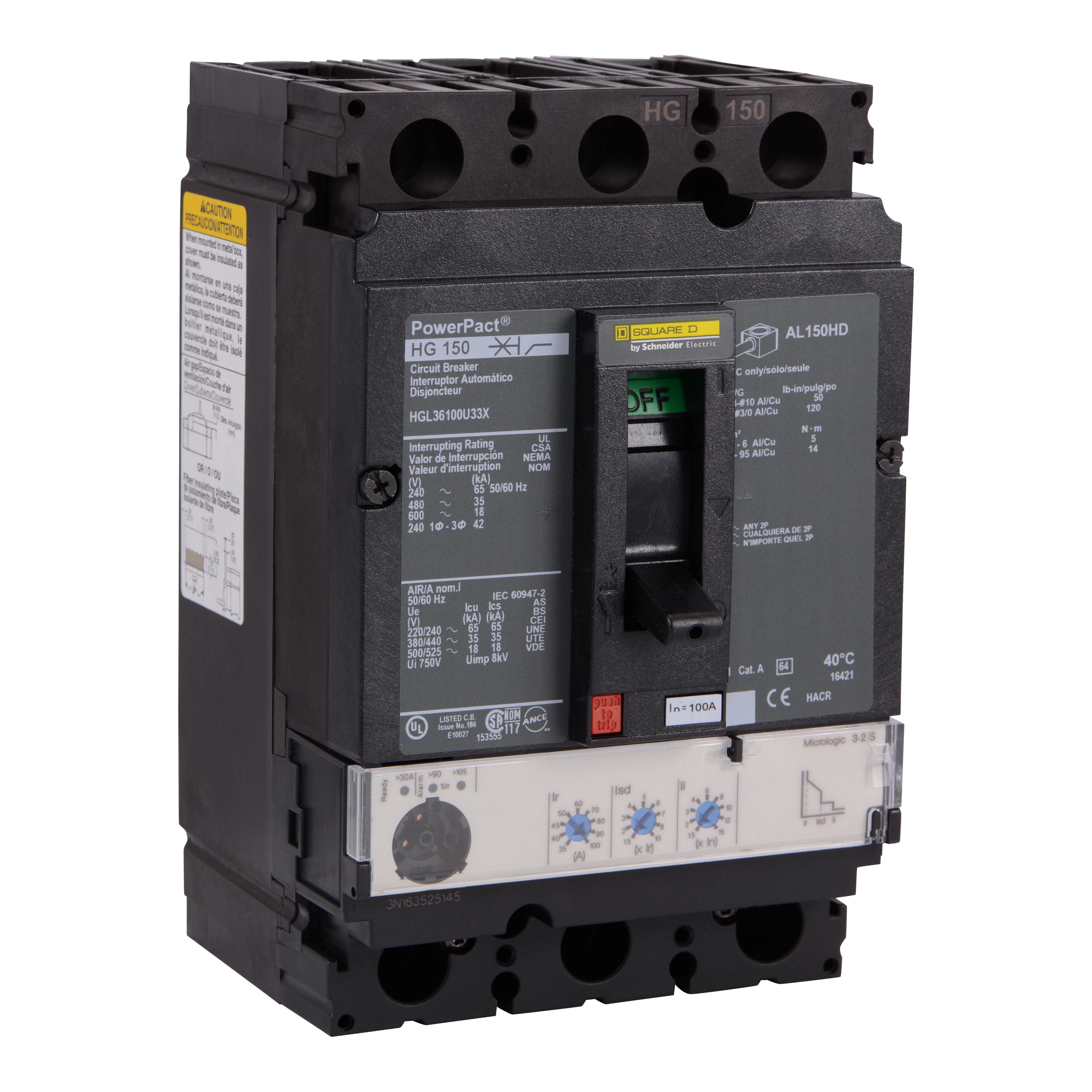

Schneider Electric HGL36100U33X
Part Number # HGL36100U33X
SKU # 2451342
$1678.27 / Each
Typical price:$2046.00 / Each
Schneider Electric HGL36100U33X Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | HGL36100U33X |
| SKU #: | 2451342 |
| Amperage Rating: | 100 A |
| Dimensions: | 6.4 in H x 4.12 in W x 4.36 in D |
| Enclosure Type: | NEMA AB1 |
| Frame: | H |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 104 deg F |
| Trip Range: | 900 to 1700 A |
| Trip Type: | Electronic, Electronic LSI/Thermal Magnetic |
| Type: | Type HGL |
| Wire Size: | 14 to 3/0 AWG Al/Cu |
| Connection type: | Line/Load Lug |
| Country of origin: | US |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901402947 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1678.27 / Each
Typical price:$2046.00 / Each
Quantity:
- Square D I-Line PowerPact Molded Case Circuit Breaker, Type HGL, 600 V AC, 100 A, 50/60 Hz, 65 kA at 240 V AC/35 kA at 480 V AC/18 kA at 600 V AC/20 kA at 250/500 VDC Interrupt, H Frame, Electronic Trip, 900 to 1700 A Trip, 3 Pole, 3, Line/Load Lug, 14 to 3/0 AWG Al/Cu Wire, NEMA AB1, Surface Mount, 104 deg F, 6.4 in H x 4.12 in W x 4.36 in D
HGL36100U33X Application
Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial MarketsHGL36100U33X Item Features
- Standard 80 Percent or 100 Percent rating
- Available in Unit mount, I-line or Drawout constructions
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/embed/tmiPbq_-Hk0
HGL36100U33X Standards
RoHS Compliant|CSA C22.2 No. 5 File No. LR40970|CCC/CE Marked|Federal Specification W-C-375B/GEN|IEC 60947-2|UL 489 File No. E10027|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.govSKU #2451342Part Number #HGL36100U33XUNSPSC39121616UPC00785901402947
