Part Number # HJF36125
SKU # 2466612
HJF36125
Schneider Electric HJF36125
Part Number # HJF36125
SKU # 2466612
Square D (Schneider Electric) HJF36125 Key Features
| Brand: | Square D (Schneider Electric) |
|---|---|
| Part Number # : | HJF36125 |
| SKU #: | 2466612 |
| Amperage Rating: | 125 A |
| Dimensions: | 6.4 in H x 4.12 in W x 4.36 in D |
| Enclosure Type: | NEMA AB1 |
| Frame: | H |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 104 deg F |
| Trip Range: | 900 to 1700 A |
| Trip Type: | Thermal Magnetic |
| Wire Size: | 14 to 3/0 AWG Al/Cu |
| Connection type: | Bus Bar |
| Country of origin: | US |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901009672 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric HJF36125
Brand: Square D (Schneider Electric)
Part Number: HJF36125
Square D™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 125 A, 50/60 Hz, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC Interrupt, H Frame, Thermal Magnetic Trip, 900 to 1700 A Trip, 3 Pole, 3, Busbar, 14 to 3/0 AWG Al/Cu Wire, NEMA AB1, Surface Mount, 104 deg F, 6.4 in H x 4.12 in W x 4.36 in D
Additional Description: SQD -HJF36125 MOLDED CASE CIRCUIT BREAKER 600V 125A
Catalog Description: Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 25kA, busbar, thermal magnetic, 80%
HJF36125 Application
Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets ApplicationsHJF36125 Item Features
- Standard 80% or 100% rating
- Available in Unit mount, I-line or Drawout constructions
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/embed/ja3DCvAs9M4
HJF36125 Standards
CSA C22.2 No. 5 File No. LR40970|CCC Certified|CE Certified|Federal Specification W-C-375B/GEN|IEC 60947-2|UL 489 File No. E10027|PROP65: This product can expose you to chemicals including: DIDP and DINP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2466612Part Number #HJF36125UNSPSC39121616UPC00785901009672

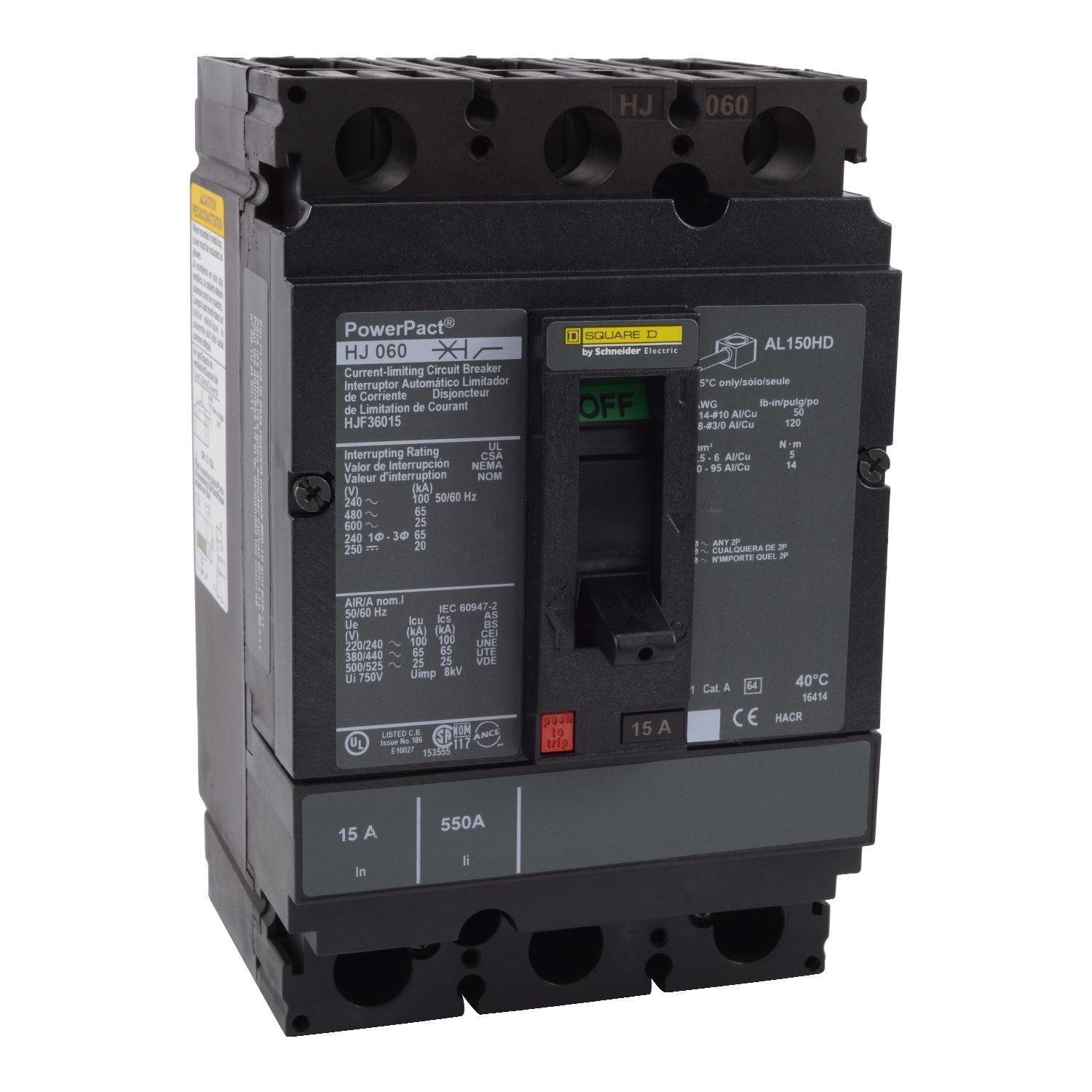

Image provided may only be a representation of final product and may include optional equipment
