LAP36300

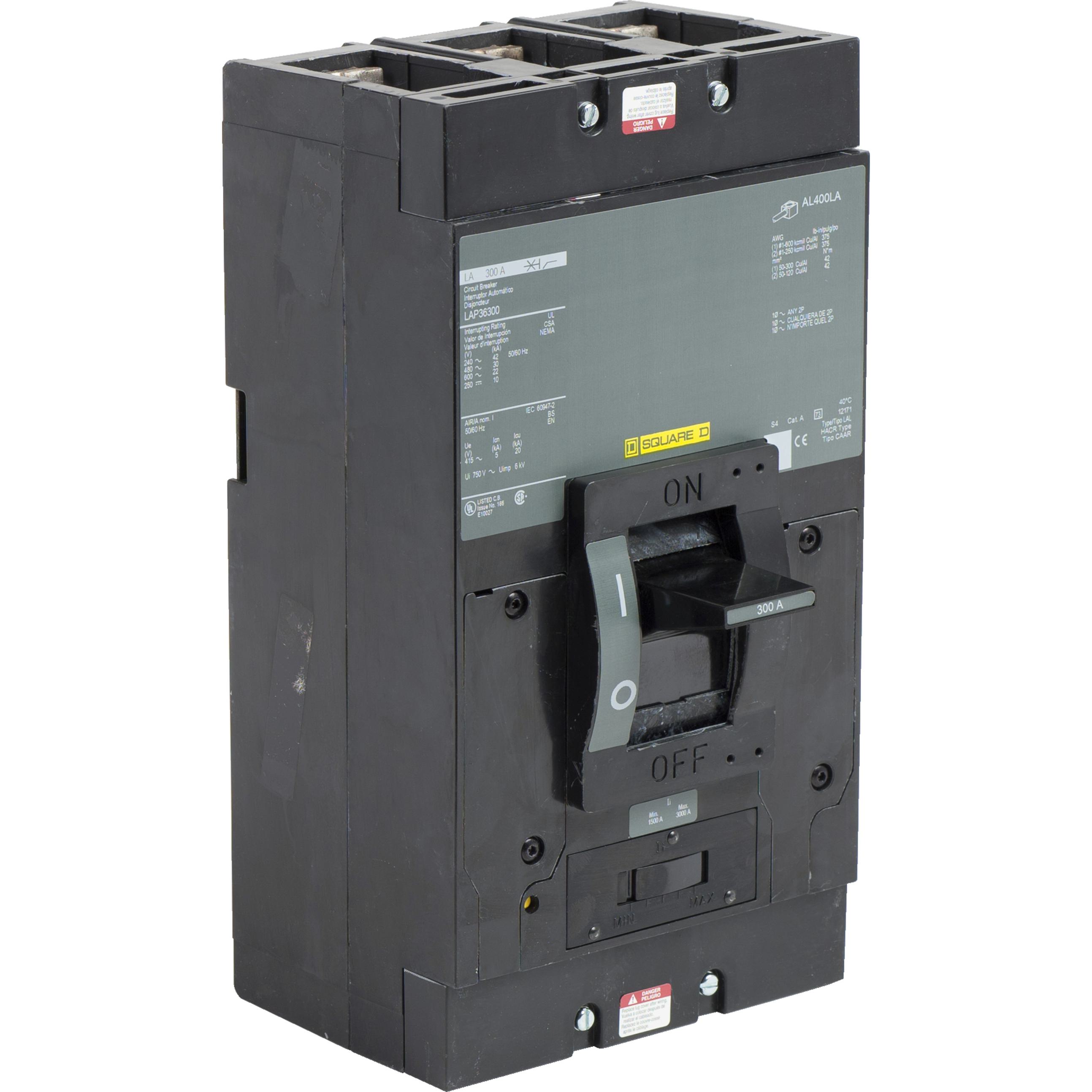

Schneider Electric I-Line LAP36300 Molded Case Circuit Breaker
Part Number # LAP36300
SKU # 2408811
$3788.82 / Each
Typical price:$4619.00 / Each
Schneider Electric LAP36300 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LAP36300 |
| SKU #: | 2408811 |
| Amperage Rating: | 300 A |
| Dimensions: | 11 in H x 6 in W x 5.84 in D |
| Enclosure Type: | NEMA AB1 |
| Frame: | L Frame |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 22 kA at 600 VAC/30 kA at 480 VAC/42 kA at 240 VAC/10 kA at 125/250 VDC, 42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Trip Range: | 1500 to 3000 A |
| Trip Type: | Magnetic, Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu, 1 AWG to 600 kcmil/1 AWG to 500 kcmil |
| Connection type: | Line/Load Lug, Line/Load Lugs |
| Country of origin: | MX |
| Mounting type: | Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901423980 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3788.82 / Each
Typical price:$4619.00 / Each
Quantity:
- Square D I-Line Molded Case Circuit Breaker, 600 VAC, 300 A, 50/60 Hz Frequency, 42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC Interrupt, L Frame, Magnetic Trip, 1500 to 3000 A Trip, 3 Pole, 3 ph, Line/Load Lugs Connection, 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Unit Mounting, -13 to 158 deg F, 11 in H x 6 in W x 5.84 in D Dimensions
LAP36300 Application
Panelboards and Switchboards ApplicationsLAP36300 Item Features
- https://www.youtube.com/watch?v=5oM8IMwBJns&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
LAP36300 Standards
UL 489 File No. E10027|CSA C22.2 File No. 5-02 File No. LR7551|IEC 60947-2|Federal Specification W-C-375B|RoHS Compliant|PROP65: This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2408811Part Number #LAP36300UNSPSC39121616UPC00785901423980
