Part Number # LH36350
SKU # 2466200
LH36350
Schneider Electric LH36350
Part Number # LH36350
SKU # 2466200
Square D (Schneider Electric) LH36350 Key Features
| Brand: | Square D (Schneider Electric) |
|---|---|
| Part Number # : | LH36350 |
| SKU #: | 2466200 |
| Dimensions: | 4 in L x 6 in W x 12-1/2 in H |
| Frame: | H |
| Interrupt Rating: | 25/35/50/65 kA |
| Trip Range: | 1750 to 3500 A |
| Wire Size: | (1) 1 AWG to 600 kcmil, (2) 1 AWG to 250 kcmil Al/Cu |
| Connection type: | I-Line Lug |
| UNSPSC: | 39121616 |
| UPC: | 00785901339427 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric LH36350
Brand: Square D (Schneider Electric)
Part Number: LH36350
Square D™ I-Line™ Molded Case Circuit Breaker, 600 VAC, 250 to 500 VDC, 350 A, 50/60 Hz Frequency, 25/35/50/65 kA Interrupt, H Frame, Thermal/Magnetic Trip, 1750 to 3500 A Trip, 3 Pole, I-Line Lug Connection, (1) 1 AWG to 600 kcmil, (2) 1 AWG to 250 kcmil Al/Cu Wire, 4 in L x 6 in W x 12-1/2 in H Dimensions
Additional Description: SQD -LH36350 MOLDED CASE CIRCUIT BREAKER 600V 350A
Catalog Description: Circuit breaker, LH, I-Line mount, 350A, 3 pole, 25kA, 600VAC, thermal magnetic
LH36350 Application
For I-Line panelboards and switchboards applicationsLH36350 Item Features
- Thermal magnetic protection up to 350A at 600VAC
- Interrupting rating of 25kA at 600VAC
- LH circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole
- I-Line on the line side and lugs on the load side
LH36350 Standards
RoHS Compliant|UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2466200Part Number #LH36350UNSPSC39121616UPC00785901339427

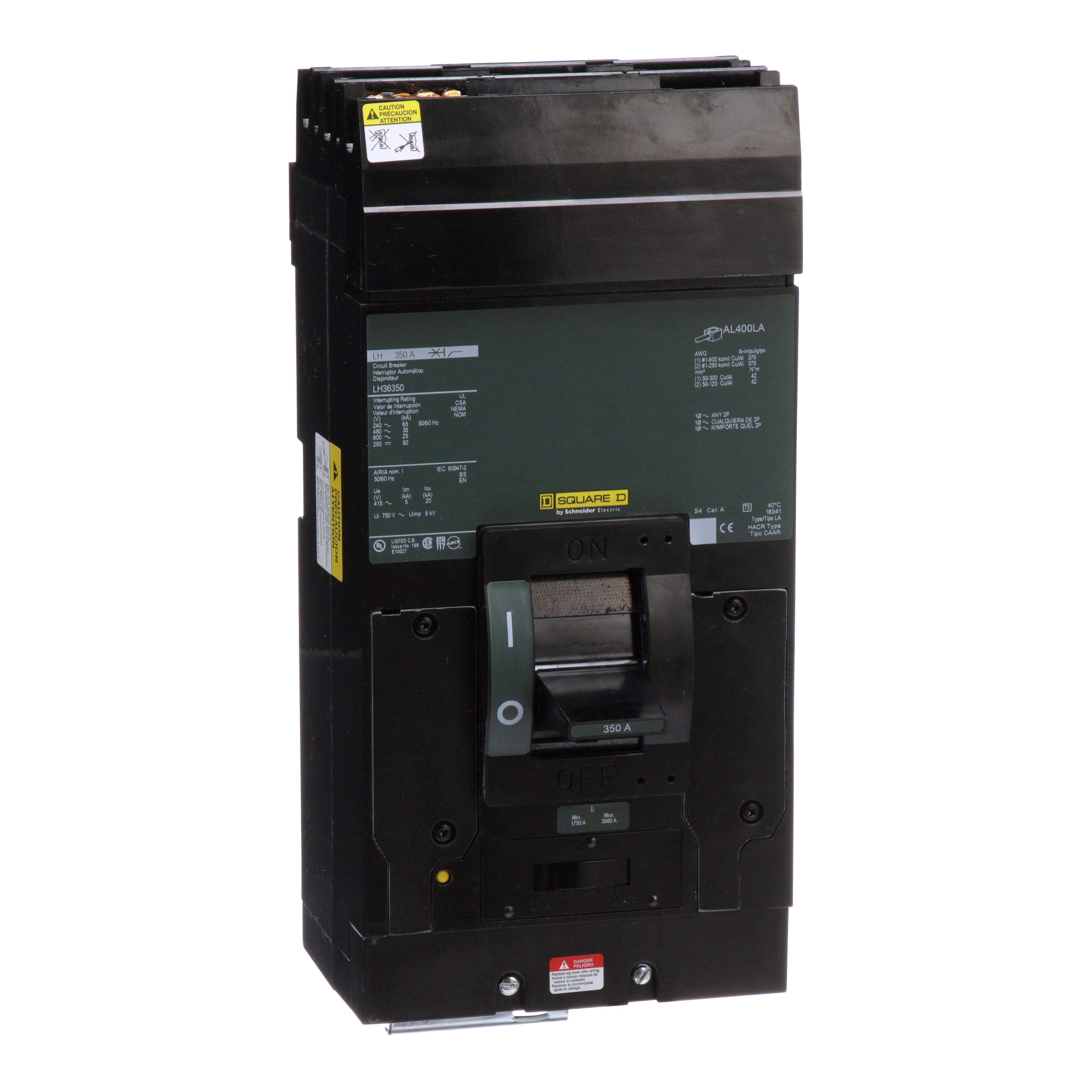

Image provided may only be a representation of final product and may include optional equipment
