Part Number # LLM36000S40X
SKU # 2456470
LLM36000S40X
Schneider Electric LLM36000S40X
Part Number # LLM36000S40X
SKU # 2456470
Square D LLM36000S40X Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | LLM36000S40X |
| SKU #: | 2456470 |
| Actuator Type: | Rotary Handle |
| Amperage Rating: | 400 A |
| Dimensions: | 13.38 in H x 5.51 in W x 4.33 in D |
| Frame: | L Frame |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC/50 kA at 500 VDC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 104 deg F |
| Trip Range: | 4800 A |
| Trip Type: | Electronic |
| Type: | Automatic |
| Wire Size: | 2/0 AWG to 500 kcmil |
| Connection type: | Line Side Lug |
| Country of origin: | US |
| Mounting type: | Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901093442 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric LLM36000S40X
Brand: Square D
Part Number: LLM36000S40X
Schneider Electric PowerPact™ Molded Case Switch, Automatic, 600 VAC, 400 A, 50/60 Hz Frequency, 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC/50 kA at 500 VDC Interrupt, L Frame Frame, Micrologic Trip, 4800 A Trip, 3 Pole, 3 ph, Rotary Handle Actuator, Line Side Lug Connection, 2/0 AWG to 500 kcmil Wire, Unit Mounting, 104 deg F, 13.38 in H x 5.51 in W x 4.33 in D Dimensions
Additional Description: SQD -LLM36000S40X AUTOMATIC MOLDED CASE SWITCH 600V 400A
Catalog Description: Automatic switch, PowerPacT L, 400A, 3 pole, 600VAC, 50kA, lugs, magnetic
LLM36000S40X Application
Construction, Commercial Buildings, Oil, Gas, Industrial Buildings, Water Wastewater and Data Center ApplicationsLLM36000S40X Item Features
- To open and close a circuit under normal operating conditions
- Can make and break its rated current
- Factory set nonadjustable trip point to protect the molded case switch
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/embed/xbXWcq35EIo
LLM36000S40X Standards
RoHS Compliant|CE Certified|CSA Certified|IEC Certified|CCC Certified|UL Listed|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2456470Part Number #LLM36000S40XUNSPSC39121616UPC00785901093442

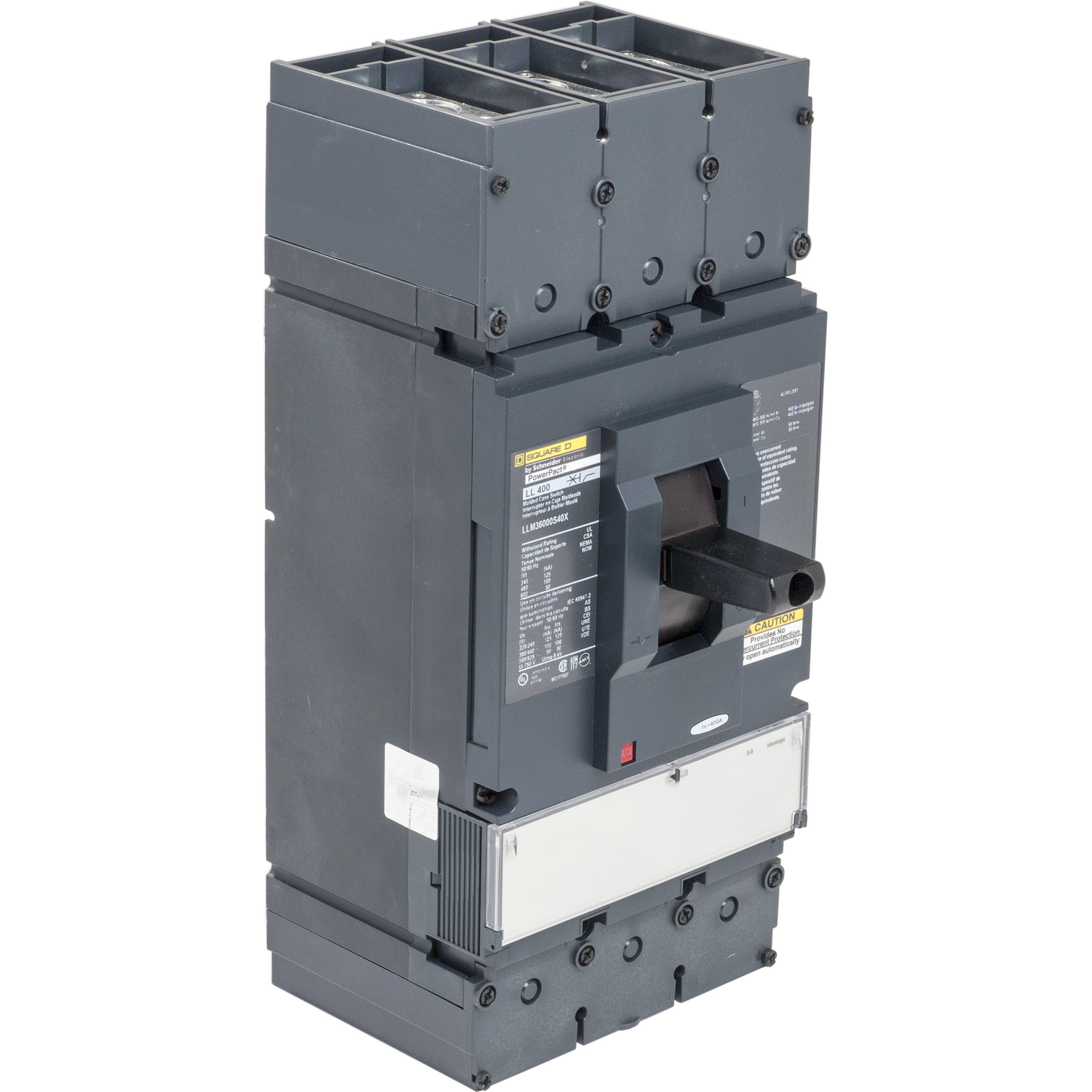

Image provided may only be a representation of final product and may include optional equipment
