Part Number # QBP32150TM
SKU # 2457859
Image Disclaimers Message
QBP32150TM
Schneider Electric QBP32150TM
Part Number # QBP32150TM
SKU # 2457859
Schneider Electric QBP32150TM Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | QBP32150TM |
| SKU #: | 2457859 |
| Actuator Type: | Toggle |
| Amperage Rating: | 150 A |
| Dimensions: | 3.93 in L x 4.5 in W x 6.47 in H |
| Enclosure Type: | NEMA AB1-1999 |
| Frame: | Q |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 104 deg F |
| Trip Range: | 1200 to 2400 A |
| Trip Type: | Thermal Magnetic |
| Type: | Type QB |
| Wire Size: | 4 AWG to 300 kcmil Al/Cu |
| Connection type: | ON/OFF End Lug |
| Country of origin: | MX |
| Mounting type: | Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121616 |
| UPC: | 00785901620020 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric QBP32150TM
Brand: Schneider Electric
Part Number: QBP32150TM

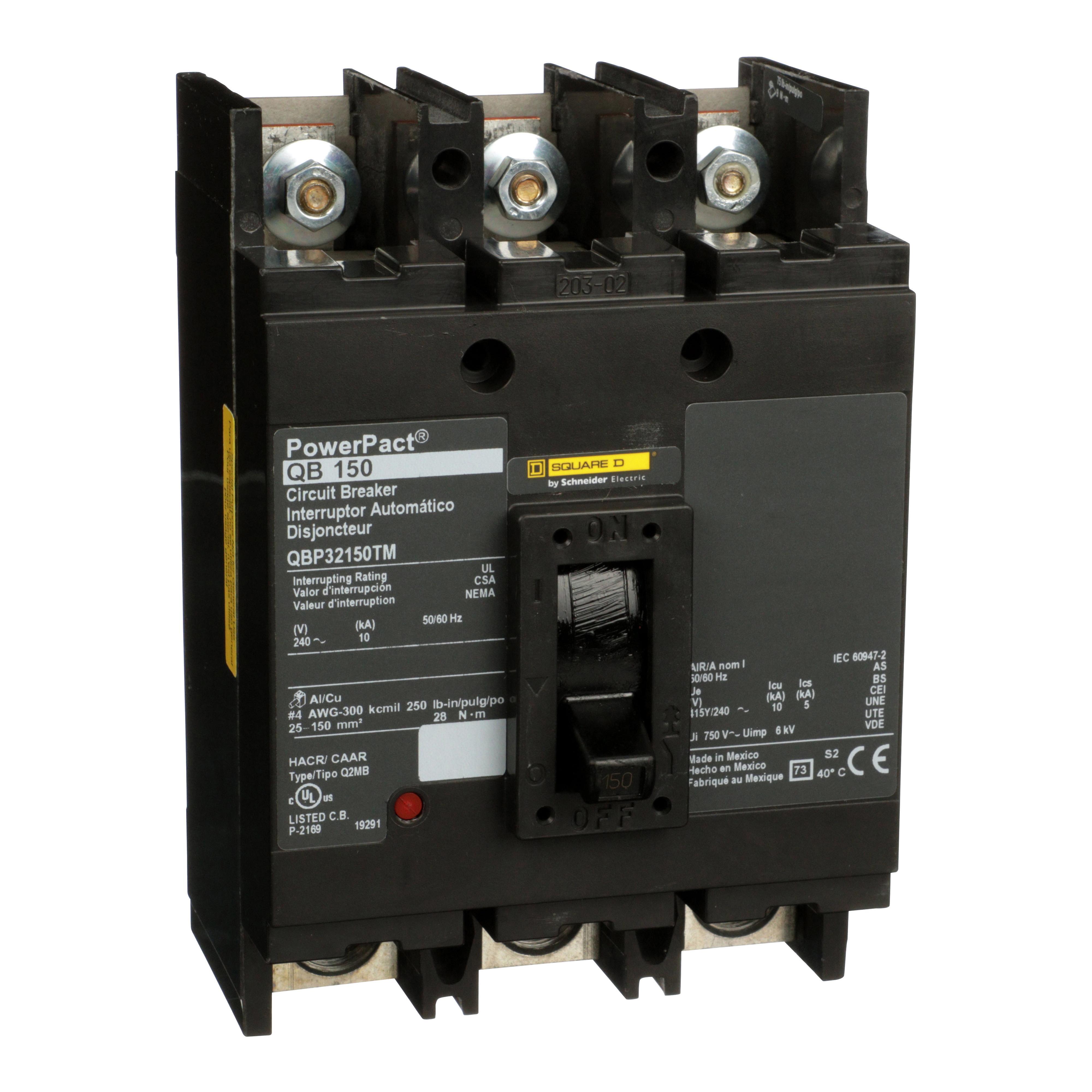

Square D™ PowerPact™ Q Molded Case Circuit Breaker, Type QB, 240 VAC, 150 A, 50/60 Hz Frequency, 10 kA Interrupt, Q Frame, Thermal/Magnetic Trip, 1200 to 2400 A Trip, 3 Pole, 3 ph, Toggle Actuator, ON/OFF End Lug Connection, 4 AWG to 300 kcmil Al/Cu Wire, NEMA AB1-1999 Enclosure, Unit Mounting, 104 deg F, 3.93 in L x 4.5 in W x 6.47 in H Dimensions
Additional Description: SQD -QBP32150TM MOLDED CASE CIRCUIT BREAKER 240V 150A
Catalog Description: Circuit breaker, PowerPacT Q, 150A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, bottom of panel
QBP32150TM Application
For metering breakers, overcurrent protection and switching on AC systemsQBP32150TM Item Features
- Available in 2 or 3 pole design
- Common accessories across the range
- Confidence and power reliability
QBP32150TM Standards
UL 489 File No. E84905|CSA C22.2 No. 5-02 File No. E84905|NMX-J-266-ANCE-2002|IEC Certified|PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.govSKU #2457859Part Number #QBP32150TMUNSPSC39121616UPC00785901620020
